Product Details

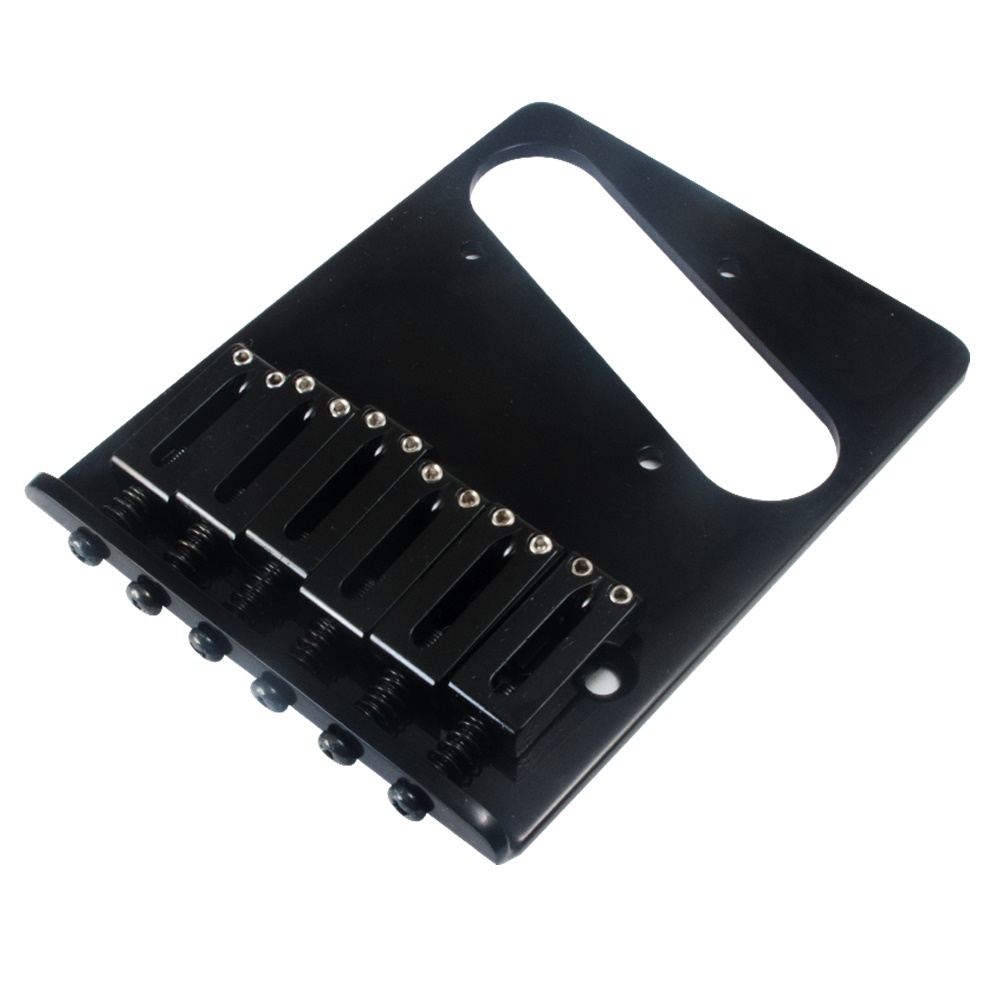

A beefier version of the traditional Tele bridge, featuring sixcompletely adjustable saddles for string height, radius, and intonation.
For use with a Tele bridge pickup and through-body string attachment.This is a heavier bridge with a solid brass baseplate andallen-adjustable brass saddles. Mounting screws included.
String spread 2-1/8" (53.97mm)
Saddle dimensions
Width 13/32" (10.32mm)
Length 15/16" (23.81mm)
Height 7/32" (5.56mm)
Use a 1.5mm allen wrench for saddle height adjustment.
Baseplate dimensions 4" x 3-1/8" (101.60mm x 79.38mm)
Four mounting screw holes have 2-9/16" (65.09mm) center-to-centerspread.
