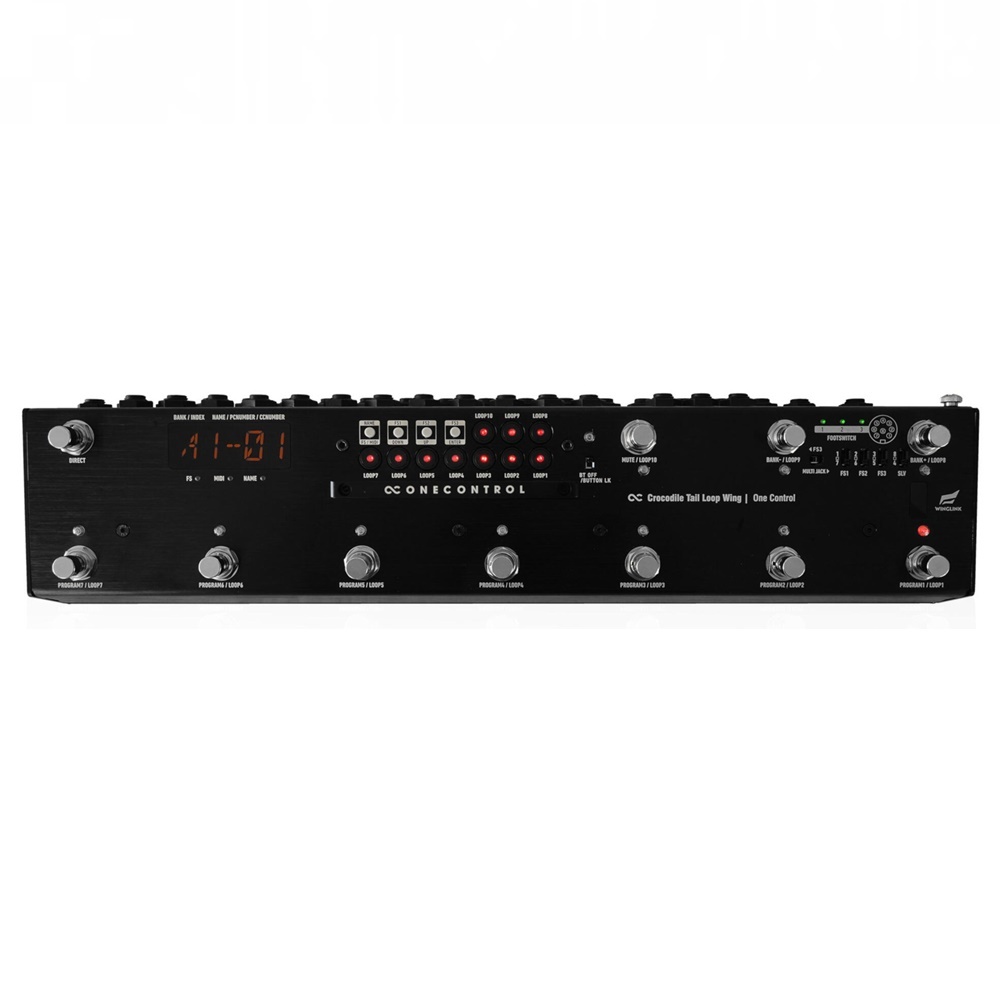

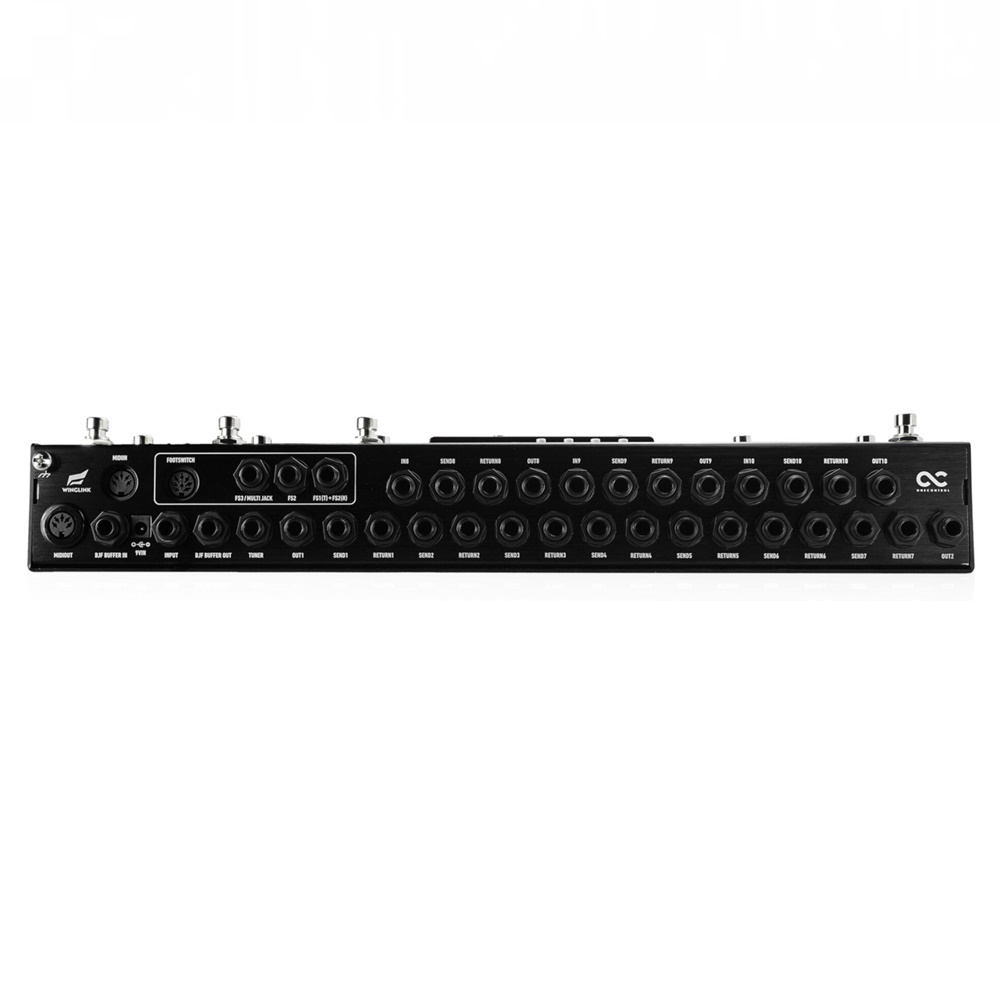

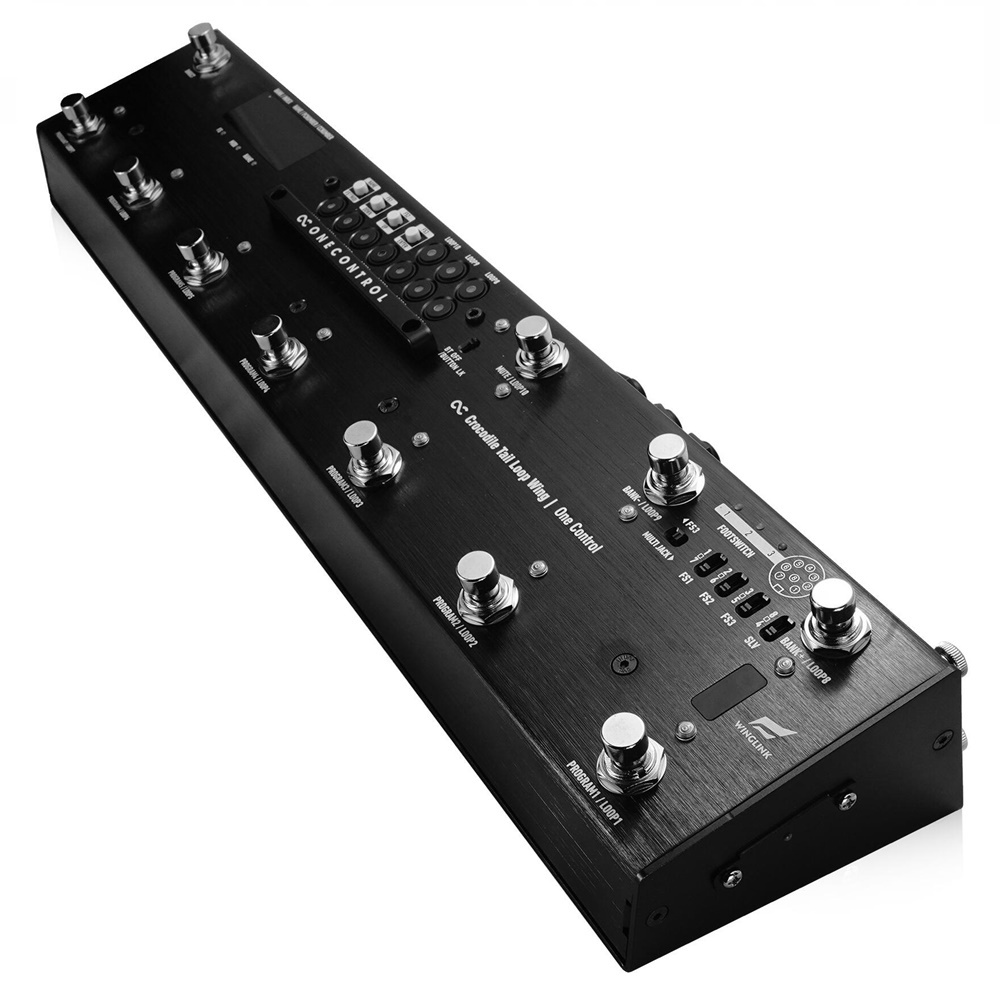

The Crocodile Tail Loop Wing (OC10W) is the culmination of user feedback, tech advancements, and real-world experience that One Control have gathered from designing and manufacturing some of the best loop switchers in the music industry for over a decade now. In addition, this is the first loop switcher from One Control that can be programmed and controlled via Bluetooth by using the iOS app called Winglink! The OC10W features the BJF Buffer circuit (designed by Björn Juhl) to keep your signal pristine, or you can choose to go completely true bypass. Seven mono loops in a serial order allow you to switch in and switch out any of your favorite effects pedals with no loss in tone or dynamics to your signal. Three parallel effects loops follow the seven serial loops, giving the user up to ten programmable switchable loops. Tuner Out with mute switch is available as well, to keep you in tune and your audience happy. Full MIDI control is available, with the capability to control amplifier channel and reverb switches as well as amplifier effect loops if desired via the FS connections. Three FS switches are available (TRS connections) as well as an 8-pin DIN connector. 168 MIDI presets are available for programming and can be called up via footswitch or by MIDI program change messages. The OC10W can easily be switched to manual mode and used to simply switch loops in and out easily with the tap of a footswitch. Easy Bluetooth connectivity with the Winglink iOS app allows the user to control and program the OC10W remotely. It’s easy to program loops and setups on your iPhone or iPad in any of the 168 programmable memory slots. Use the Winglink app to archive your settings for different projects, live shows, or recording sessions. Take your pedalboard to the next level with the One Control OC10W Crocodile Tail Loop Wing!


  • programmable 10-channel true bypass loop switcher for effects pedals
  • footswitches provide control over 10 independent loops and a separate tuner output
  • easy and intuitive programming
  • Winglink iOS app allows the user to control and program the OC10W remotely
  • 168 presets (24 banks, 7 programs per bank)
  • 2 selectable switching modes (Program Mode, Direct Mode)
  • built-in BJF buffer circuit with independent inputs and outputs
  • 7 serial loops and 3 separate loops
  • 3 separate footswitch outputs and 8-pin DIN connector for amp channel switching
  • fully MIDI capable with MIDI Out and MIDI In
  • true bypass
  • 11 footswitches (PGM1/L1, PGM2/L2, PGM3/L3, PGM4/L4, PGM5/L5, PGM6/L6, PGM7/L7, Bank Up/L8, Bank Dn/L9, Mute/L10, Direct)
  • 10 buttons for preset programming
  • 5 switches configure the amp footswitch section
  • 4 multi-function buttons
  • Bluetooth On/Off switch
  • status LEDs
  • metal housing
  • 6.3 mm mono in / output jacks
  • 5-pin MIDI in / output
  • power supply via optional 9V DC adapter, 2.1 x 5.5 mm barrel plug, polarity (-) center
  • battery operation not supported
  • current draw max. 400 mA
  • dimensions (L x W x H) 100 x 440 x 64 mm / 3.94" x 17.32" x 2.51"
  • weight 1.34 kg / 2.95 lbs
SKU OC-10W
Barcode # 818996013177
Brand One Control
Unit Of Measure ea
