Features

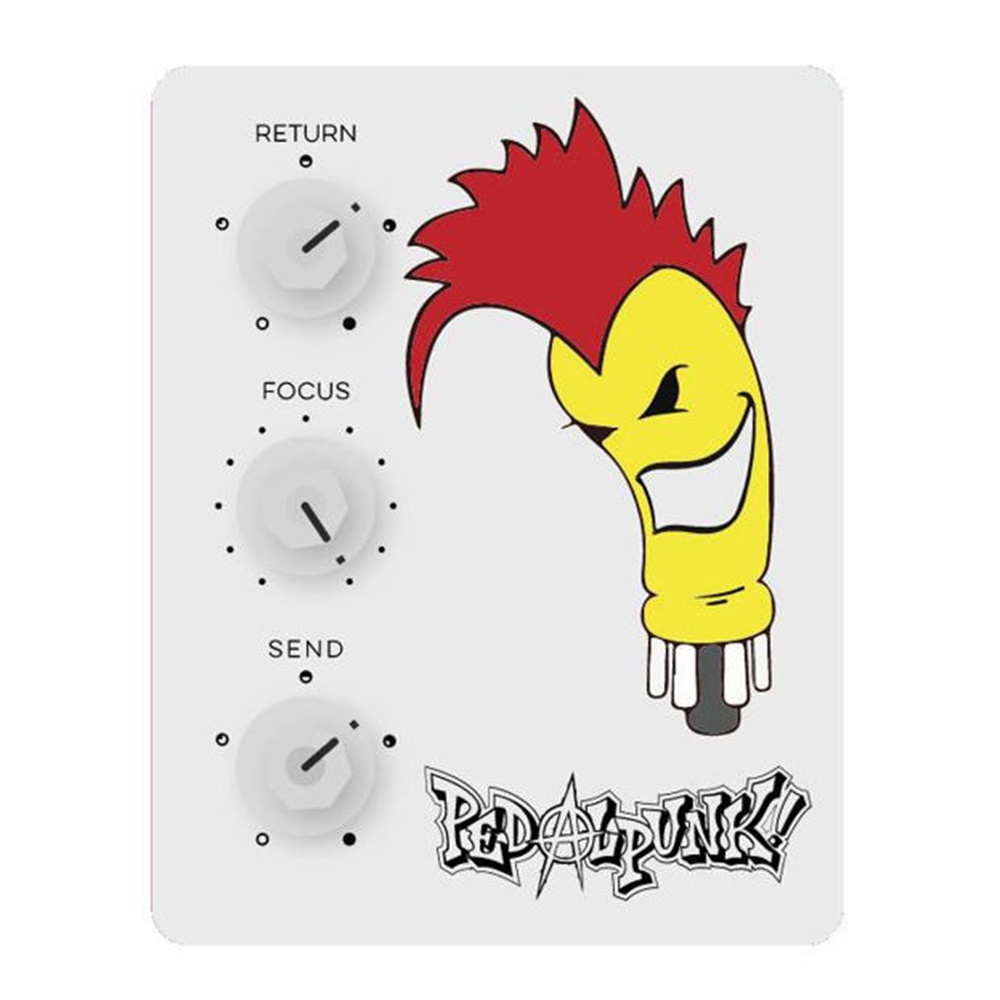

Return Knob

Returns processed signal from pedals plugged into the unbalanced return jack to both balanced output XLR and RS jacks
Higher Settings will Overdrive the unit adding desirable sonic grit + attitude to your sound

Focus Knob

Adjusts input impedance of the signal at the send jack to your pedals
Input impedance is nominal when this knob is fully clockwise
Focus' effect becomes more apparent when used with non-buffered, true-bypass fuzz and distortion pedals
Useful when multiple PedalPunks are used in stereo, dual or multi-mono configuration

Send Knob

Send the signal appearing at the balanced input XLR/TRs combo jack to the unbalanced send jack which is connected to your pedals
Higher setting will overdrive PedalPunk's custom-wound input transformers, adding harmonic distortion + Attitude to your sound

9vDC Jack

Use only the supplied 9vDC center-pin negative adapter

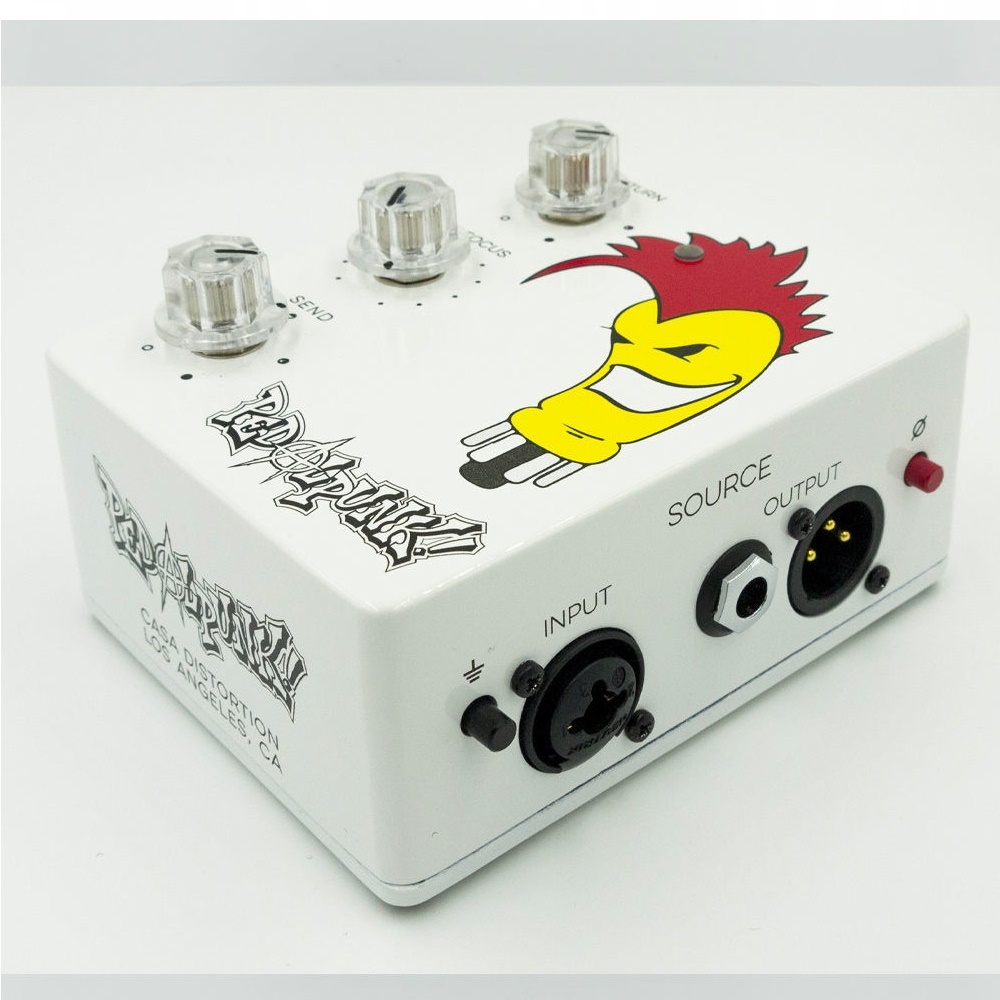

Source Input

Equipped with a single gold-plated neutrik XLR + 1/4" TRS combo connector for maintaining absolute fidelity when connecting to your balanced audio equipment
Connect the audio to be processed here

Source Output
Choose between gold-plated neutrik XLR or bronze 1/4" TIRS cable from either of these jacks directly into your recording software's audio interface

Return
Connect output of your last pedal here

Send
Connect input of your first pedal here
