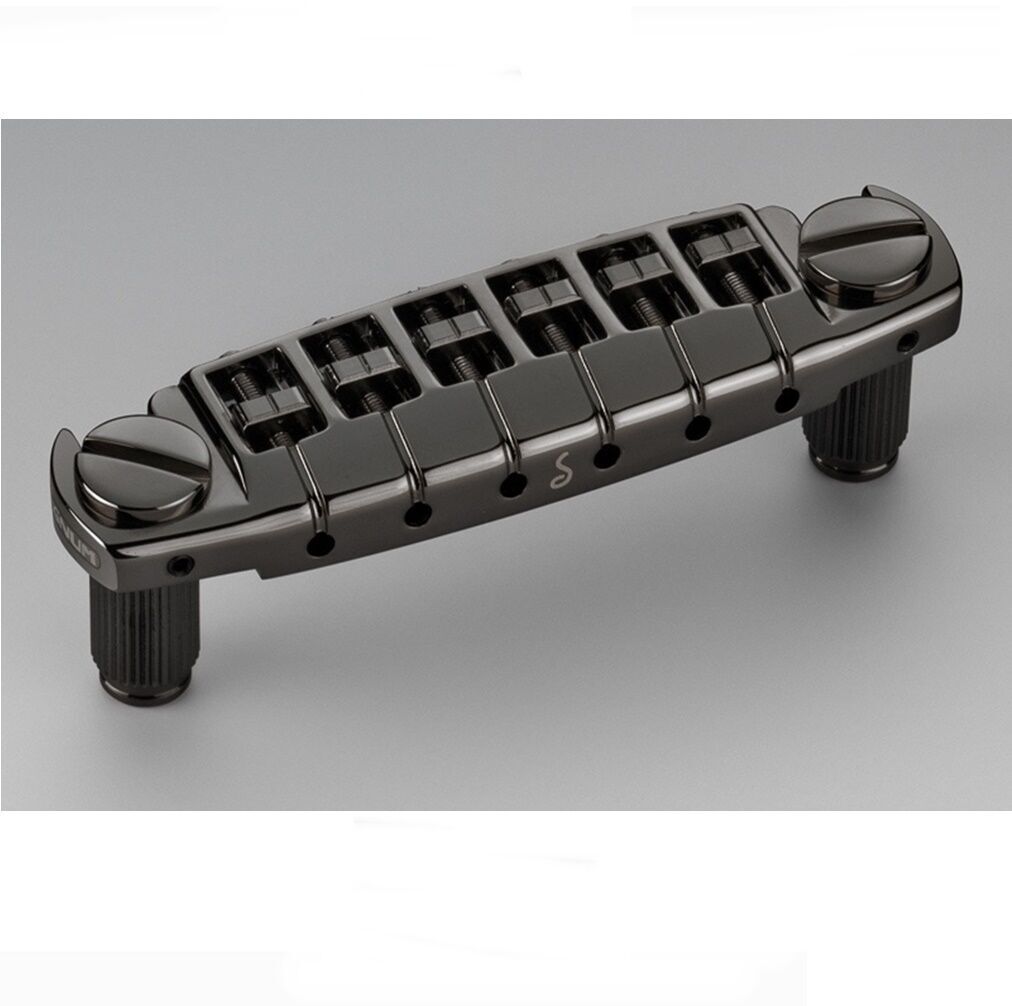

Introducing the all new Schaller Signum locking bridge.

Designed to boost your guitar’s sound, playability and looks.
  • Special design locking studs for tight connection and perfect sound coupling
  • Superb tonal definition by state-of-the-art string saddle shaping
  • Perfect natural resonance resulting in rich dynamics, sustain and overtones
  • Top surface elements designed for unparalleled playing comfort
  • Vast intonation space of 9 mm string saddle travel
  • Meticulously designed break and pressure angles
  • Optimized string-through-bridge routing for effortless restringing
  • Rectangular ballend retainer holes to prevent untwisting ballends
  • Elegance and versatility for all guitar styles
  • Weight: 91g
  • Weight incl. locking studs and bushings: 131g
  • press-in bushing and height adjustment screws M8
  • additionally height adjustment screws inch

We deliver inserts and studs metric and additional studs imperial/inch in case you have already inserts imperial/metric in your guitar.

___________________________________________________________________________

Includes:
  • 1 Signum Locking Wraparound Bridge
  • 2 Signum Locking studs
  • 2 Signum Locking stud bushings
  • 1 Signum Locking key, ergonomically shaped for trouble-free locking
  • 2 pairs different lengths Allen screws (6 mm / 10 mm) for flawless visual appearance; with the 6 mm pair pre-installed
  • 1 Allen key
  • pair HVS 5/16" 24UNF

Suitable for curved and flat guitar tops alike.

New die-cast zinc with machined special-design brass saddles.

With its sleek design and unique construction details Signum’s G/D string height above body can be adjusted as low as 13.20 mm (0.520“)

string radius: 12“string spacing individual: 0.413“ (10.5 mm)string spread E to E: 2,067“ (52.5 mm)post spacing: 3.22“ (81.8 mm)weight: 0.198 lbs. (0.90 kg)minimal G/D string height above body: 0.520“ (13.2 mm)

Features

  • Model: 2-dimensional
  • Support: Locking studs
  • Surface: BlackChrome
  • Measurements l x w x h (mm): 100x23,9x13,1
  • Weight g/item: 91
  • Bore mm: 11

Item number12350400

SKU 12350400
Brand Schaller
Unit Of Measure ea
