Description

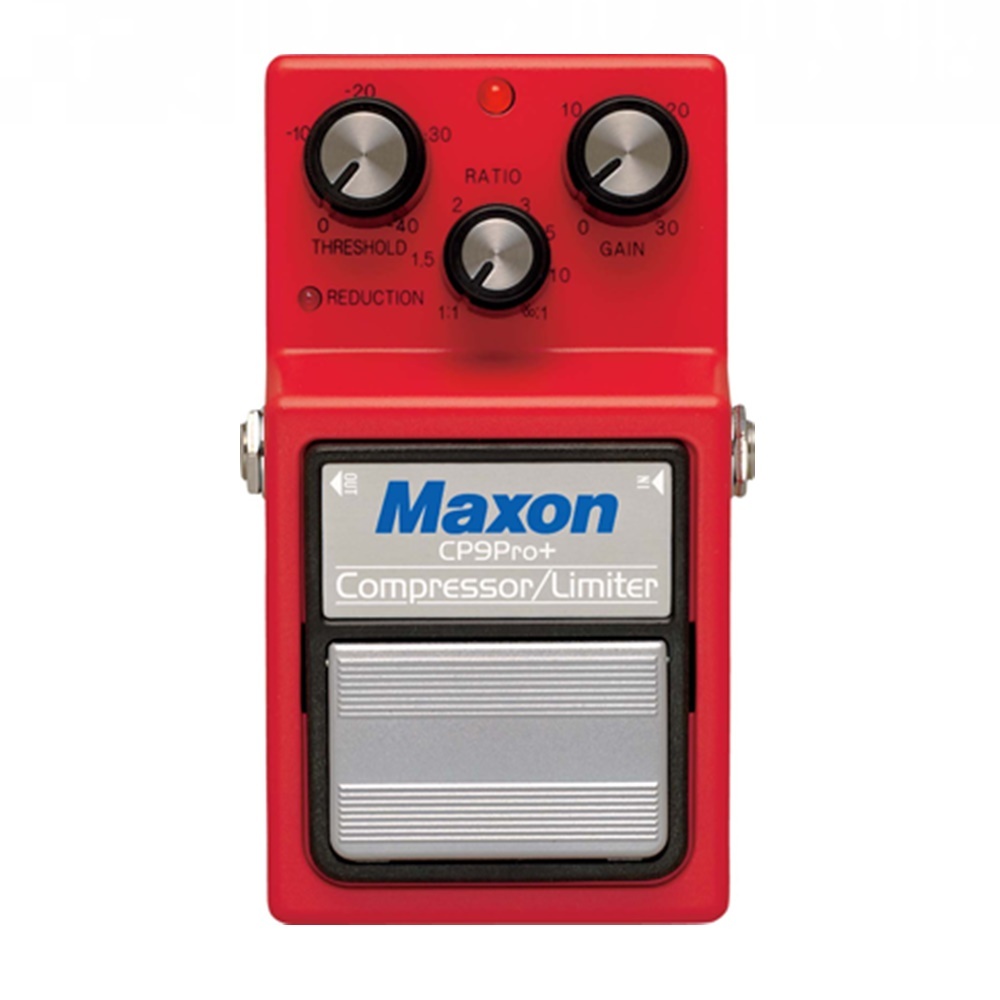

Maxon CP9 PRO+ Compressor Pedal

The Maxon CP9 PRO+ Compressor Pedal is that rarity of rarities, a compressor with tons of squash that does not color your guitar tone or create excessive noise.

The CP-9 circuit provides a very smooth, transparent, almost “glassy” compression with an extremely low noise floor, even at maximum settings.Your guitar sounds like your guitar, only with a smoother, more balanced dynamic response. Notes jump off the fretboard with stunning clarity and limitless yet controlled sustain.

The CP-9’s internal voltage doubler provides massive headroom with full-range frequency reproduction. It can be used with any instrument and for a variety of applications – send into an amp’s front end, place in a loop, or use as an outboard processor for home recordings.

With up to +30 dB of clean Gain, the Maxon CP-9 Pro Compressor can also be used as a straight clean booster or as a volume attenuator to clean up an already dirty amp by reducing input level.

The Maxon CP-9 Pro Compressor provides studio-grade compression in a portable stompbox format – you’ll wonder how you ever played without it!

Input Impedance: 500K Ohms
Input Jack: 1/4 inch standard phone jack
Output Impedance: 10K Ohms or less
Output Jack: 1/4 inch standard phone jack
Output: 1 Switch: Normal/Effect (true bypass configuration)
Maximum Output Level: +18 dBu (1 KHz)
Controls:
THRESHOLD: 0 dBu TO -40 dBu
RATIO: 1:1 to ?:1
GAIN: 0 dB to +30 dB
Distortion Ratio: 0.01% (1 kHz) at 0 dB output
Residual Noise: 95 dBu (input shorted, IHF-A weighted)
Indicator: Normal/Effect LED, Reduction LED (when reduction LED lights, Compression is more than 3 dB)
Internal Circuit Voltage: Stabilized +/-9V DC-DC converter
Power Supply: 9V Manganese dry cell battery (6F22) or special AC adaptor
Power Voltage: DC9 V (Battery) / DC10 V (AC-adaptor)
Current Consumption: 25 mA (9 V) / 23 mA (10 V) at 18 volts
Battery Life:
Panasonic NEO battery 6F22NB
Approximately 5.1 Hours @ 77 deg F / 25 Deg C
Panasonic Alkaline battery 6LF61G
Approximately 12.4 hours @ 77 deg F / 25 deg C
AC Adaptor: AC210N (option) Input: AC120V Output: DC9V/200 mA Center – / Sleeve +) - NOT INCLUDED
Dimensions (whole): 74 mm (W) x 124 mm (D) x 54 mm (H)
Weight: 580 g Accessories: 9V Manganese dry cell battery (S-006P) x 1
Warranty Card: x 1
User’s Manual: x 1
