Key Features:
  • High power 7x 10W 4-in-1 LEDs
  • RGBW colour mixing
  • 7 or 12 Channel DMX mode
  • Adjustable strobe speed
  • 0-100% Dimmer
  • DMX and Stand-alone mode
  • Master/Slave function
  • Reset function

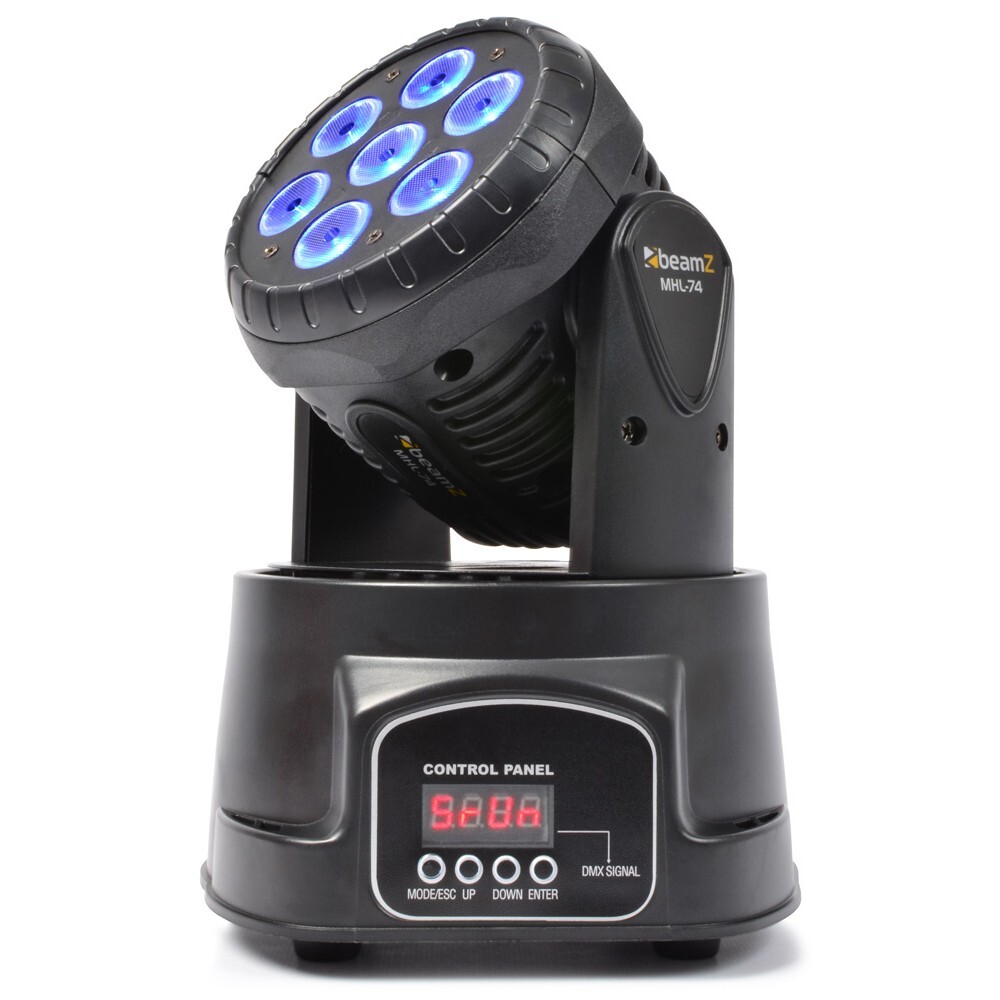

  • LED display and control panel

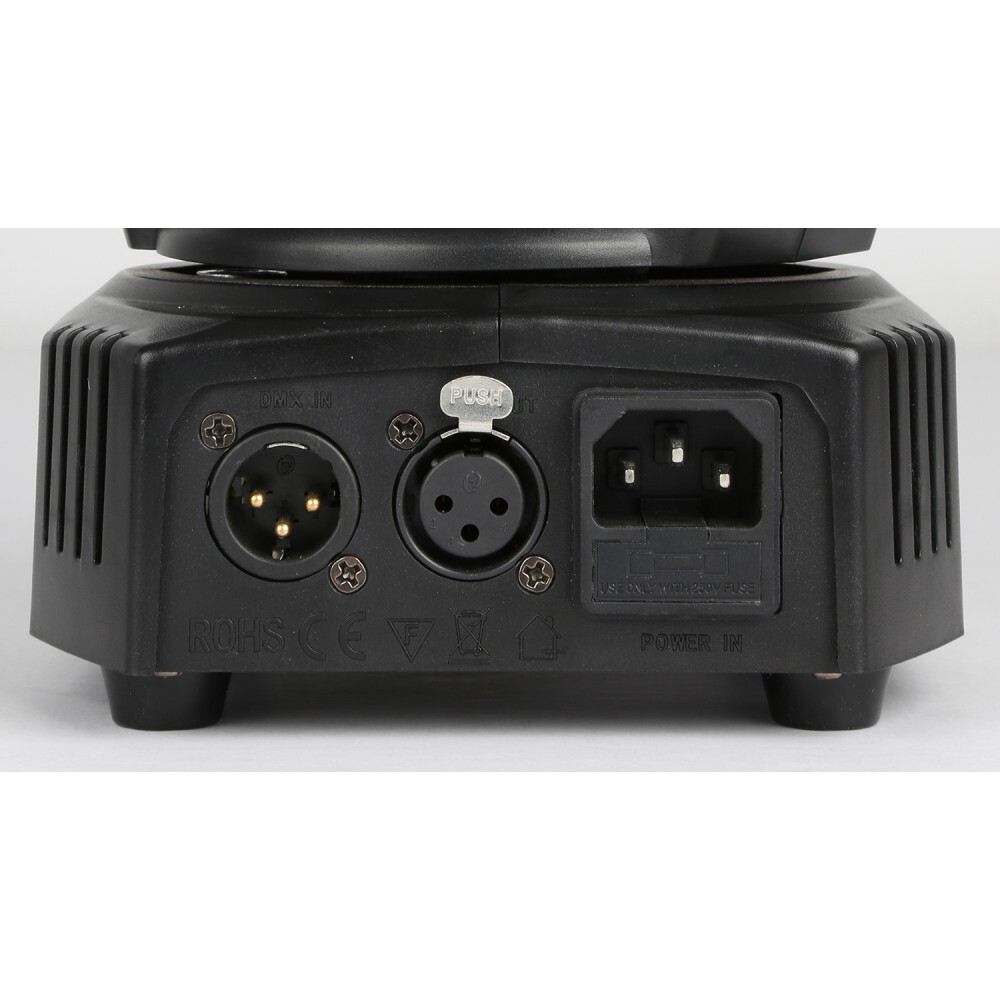

  • DMX in/output via 3-pin XLR

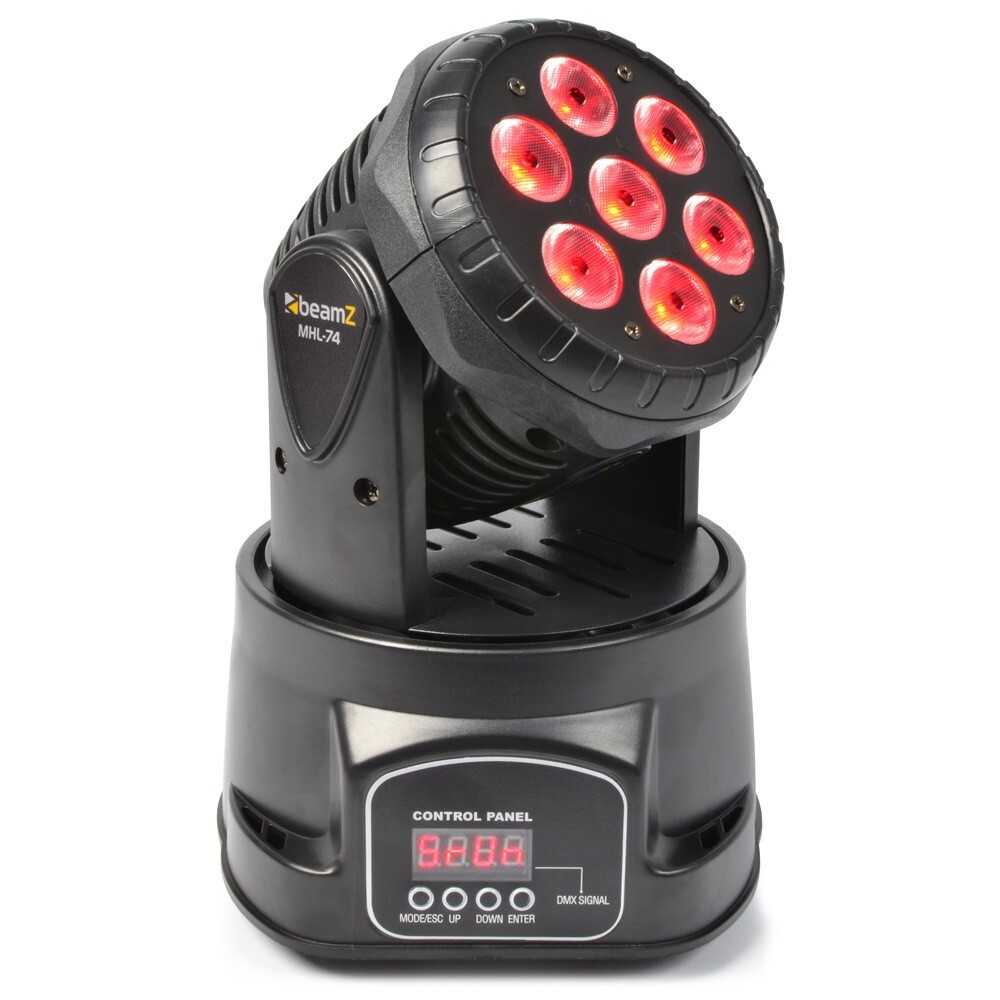

A very compact LED moving head wash for professional use in theatres, pro-stage, concerts, discos etc, Based on 7x 10W 4-in-1 LEDs for extremely high light output to produce an ingenious light show with a perfect colour mix. Comes with a 15° beam angle, 7 and 12-Channel DMX mode, colour strobe, electronic dimmer etc. Smooth but extremely fast 540° Pan and 180° Tilt movements.

Technical Data



Light source 4-in-1 LED
LED colours Red, Green, Blue, White
LED power 10W
Quantity of LEDs 7
Beam angle 20°
Field angle 40°
Illuminance 8.000 lx @ 1m
Pan Range 540°
Tilt Range 180°
Modes Automatic programs, DMX
DMX channels 7, 12
DMX connector 3-pin XLR
Power Plug IEC
Power consumption 80W
Power supply 220-240VAC 50Hz
Dimensions (L x W x H) 175 x 175 x 240mm
Weight 3.4kg



SKU MHL74
Brand BEAMZ
Shipping Weight 2.3000kg
Shipping Width 0.305m
Shipping Height 0.080m
Shipping Length 0.260m
