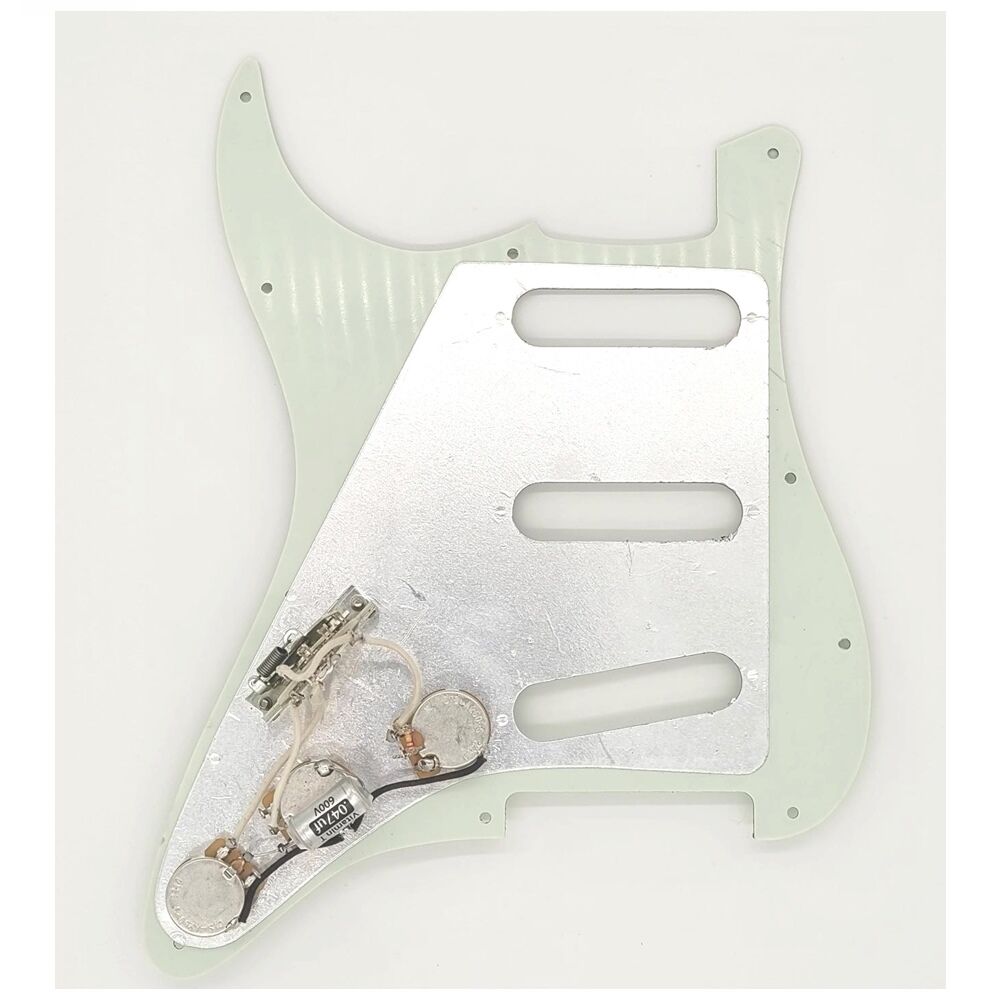

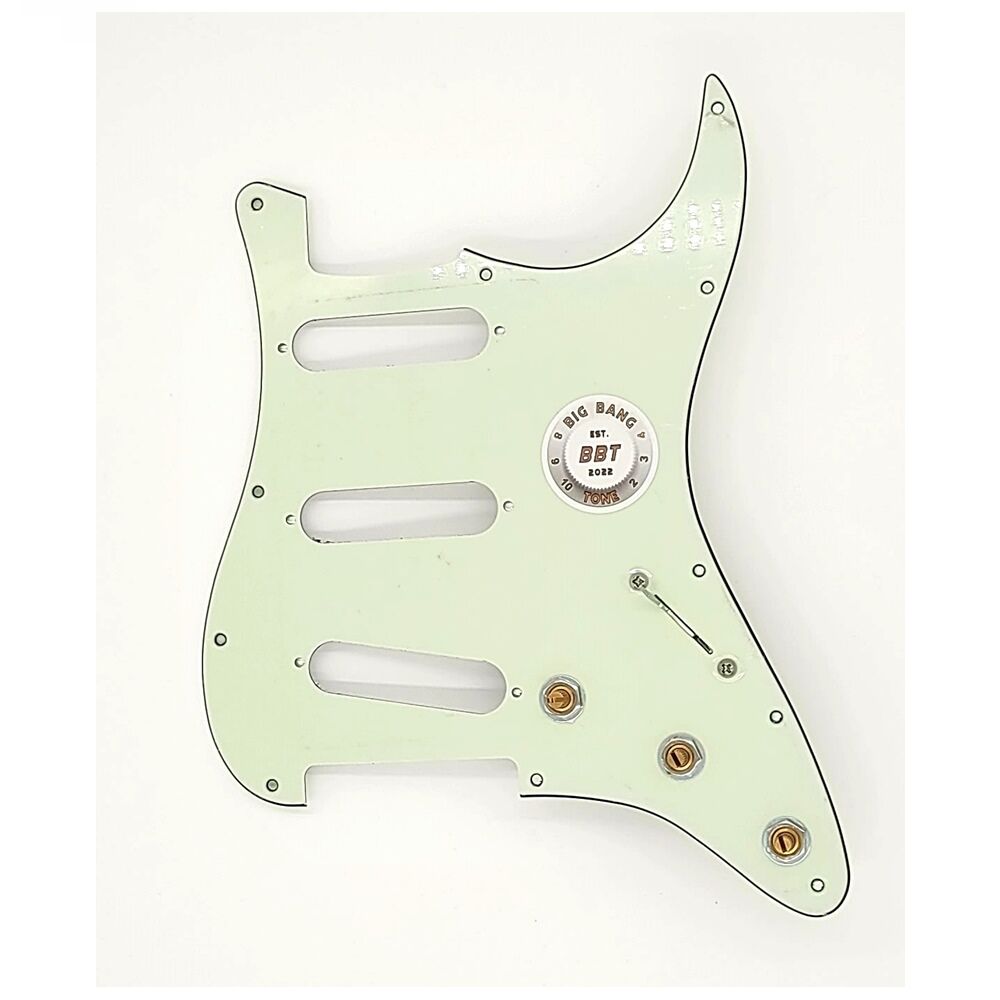

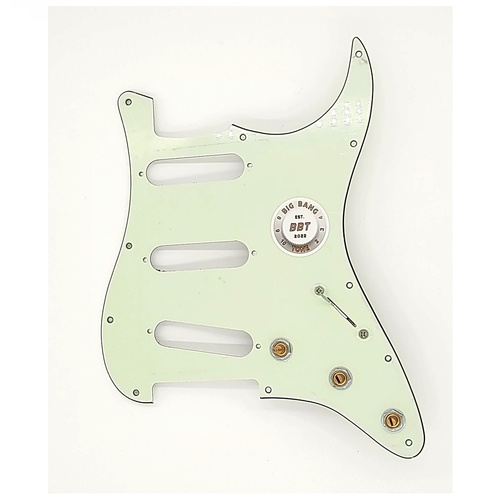

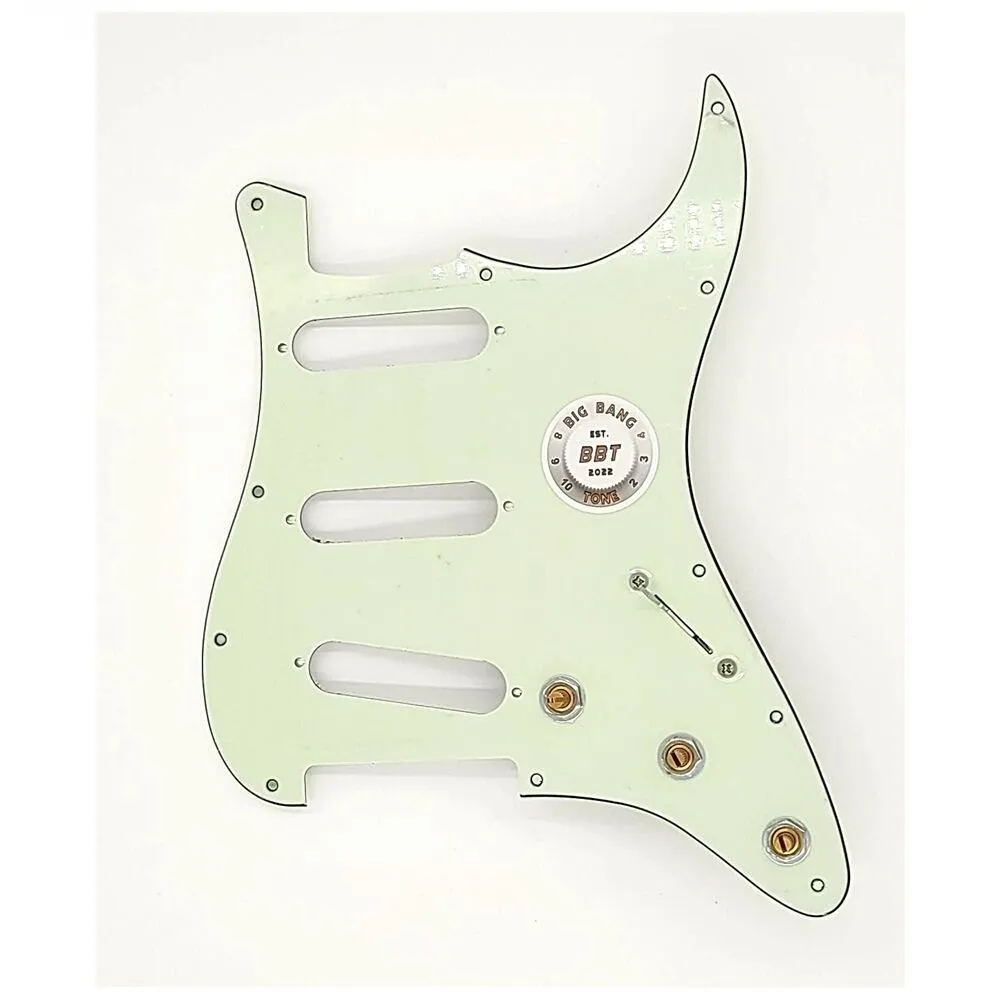

A Premium Prewired 5-way Control Pickguard  for your Strat - Mint Green

Upgrade your guitar's switching system with the BBT Custom 5-way Prewired Kit for Fender Stratocaster and other guitars. This kit's premium components include precision-made potentiometers, an CRL 5-way switch, an Vitamin T .047uF 600V Oil Filled Capacitor, a Treble Bleed mod to keep your tone from getting muddy when you turn down the volume, and a Switchcraft input jack. They have been prewired and soldered so you can drop them in your guitar with minimal work. Every BBT Custom pot is hand-metered in-house and falls within +/- 8% tolerance. Guitarists  know that every component in your guitar affects your sound - improve tone and control feel with the BBT Custom 5-way Prewired Kit for Fender Stratocaster and other guitars.

BBT Custom 5-way Prewired Kit for Fender Stratocaster Features at a Glance:

  • Prewired 5-way kit with pots, caps, switch, and output jack
  • 250Kohm pots with smooth audio taper across its whole range
  • Treble Bleed mod retains clarity when turning your volume down
  • Premium Vitamin T .047uF 600V Oil Filled Capacitor
  • Quality components will last a long time
  • Fits most Mexican and American Fender Stratocaster guitars
  • Proudly Asembled in Australia, using only the finest materials

Custom CTS 'USA spec' 250K Precision Audio Taper Pot.

The CTS precision audio taper gives you smoother and more accurate response than you'll get with economy pots. Features longer life brass shaft and tighter resistance tolerance.

These 'short shaft' pots are specifically suited to direct mounting onto pickguards and control plates.

Specs:

- USA spec thread: 3/8" x 32.
- 3/8" (9.5mm) diameter brass threaded collar.
- 24 spline (fine) brass split shaft.
- Includes 1 x nut, 1 x dress washer and 1 x lock washer.

 Vitamin T capacitor

The most important vitamin of them all! Vitamin "T" oil filled capacitors are handmade one at a time for that perfect tone. These are special musical capacitors designed specifically for guitars and amplifiers to give a lush and creamy top end with lots of clarity. .022uf is recommended for humbuckers and .047uf is recommended for single coils.

The Original CRL Switch - Made in USA. 5-way version of the switch used in guitars from the early '50s all the way into the '90s.

Still made by CRL, these are improved versions of the originals. The contacts on the older switches would sometimes work loose and rotate, making contact where they weren't supposed to and rendering the switch non-functional. These newer switches have punched notches in the phenolic to prevent this. As a result, these are essentially lifetime switches, you will probably never have to replace one

Switchcraft 1/4" Mono 2 Conductor Jack with Nut and Washer

The Switch11 from Switchcraft is a 1/4" open-circuit mono 2-conductor jack with nut and washer — everything you need to replace a bad jack or for building your own instrument! Switchcraft is a trusted company here at our shop for their quality products and durable designs.

BBT 3 Ply Pickguard for USA / Mexican Strats

11 Screw Holes ( screws not included )



SKU BBTS5250K-MG
Brand BIG BANG TONE
Unit Of Measure ea
