Product Information

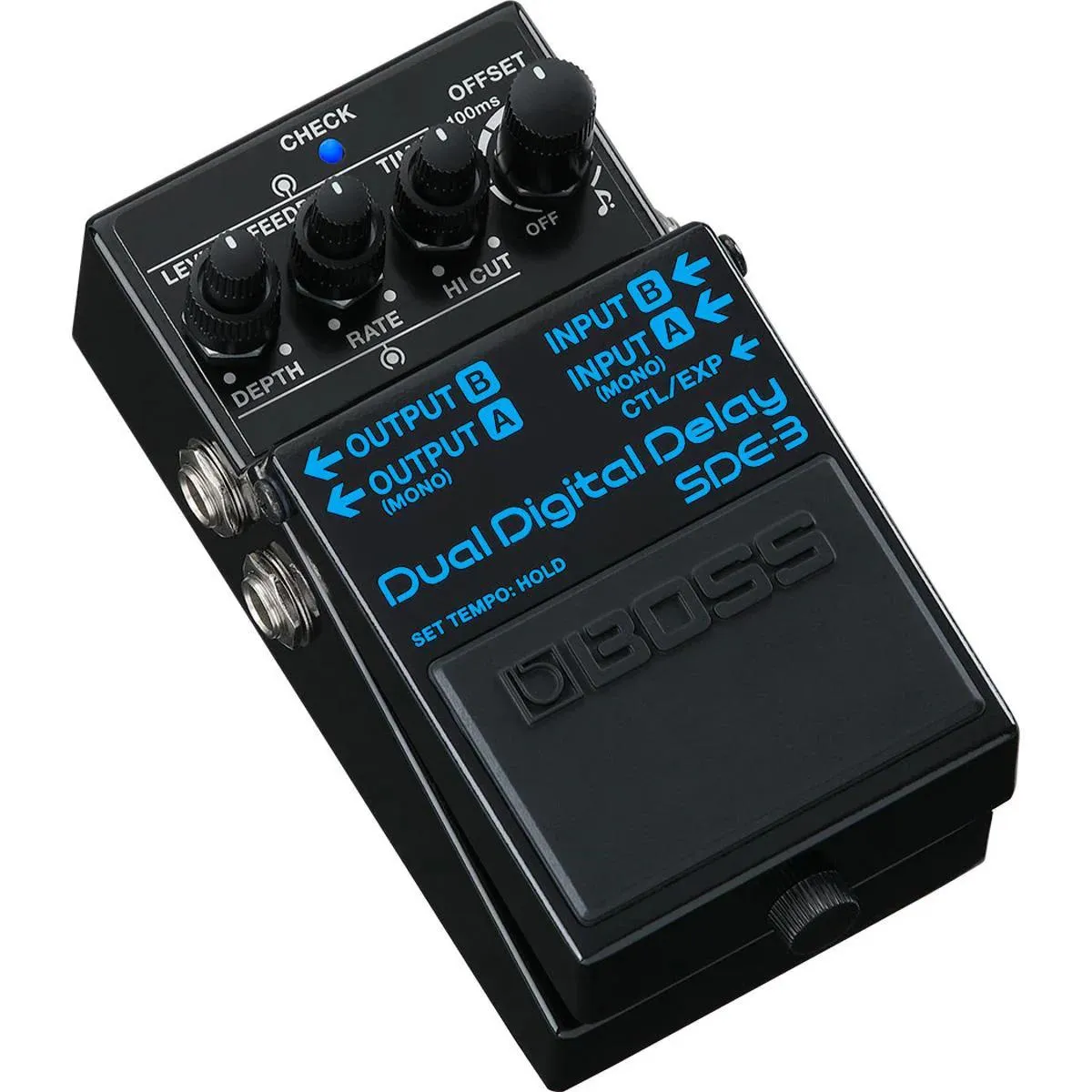

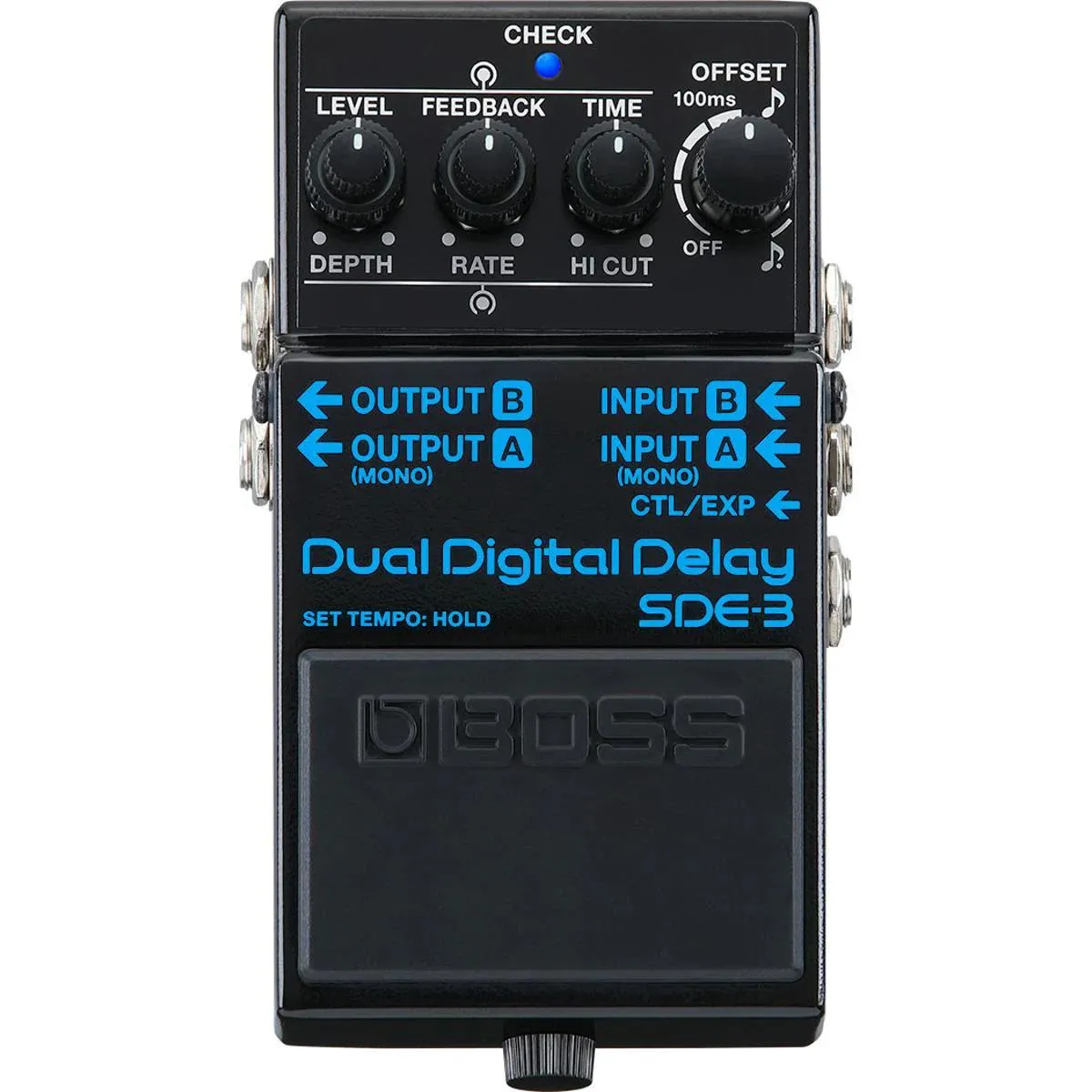

The SDE-3 fuses vintage digital character and wide-ranging versatility into one unique and inspiring BOSS compact pedal. Experience the genuine sound and core features of the Roland SDE-3000, an iconic ’80s-era rackmount delay favored by some of the most influential guitarists of all time. Flow into any creative setup with a slate of modern features. And twist the powerful Offset control to explore an array of colorful dual-delay textures.

Features

• The iconic character of the Roland SDE-3000 rackmount delay in a BOSS compact pedal
• Beautiful vintage digital delay tones with expanded creative range
• Distinctive modulation with independent Rate and Depth knobs
• Hi Cut control for shaping the high-frequency amount
• Variable Offset feature for creating unique sounds with a secondary delay line
• Adjustable maximum delay time: 800 ms (mono/stereo) or 1600 ms (mono)
• Two stereo delay options: panning and discrete stereo
• Versatile output modes: stereo, wet/dry, and dry mute (mono or stereo)
• Tap tempo and carryover functions
• Jack for extended control with up to two footswitches or an expression pedal

Specifications

CONTROLS

• TIME knob
• FEEDBACK knob
• LEVEL knob
• DEPTH knob
• RATE knob
• HI CUT knob
• OFFSET Knob
• Pedal switch
• CARRYOVER switch

INDICATOR

• CHECK indicator (Used for indication of Tempo and check battery)

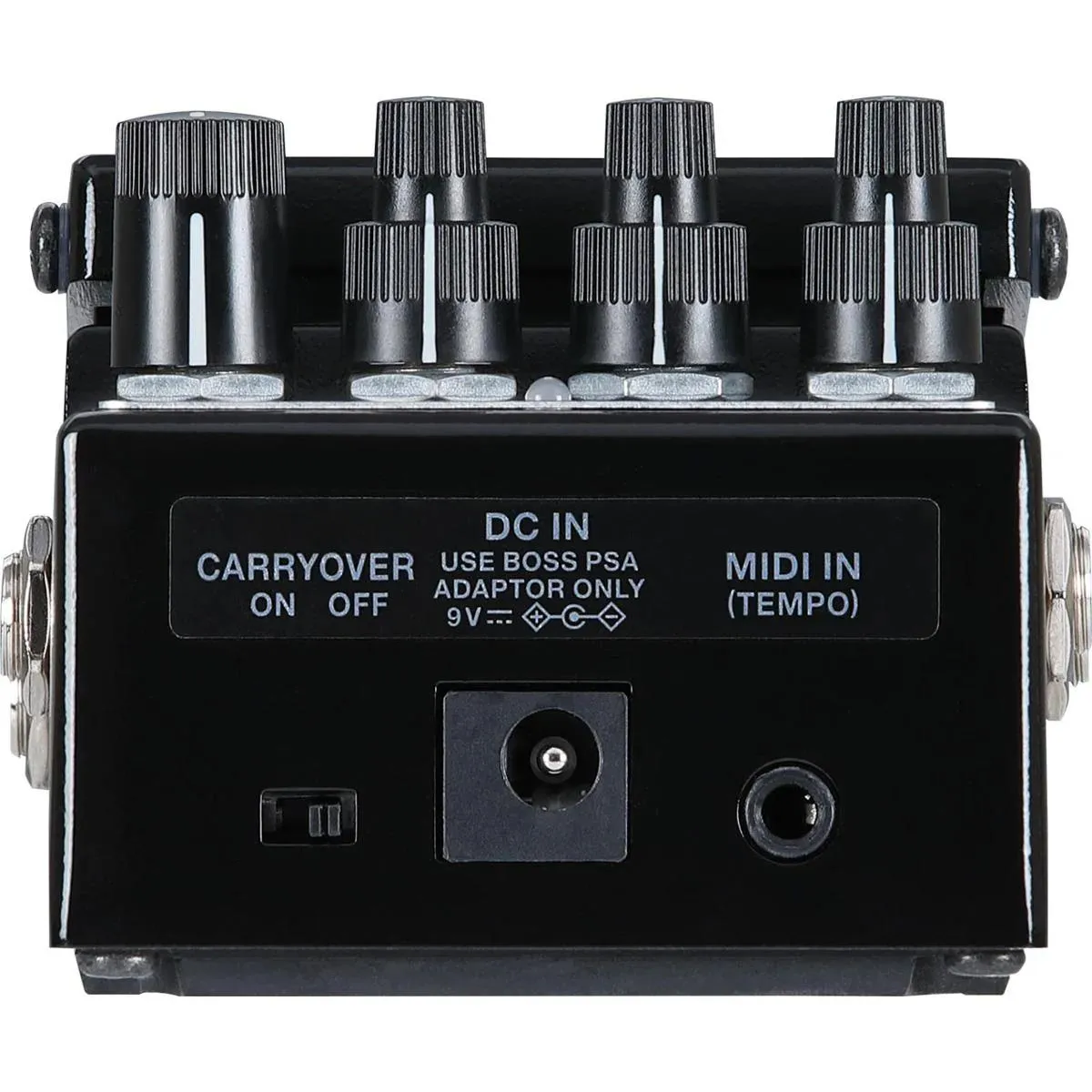

CONNECTORS

• INPUT A (MONO) jack, INPUT B jack, OUTPUT A (MONO) jack, OUTPUT B jack: 1/4-inch phone type
• CTL/EXP jack: 1/4-inch TRS phone type
• DC IN jack
• MIDI IN jack: Stereo miniature phone type

POWER SUPPLY

• Alkaline battery (9 V, 6LR61 or 6LF22, commercially available)
• AC adaptor (PSA series: sold separately)

CURRENT DRAW

• 75 mA

EXPECTED BATTERY LIFE UNDER CONTINUOUS USE

• Alkaline: Approx. 4.5 hours
• *These figures will vary depending on the actual conditions of use.
