Key Features:

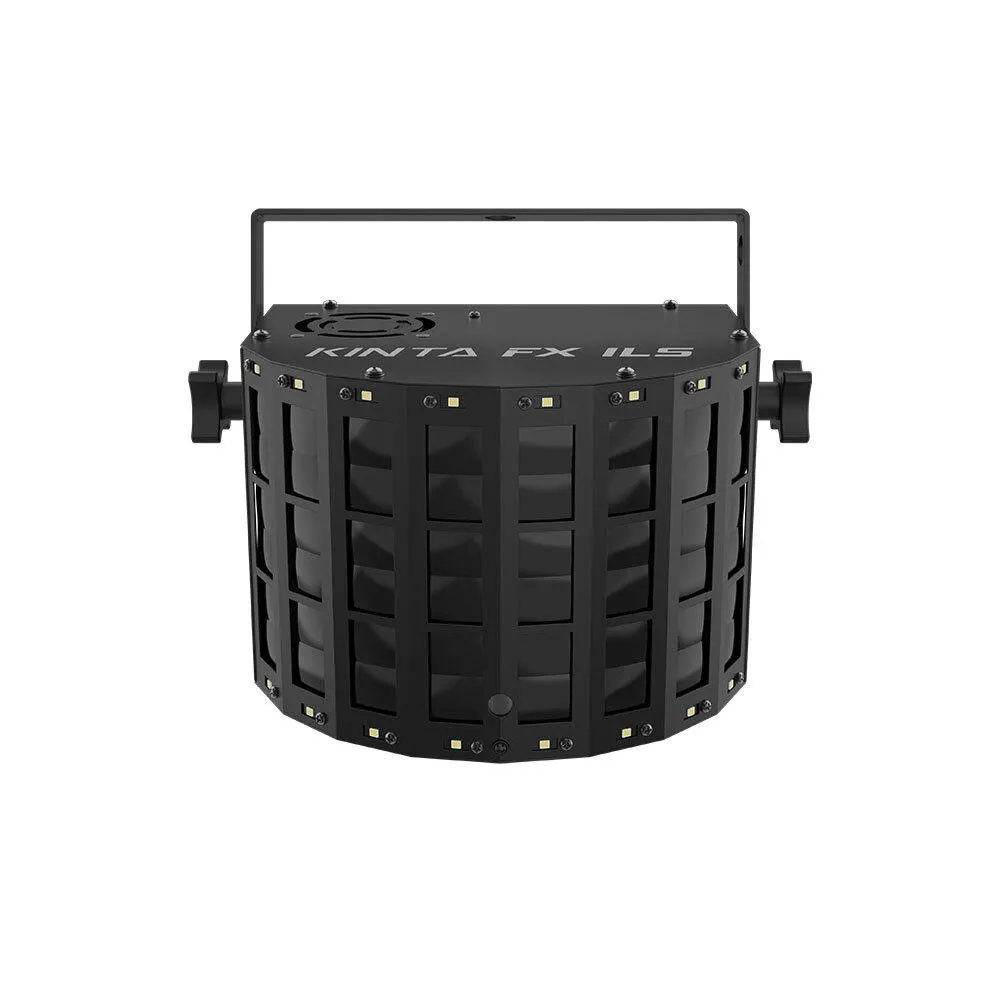

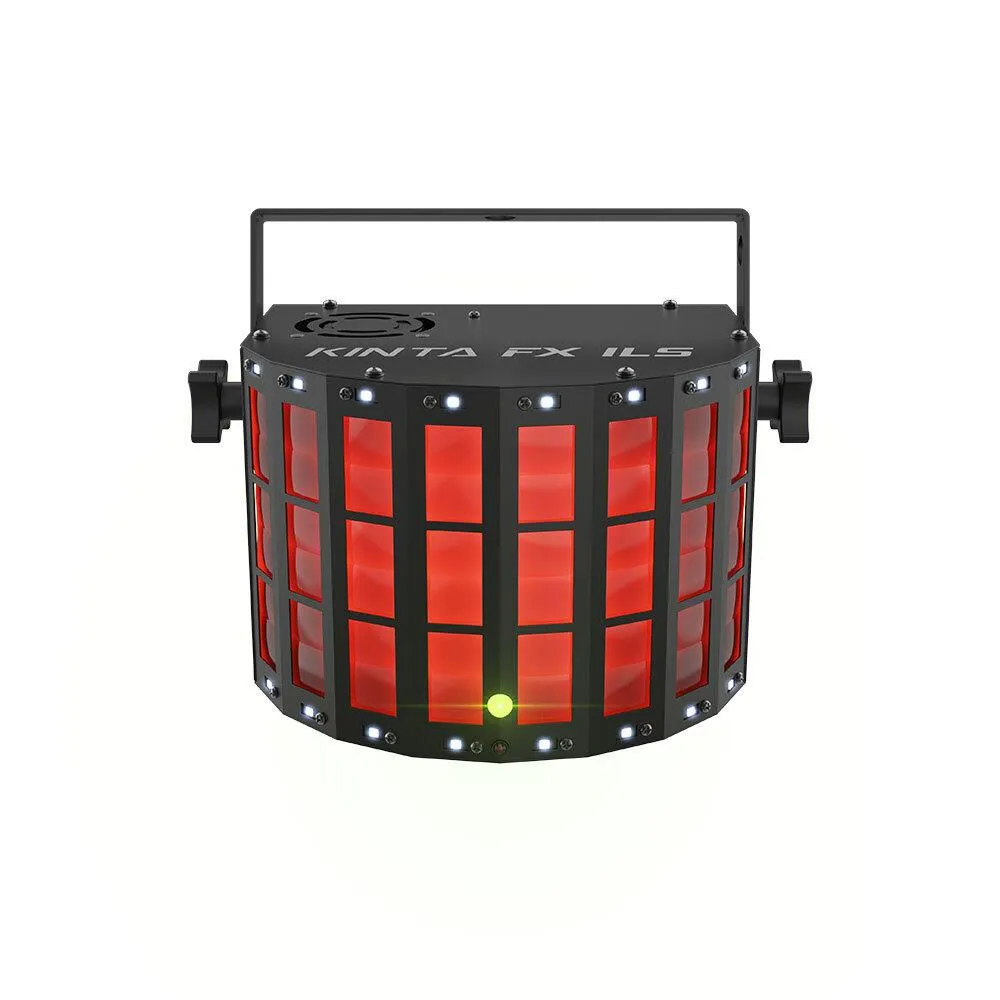

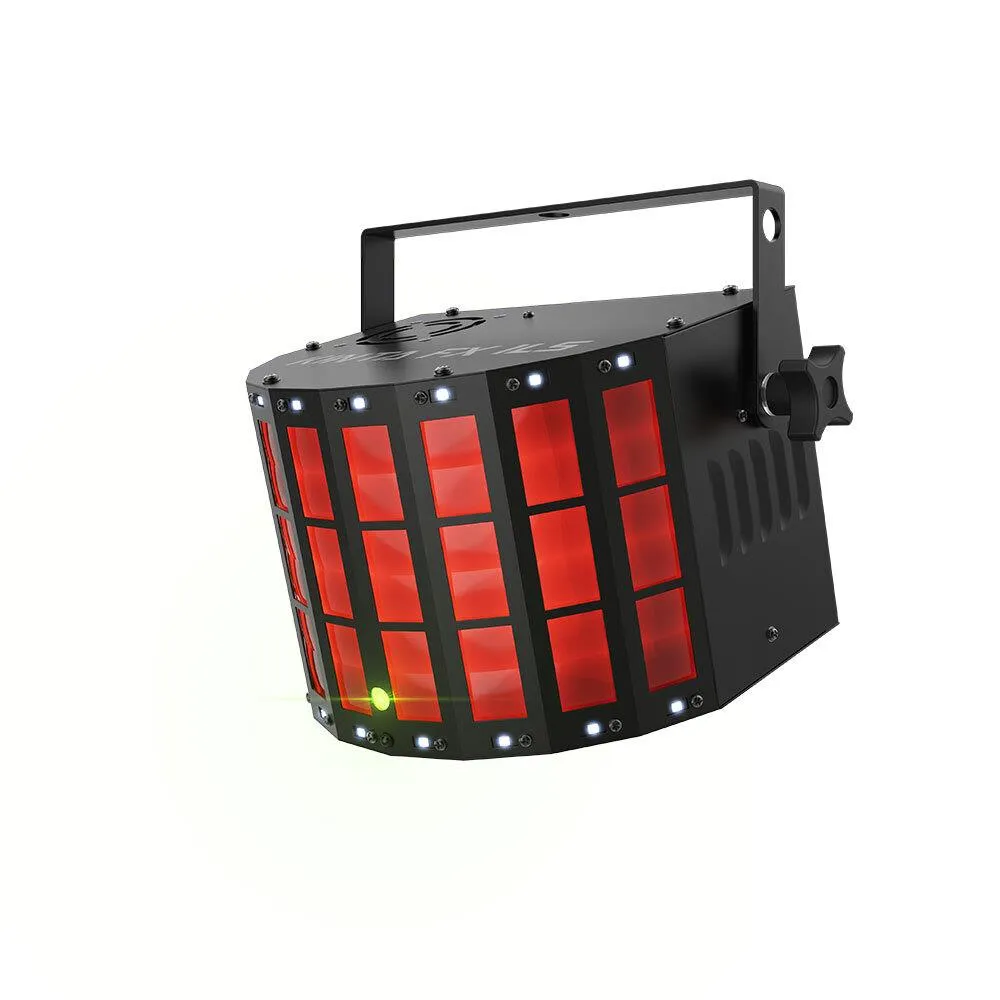

  • Compact multi-effect with a Kinta, laser, and SMD strobe
  • D-Fi USB compatibility for wireless Master/Slave or DMX control
  • Integrated Lighting System (ILS) compatible with wireless connection via D-Fi USB
  • Projects countless razor-sharp multi-colour beams
  • SMD strobes produce eye-catching strobe effects and chases
  • Red and green laser casts hundreds of beams

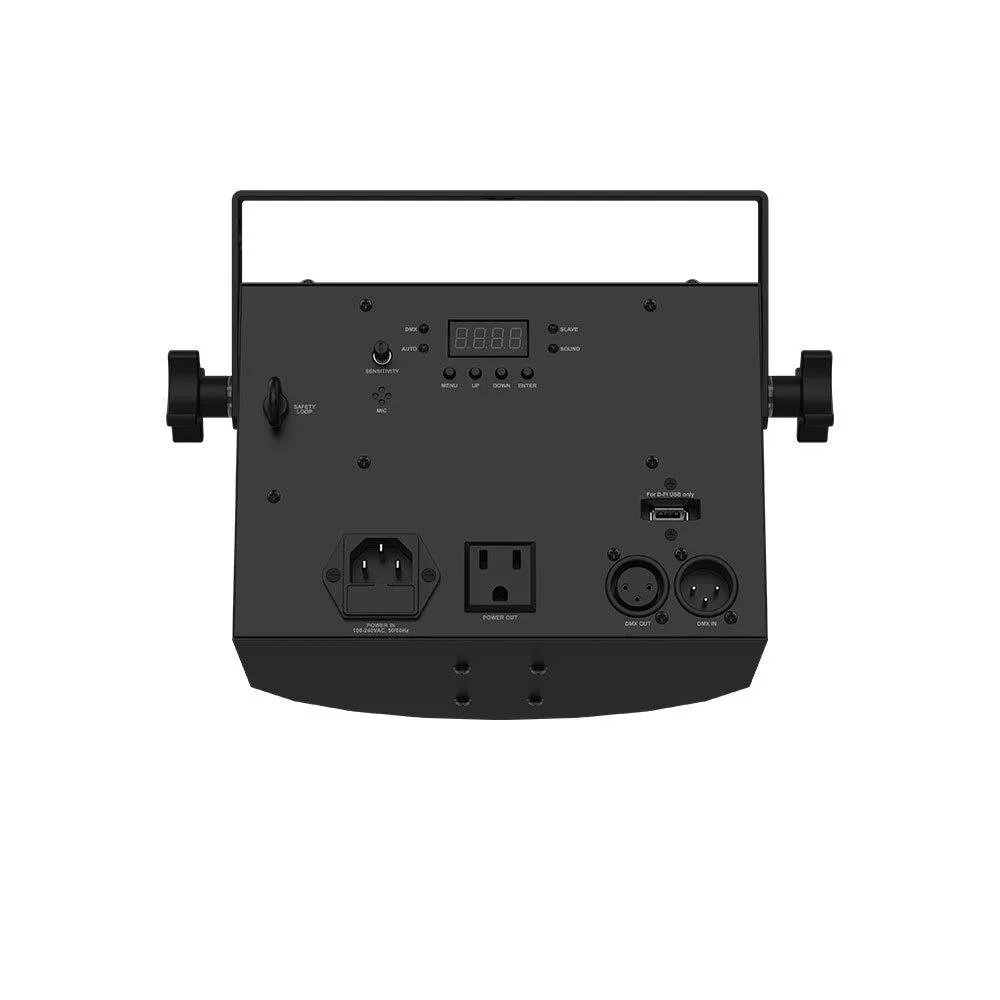

  • Easily control the unit from DMX, Master/Slave, IRC-6, or the digital display
  • Save time running cables and extension cords by power linking multiple units

Countless razor-sharp multicolor beams. Eye-catching strobe effects and chases. Hundreds of red and green laser beams. These are just a few of the effects that are sure to dazzle event guests from the Kinta FX ILS, a compact multi-effect light with a Kinta, laser, and SMD strobe. What makes this exciting effect light even more potent is its ILS compatibility with the cutting-edge Integrated Lighting System (ILS) that makes creating coordinated light shows across different fixture types easy. Kinta FX ILS is also D-Fi USB compatible for use with the wireless ILS connection, and wireless Master/Slave or DMX control. Easily control the unit from DMX, Master/Slave, IRC-6, or the digital display.

Technical Data



DMX Channels: 2 or 9
DMX Connectors: 3-pin XLR
Light Source Kinta: 4 LEDs (1 red, 1 green, 1 blue, 1 white) 7.5 W, (2.4 A), 50,000 hours life expectancy
Strobe: 16 SMD LEDs (white) 5 W, (1.6 A) 50,000 hours life expectancy
Laser: 650 nm/100 mW (red) laser diode, 520 nm/30 mW (green) laser diode
Strobe Rate: 0 to 20 Hz
Coverage Angle: 118°
Power Linking: 33 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 24 W, 0.2 A @ 230 V, 50 Hz
Weight: 1.7 kg
Size: 187 x 261 x 187 mm
Optional Controllers: IRC6
Approvals: CE, FDA, RoHS, UKCA
SKU KINTA-FXILS
Brand Chauvet
Shipping Weight 1.7000kg
Shipping Width 0.185m
Shipping Height 0.160m
Shipping Length 0.185m
