CCFL2E-12-BLBL-HUM

In our quest to create new and exciting products for the modern, touring musician,
we have introduced several dual output ‘humbucker’ models.
The idea came from the numerous artists we came across who had added electric pickups to their guitars for a dirty tone via a retrofit pickup in the sound hole.
Apart from ruining their rosettes, the placement of that electric pickup isn’t optimal for dirty sounds. Most electric players head to their bridge pickup for this.
As a result, we decided to give those players a correctly placed, fine tuned and more stable dual output guitar.

The Humbucker models come with our patented 3 way acoustic pickup and all it’s usual settings. The added humbucker, with volume and tone knobs of the face are a completely separate output jack that runs ideally to an amplifier or amp simulator for an uncompromised electric guitar sound to blend with, loop or sit under your acoustic tone.
The reason for the two outputs is to have the absolute best of both worlds rather than a single output that will compromise both pickups and be limited in it’s ability.

In simple terms, an acoustic guitar should be played through a PA and an electric guitar should be played through an amp.

Cole Clark PG3 pickup system.

Released in 2022, the PG3’s improved microphone for extreme highs, altered frequency filter between the mic and face sensor and new configuration between the face sensor and bridge pickup delivers our most advanced, dynamic and natural sounding plugged in experience yet.

The concept behind our pickup technology is best explained by comparing it to an audio system. A P.A usually consists of sub woofers, speakers and horns. Each component is designed to hear a range of frequencies they are best equipped to handle, with crossover points for frequencies best heard by the next component. Cole Clark uses the same philosophy, combining a piezo system for the bottom end, a patented face sensor for the mid range and a microphone for the top end.

Under Saddle Piezo

The piezo system utilizes 6 individual piezo elements suspended under the bridge saddle which we believe is the best and most dynamic type of piezo system available.

Face Sensor

We know that the face/top is the most important component to the sound of an acoustic guitar, so it makes sense that we utilize that tone when amplifying the guitar. We do this with our unique face sensor which is specifically designed for the mid range. We use a patented blend control which blends in the amount of face sensor required to go with the piezo sound or to completely replace the piezo in the mid range. This goes a long way in removing the ‘piezo quack’, delivering a more natural tone. With a maximum crossover point of 350hz, the face sensor cannot hear any frequency in it’s feedback zone, instead leaving those frequencies to the under saddle piezo.

Microphone

The third element is a condenser microphone for the top end. This microphone is set well above any frequency zone that could cause it to feed and is purely there to take the ‘ping’ out of the piezo if there is some piezo blended through at full range.

Controls

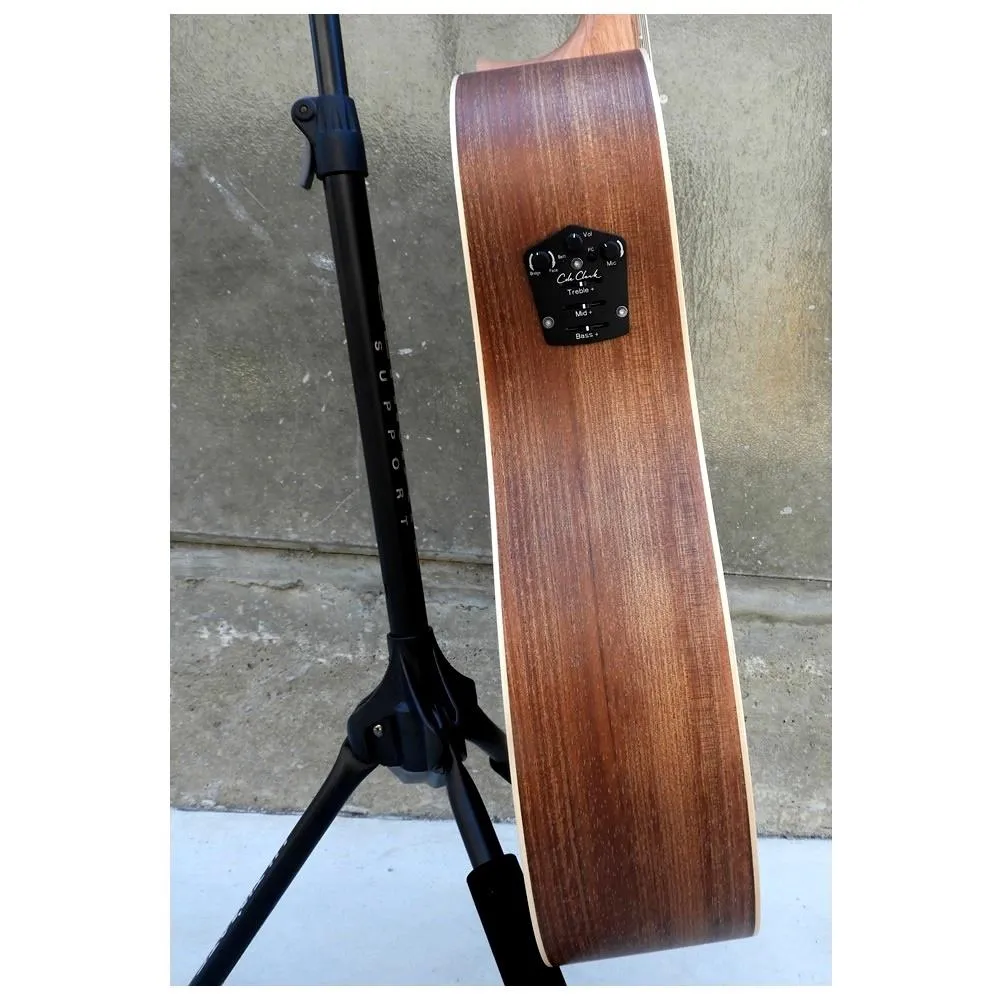

On your preamp you’ll find 3 knobs. Top centre is for volume, top left is a blend knob used to add or remove frequencies that the face sensor is hearing and top right is a separate volume specific to the microphone.

The FC (filter contour) button allows for effortless switching between the PG3 configuration and an improved version of it’s predecessor, the 3-Way. There is also a battery light and a highly effective EQ with sliders for treble, mid range and bass response.

Product Specifications

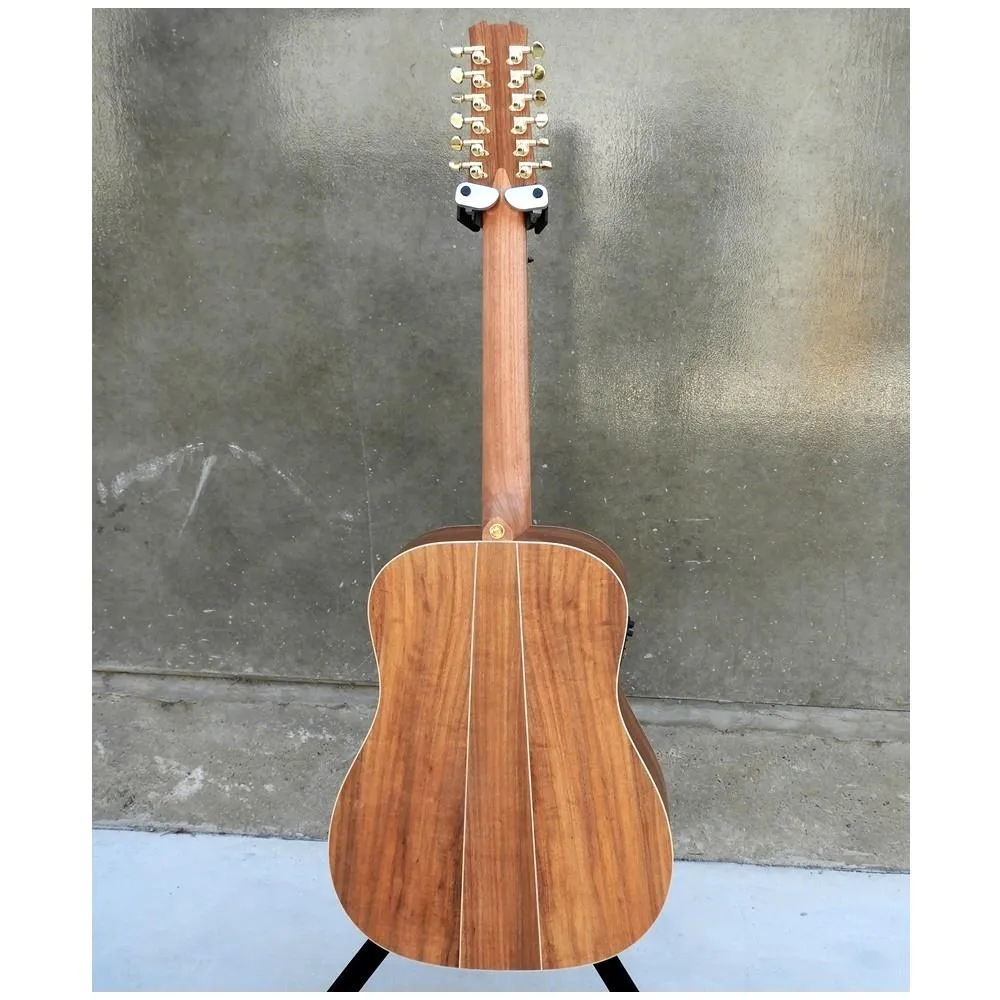

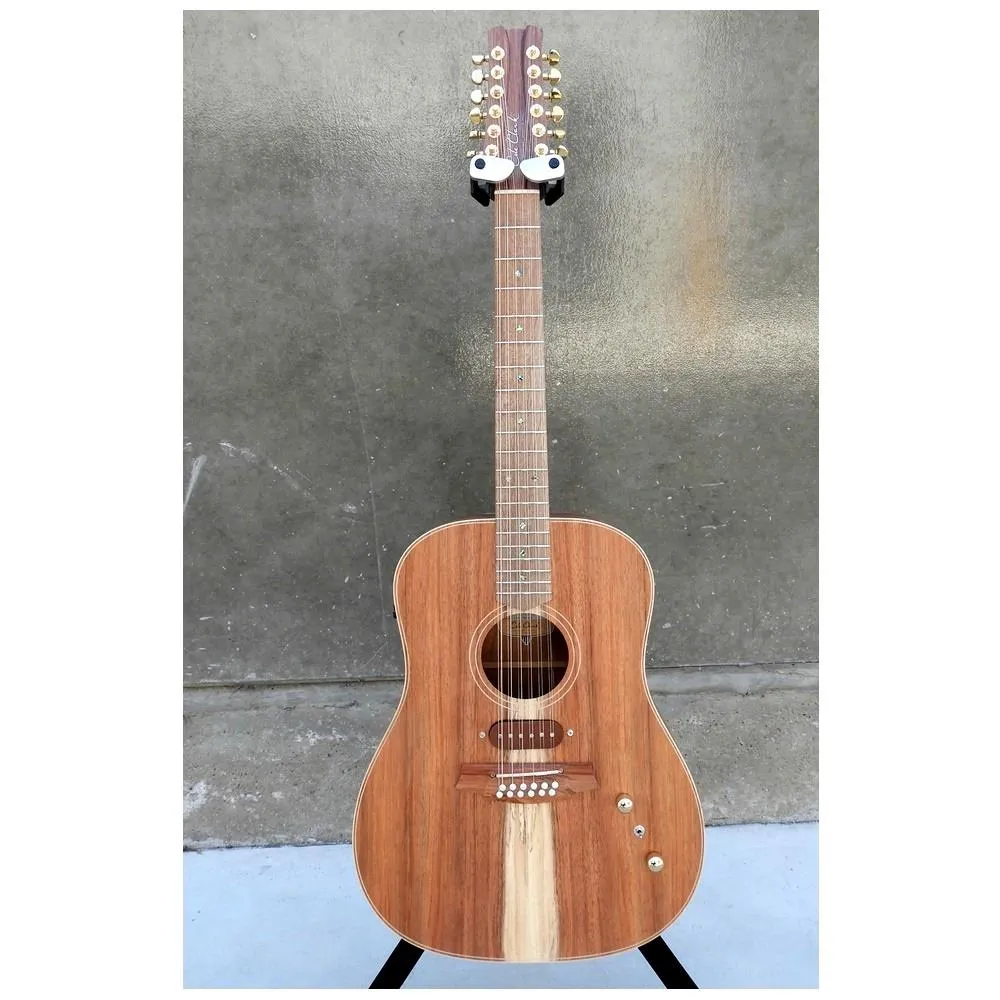

• All solid timber full body 12 string dreadnought with internally carved top and back
• Made entirely from sustainable timbers
• Cole Clark PG3 pickup system

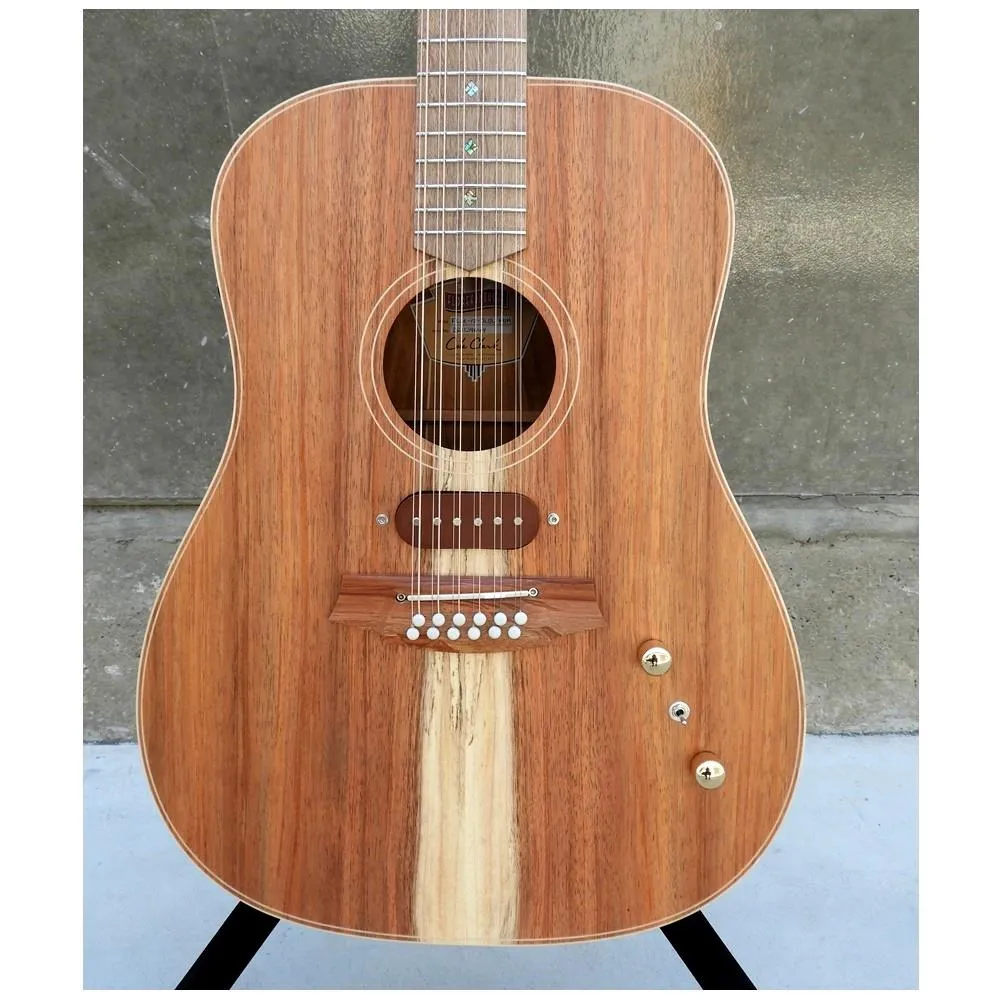

• pgWorx stacked humbucker (Separate output. Tone and volume on face)
• Finish: Nitrocellulose (natural satin)
• Neck: Qld Maple
• Top: AA grade Australian Blackwood

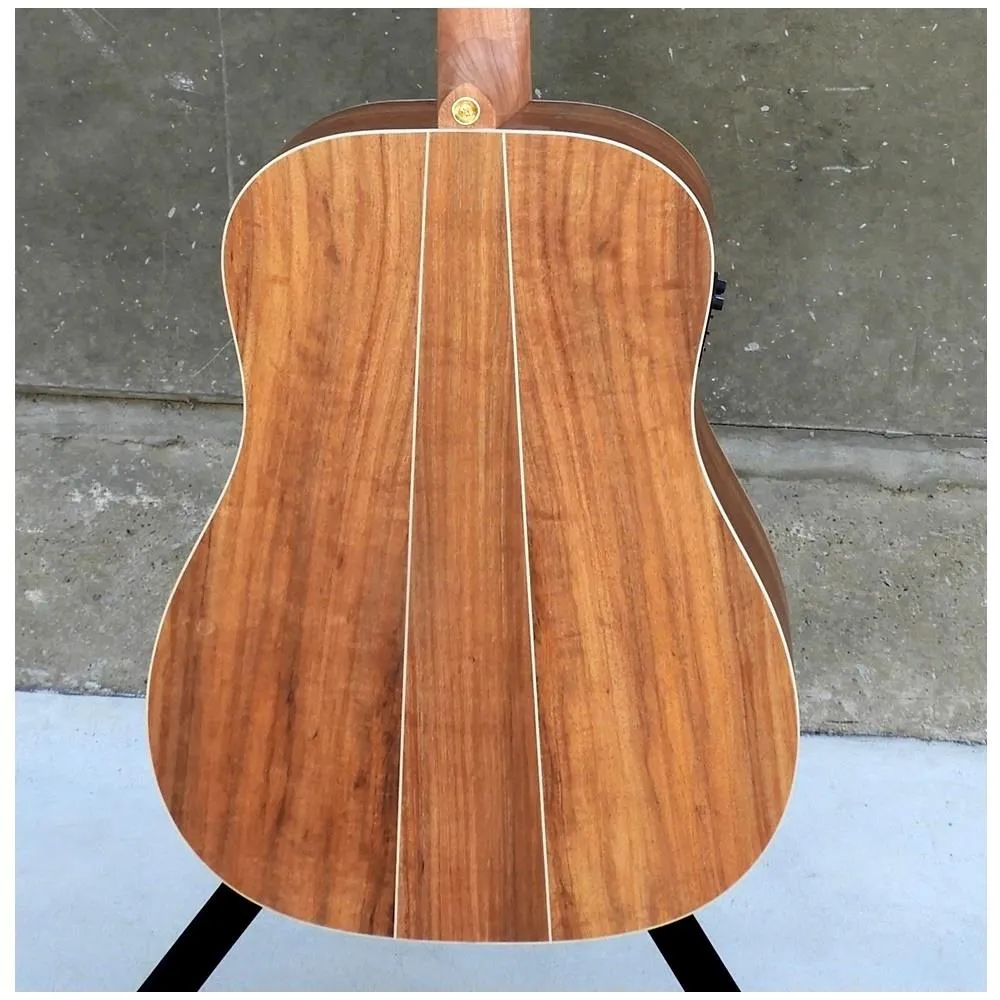

• Back and sides: AA grade Australian Blackwood
• Inlaid timber rosette, binding and purfling
• Bridge/Fretboard: She Oak
• Inlays: Snowflake
• Machine Heads: Grover
• Nut/Saddle: Graph Tech Tusq
• Strings: Phosphor Bronze 10-47
• Nut Width: 50mm / 1.97″
• Radius: 12″
• Scale length: 25.5″
• Left handed version by order. Code FL2E-12-LH-BLBL-HUM
• Cole Clark hardcase – Tweed
• PickGuard supplied in case
