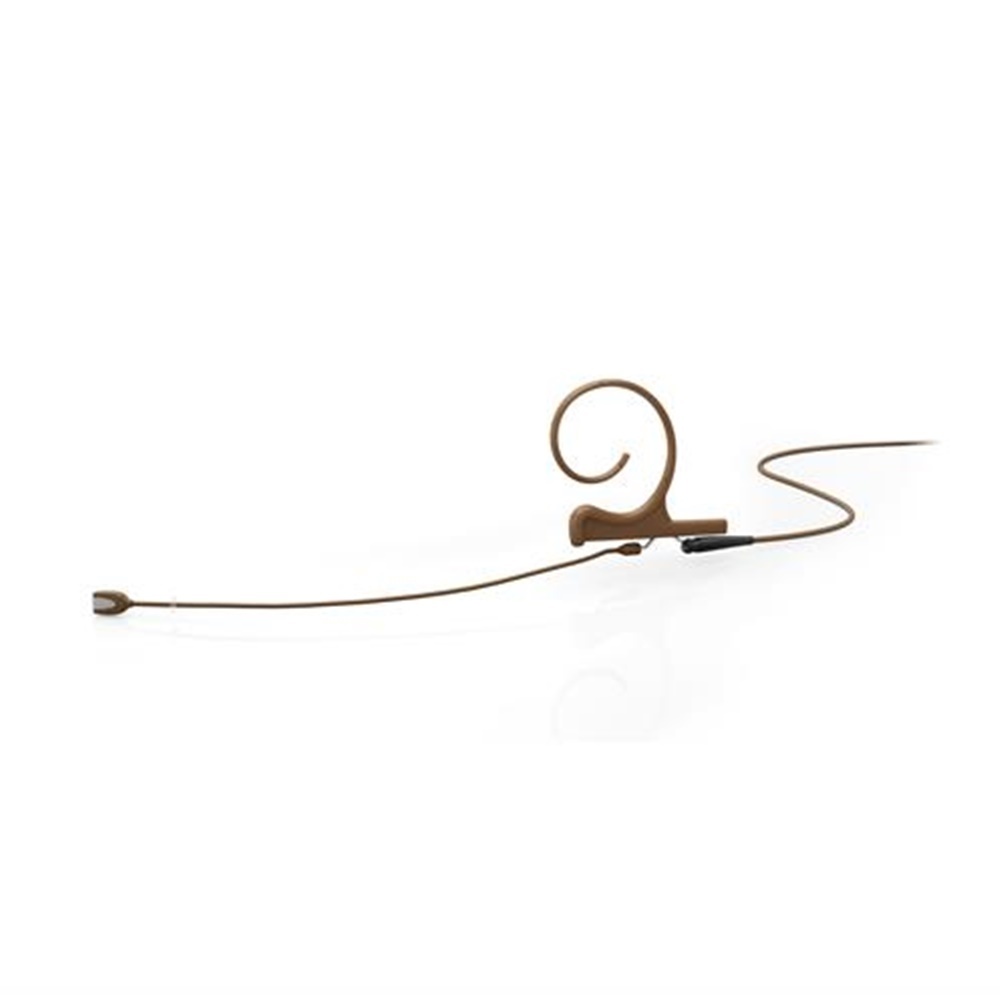

Ex DEMO  Mic,   comes with DPA full  warranty

Legendary sound - flexible headset

  • Pristine audio quality
  • Lightweight and flexible
  • Easy mounting to the left or right
  • Minimal visual impact
  • Resistant to humidity
  • Flexible adapter system fits most professional wireless systems

Specifications

Directional characteristics: Cardioid

Principle of operation: Pressure gradient

Cartridge type: Pre-polarized condenser

Frequency range: 20 Hz - 20 kHz

Frequency range, ± 2 dB, Near field 2-3 cm (0.8-1.2 in): 100 Hz - 20 kHz with 3 dB soft boost at 8 - 20 kHz

Sensitivity, nominal, ± 3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa

Equivalent noise level, A-weighted: Typ. 28 dB(A) re. 20 µPa (max. 30 dB(A))

Equivalent noise level, ITU-R BS.468-4: Typ. 40 dB (max. 42 dB)

S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 66 dB(A)

Total Harmonic Distortion (THD): -1 % up to 123 dB SPL peak; -1 % up to 120 dB SPL RMS sine

Dynamic range: Typ. 95 dB

Max. SPL, peak before clipping: 144 dB

Output impedance: From MicroDot: 30 - 40 ohm. From DAD6001-BC: 100 ohm

Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR adapter

Output balance principle: Signal balanced with DAD6001-BC XLR adapter

Common Mode Rejection Ratio (CMRR): +60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR adapter

Power supply (for full performance): Min. 5 V to max. 50 V through DPA adapter for wireless systems; 48 V phantom power +/- 4
V with DAD6001-BC XLR adapter

Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR adapter.

Connector: MicroDot

Weight
Microphone boom: 0.8 g (0.03 oz)
Earhook: 1.1 g (0.04 oz)
Cable: 6.6 g (0.23 oz)
Total: 8.5 g (0.30 oz).
Microphone head size (h x w x d): 9.5 x 5.3 x 2.9 mm (0.37 x 0.21 x 0.11 in)
Capsule diameter: 5.4 mm (0.2 in)
Mic boom length: 120 mm (4.7 in)
Cable length: 1.3 m (4.3 ft)
Cable color: beige
Cable diameter: 1.6 mm (0.06 in)
Polarity: +V at MicroDot pin for positive sound pressure (and pin 2 on DAD6001-BC XLR adapter)
Electro Magnetic Compatibility (EMC): Fully compatible
Temperature range: -40 °C to 45 °C (-40 °F to 113 °F)
Relative Humidity (RH): Up to 90%


SKU DP-FIDC00
Brand DPA
Unit Of Measure ea
