Ex Display/DEMO  Mic, in as new condition comes with DPA full  warranty

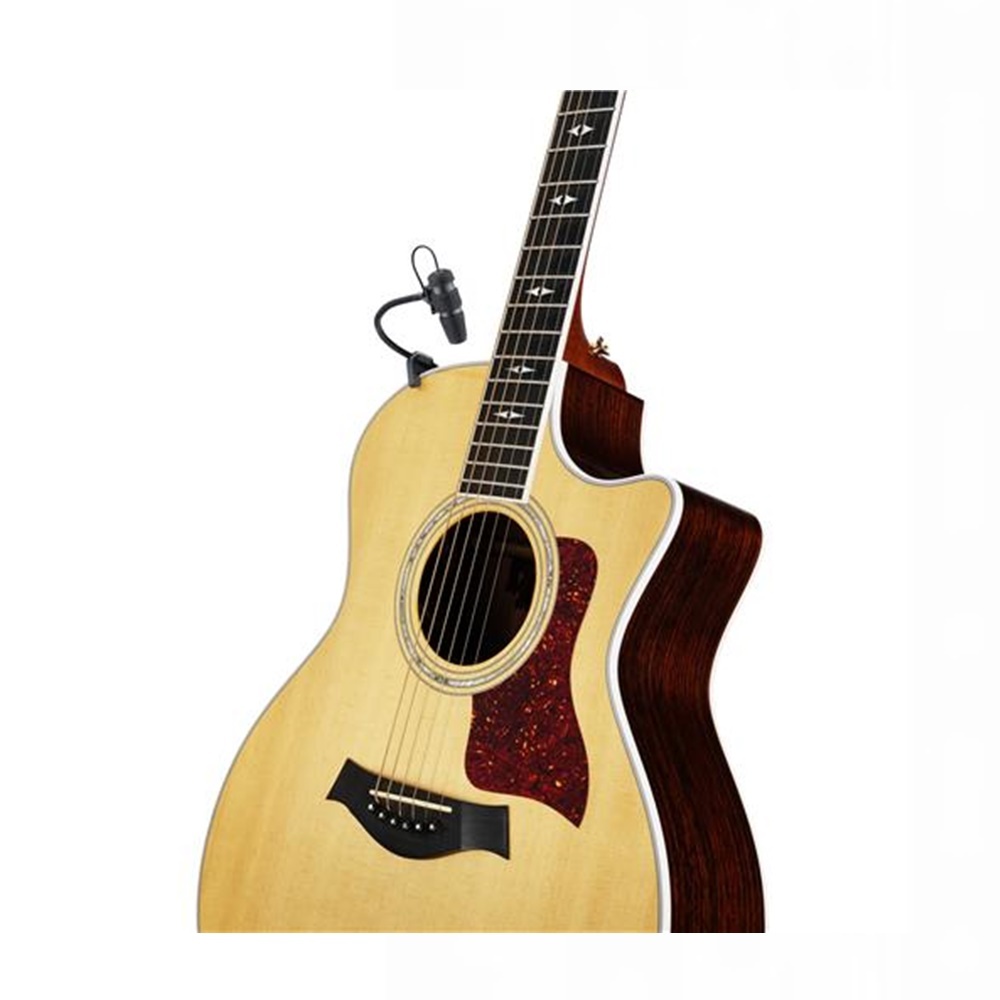

DPA d:vote 4099 for Guitar, mandolin, ukulele and dobro

The d:vote™ CORE 4099 for Loud SPL is perfect for PA amplification and live recording of acoustic guitar, mandolin, ukulele and dobro. It offers practically unlimited placement possibilities. The sound it provides is considerably more natural than an internal microphone or pick-up.


The mic fits instruments with a body depth between 35 mm (1.4 in) and 122 mm (4.8 in). Users will appreciate how gently this condenser mic adheres to their prized instrument. It is elegant, lightweight, unobtrusive and designed to stay out of the way during a performance. The mounting mechanism makes it easy to move the mic between instruments with just one hand.

Choose a d:vote™ CORE 4099G Instrument Microphone for Guitar (4099-DC-1-199-G) for your guitar, mandolin, ukulele or dobro.


Directional pattern

    Supercardioid

Principle of operation

    Pressure gradient

Cartridge type

    Pre-polarized condenser

Frequency range

    20 Hz - 20 kHz



Frequency range, ± 2 dB, at 20 cm (7.9 in)

    80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz

Sensitivity, nominal, ±3 dB at 1 kHz

    6 mV/Pa; -44 dB re. 1 V/Pa

Equivalent noise level, A-weighted

    Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A))

S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)

    Typ. 71 dB(A)

Total harmonic distortion (THD)

    < 1% up to 131 dB SPL pea



Dynamic range

    Typ. 108 dB

Max. SPL, peak before clipping

    142 dB

Output impedance

    From MicroDot: 30 - 40 Ω. From DAD4099/DAD6001-BC: 100 Ω

Cable drive capability

    Up to 300 m (984 ft) with DAD4099 or DAD6001-BC XLR Adapter

Output balance principle

    Signal balanced with DAD4099 or DAD6001-BC XLR Adapter



Common mode rejection ratio (CMRR)

    > 60 dB from 50 Hz to 15 kHz with DAD4099 or DAD6001-BC XLR Adapter

Power supply (for full performance)

    Min. 5 V to max. 50 V through DPA adapter for wireless systems

Current consumption

    Typ. 1.5 mA (microphone). 3.5 mA with DAD4099 or DAD6001-BC XLR Adapter

Connector

    MicroDot

Colour

    Black



Current consumption

    Typ. 1.5 mA (microphone). 3.5 mA with DAD4099 or DAD6001-BC XLR Adapter

Connector

    MicroDot

Colour

    Black

Weight

    27 g (0.95 oz)

Microphone diameter

    5.4 mm (0.21 in)

Microphone length

    45 mm (1.8 in)

Cable length

    1.8 m (5.9 ft)

Cable diameter

    1.6 mm (0.06 in) / 2.2 mm (0.09 in)

Polarity

    +V at MicroDot pin for positive sound pressure

(and pin 2 on DAD4099 or DAD6001-BC XLR adapter)
SKU DP-CO4099G
Brand DPA
Unit Of Measure ea
