AS125U Acoustic Guitar Pickup System

Features:

• Natural-sounding saddle transducer system
• A complete system that includes the AT125 saddle pickup, APA-2 preamp, and the EMG Endpin Jack
• Highs have a natural brilliance and the low-end is full and rich
• A pickup system for acoustic guitar that sounds as alive through a combo amp or mixing board as it does acoustically

EMG AT125
• Has a piezo film in a layered format (Bimorph) that has many advantages over other film designs as well as piezo crystals
• The layering allows a lower-output impedance as well as double the output of other designs
• Unlike the crystals, the film has no resonance in the audible region so it doesn't have that annoying harshness inherent in the crystal pickups
• The film runs the length of the pickup, any number of strings or any string spacing can be used

EMG-APA-2 Preamp
• A miniature preamp/battery holder unit that is easily mounted to the neck block using a 3M dual-lok fastener
• Incorporates an FET input for low noise and a very high-input impedance (20 megohms) so you can finally get every ounce of tone your guitar is capable of producing
• The low-output impedance (2k Ohms) allows you to plug into a guitar amp, mixing board, or even directly into a tape/digital recorder with the same fabulous results
• Guitars natural tone is amplified without added overtones or coloration

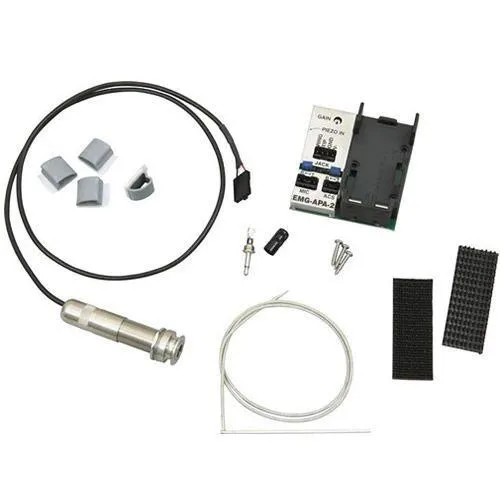

Package Includes:

• Endpin Jack with cable
• APA-2 preamp
• Input plug
• Cable keepers
• Battery holder
• Allen wrench (.062")
• Attachment screws
• Velcro

Specifications

• Output noise: -95 dBV
• Input impedance (preamp): 500kOhms
• Output impedance (preamp): 2kOhms
• Current @ 9 voltes (microamps): 1000
• Battery life: 250 hours
• Maximm supply voltage: 27V
• Variable preamp gain (dB): -3 to +15
• Output impedance (pickup): 430kOhms

Note: Before purchasing, you should measure the width of the saddle of your guitar to be sure you get the right pickup. The AS125U System is for 1/8" saddle width.
SKU EMGAS125U
Brand EMG
