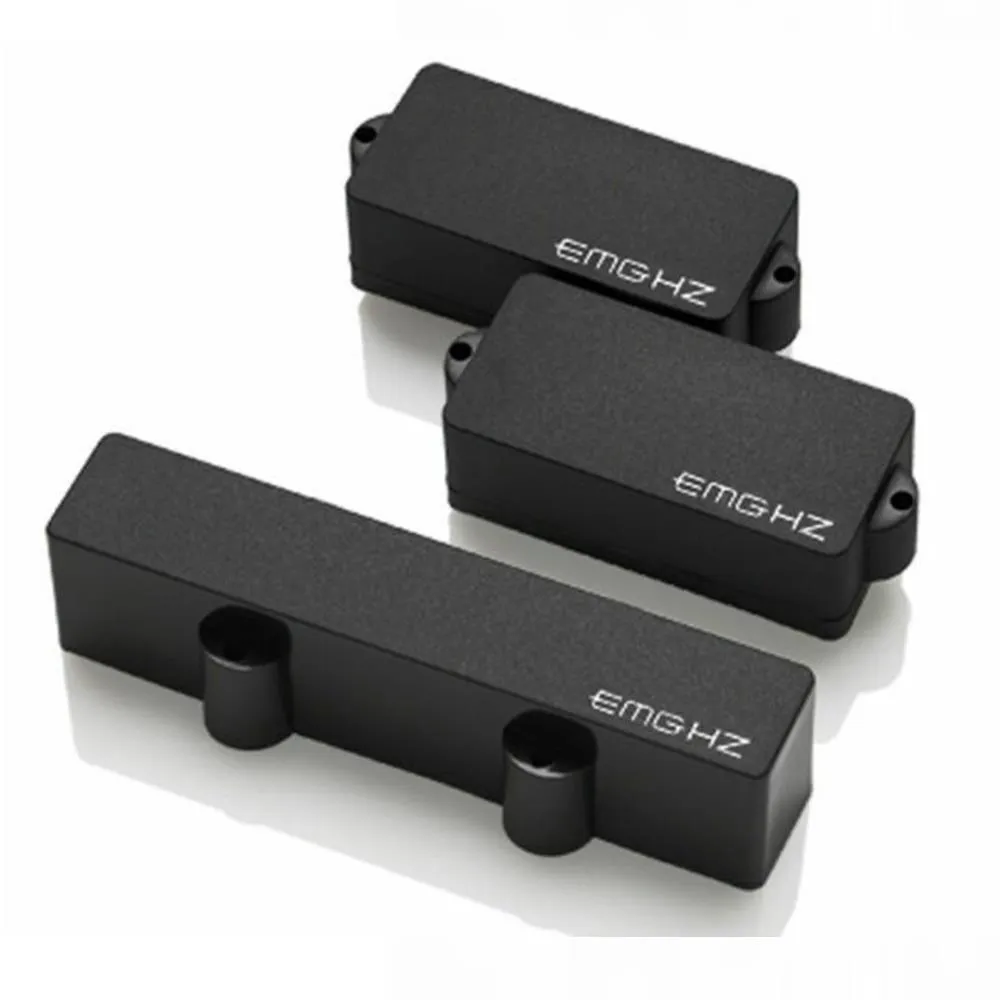

The PJHZ SET combines a P pickup with an LJ pickup into one set, giving you more flexibility and a great passive tone. Both pickups use a ceramic magnet with a steel core and can be used as a direct replacement for all Fender-style instruments. All HZ Pickups have EMG's exclusive 5-wire quik-connect output allowing any number of wiring combinations, and are fully shielded for a minimum of noise. String grounding is recommended to further decrease noise.

Package Includes: Mounting screws.

General
Color: Black
Manufacturer: EMG
MPN: PJHZ SET, Black
SKU: EMGPJHZSET-B
Pickup
Magnet Type: Ceramic/Steel
Placement: Bridge
Placement: Neck
String Spacing: 4-String
Specifications
Controls: 2 Volume, 1 Tone
DC resistance: 11.2k (P), 7.7k (J)
Inductance: 6.12 H (P), 2.74 H (J)
J pickup dimensions: 3.7" x 0.73" x 0.85" (94 x 18.54 x 21.6 mm)
J screw spacing: 1.56" x 0.92" (39.6 x 23.3 mm)
Magnets: Ceramic/Steel
P pickup dimensions (each piece): 2.25" x 1.1" x 0.85" (57.1 x 24.95 x 21.6 mm)
P screw spacing: 2.45" (62.2mm)
Resonant frequency: 2.36 KHz (P), 3.2 KHz (J)
SKU EMGPJHZ
Barcode # 654330110405
Brand EMG
Shipping Weight 0.4600kg
Shipping Width 0.100m
Shipping Height 0.050m
Shipping Length 0.220m
Shipping Cubic 0.001100000m3
Unit Of Measure ea
