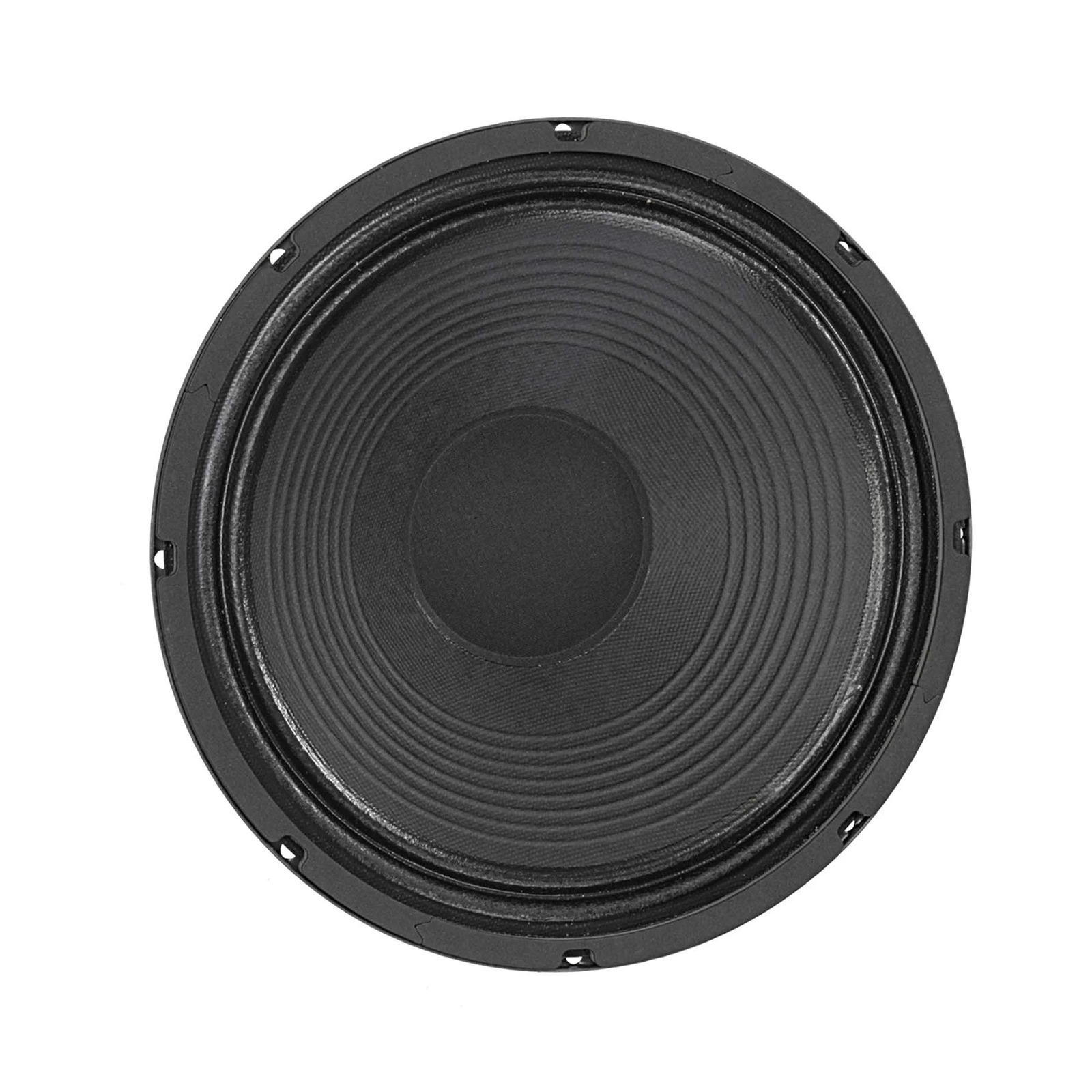

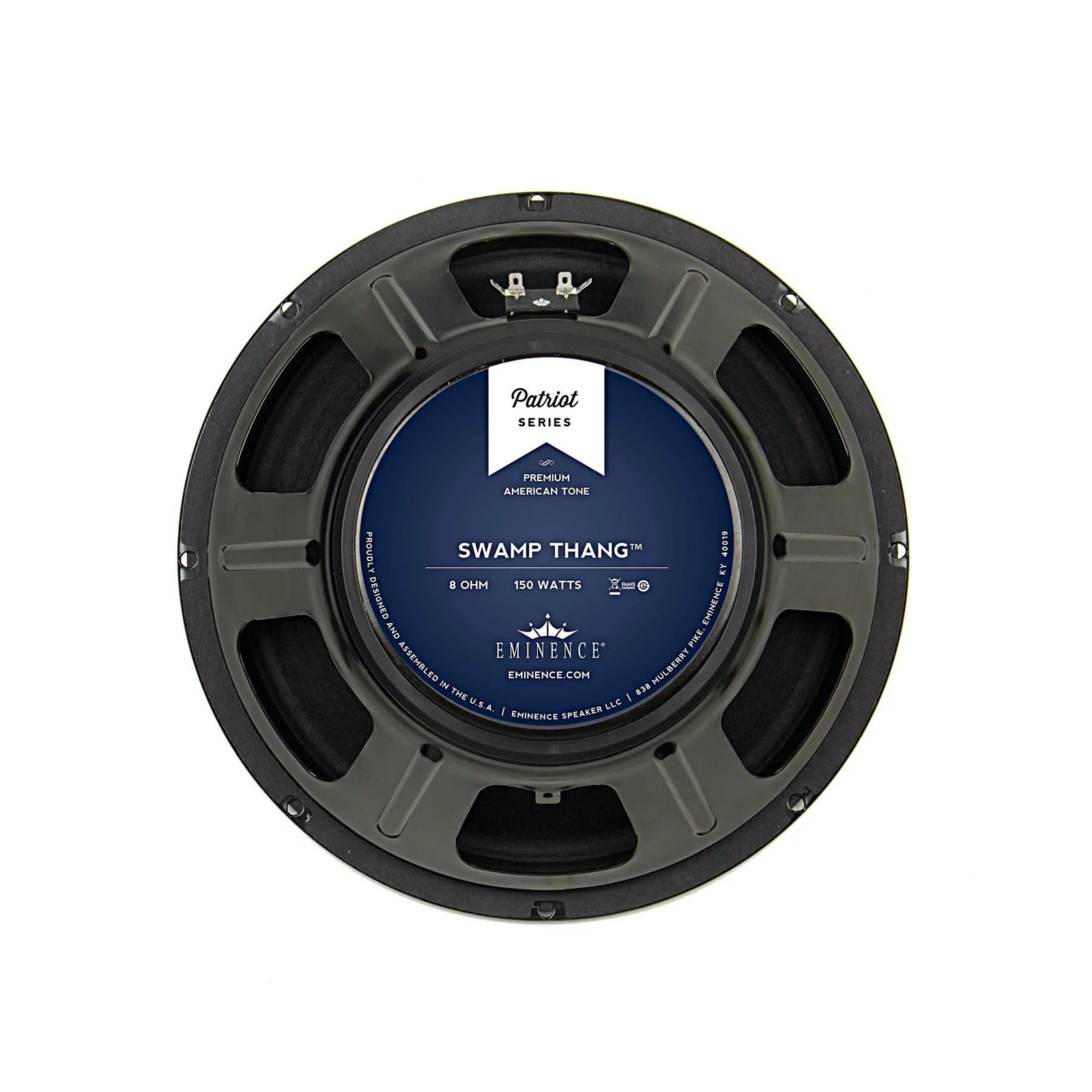

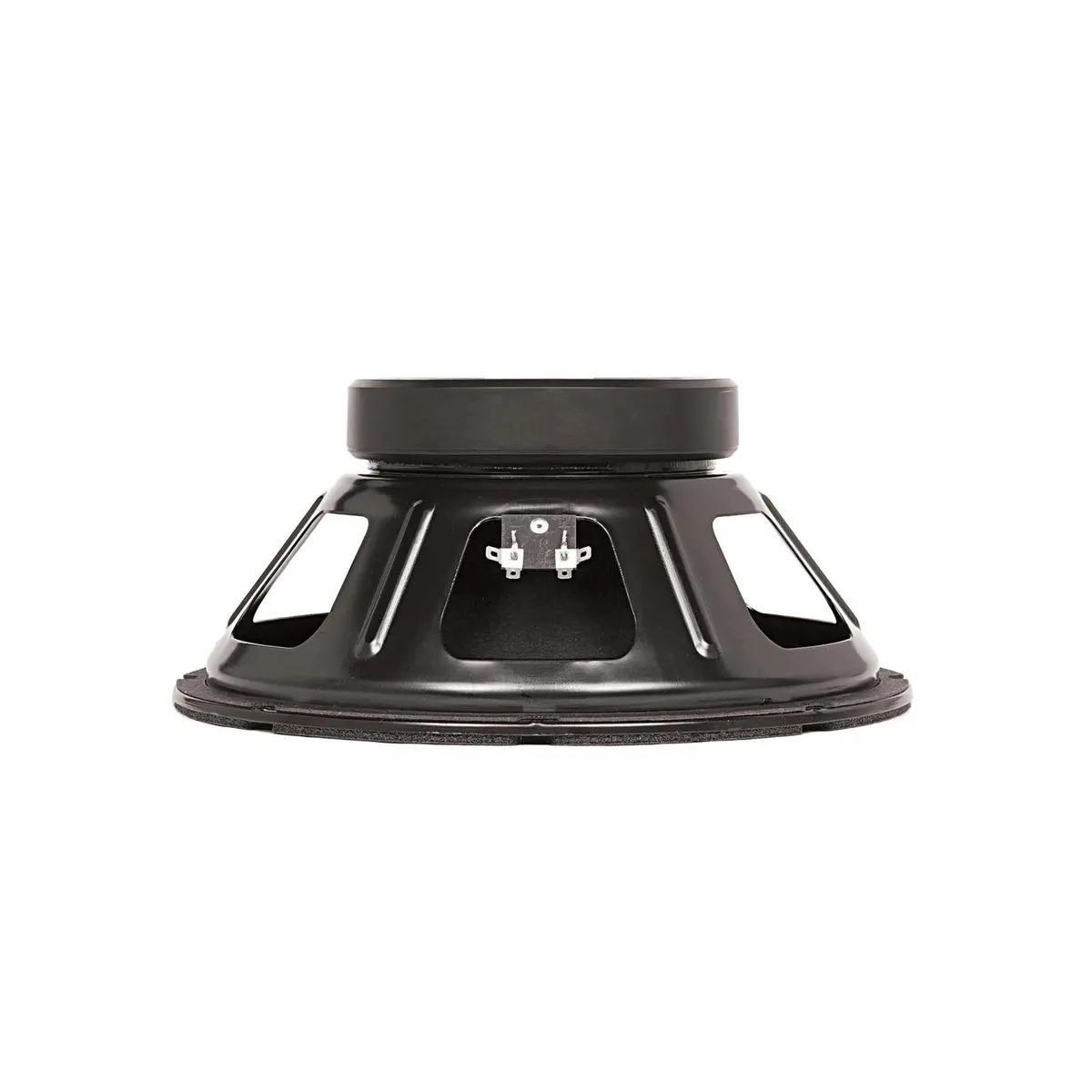

Eminence SWAMP THANG 12" Lead / Rhythm Guitar Speaker- American 150w 8ohm
Calculate Shipping :
Free pickup from our Melbourne Store at 4 Drake Boulevard, Altona VIC 3018. Your order will typically be ready by the next business day. We recommend calling us on (03) 8360 7799 beforehand to check it's ready for collection.
Share This Item :
Designed with heavier players in mind, the Swamp Thang provides a thick and chunky tone with loads of sustain. The awesome bottom end will hold up to even the most demanding drop-tune or 7 string players.
SeriesPatriotsModelSwamp ThangApplication12" Open or Closed BackConfiguration1, 2, or 4 X 12"Low End ResponseAggressiveLow End ShapeFat/RoundMid-Range ResponseAggressiveMid-Range ShapeDarkHigh-End ResponseModerateVolume/PowerLoudestOverall Coloration*Very powerful, thick and chunky tone. Very touch sensitive with good sustain. Awesome bottom end.Break-up ModesSlowPower RangeUp to 150 wattsInstrument*Lead/Rhythm GuitarGenre of Music*Very American tone suitable for Blues, Rock, and Jazz
| SPECIFICATION | |
| Nominal Basket Diameter | 12", 305 mm |
| Nominal Impedance* | 8 Ω |
| Power Rating* | |
| Program Power | N/A |
| Watts | 150 W |
| Resonance | 97 Hz |
| Usable Frequency Range | 70 Hz - 4 kHz |
| Sensitivity* | 102 dB |
| Magnet Weight | 59 oz. |
| Gap Height | 0.312", 7.9 mm |
| Voice Coil Diameter | 2", 51 mm |
| THIELE & SMALL PARAMETERS | |
| Resonant Frequency (fs) | 97 Hz |
| DC Resistance (Re) | 6.92 Ω |
| Coil Inductance (Le) | 0.42m H |
| Mechanical Q (Qms) | 14.43 |
| Electromagnetic Q (Qes) | 0.55 |
| Total Q (Qts) | 0.53 |
| Compliance Equivalent Volume (Vas) | 41.3 liters / 1.46 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 42.6 cc |
| Mechanical Compliance of Suspension (Cms) | 0.1 mm/N |
| BL Product (BL) | 14.2 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 26 grams |
| Efficiency Bandwidth Product (EBP) | 177 |
| Maximum Linear Excursion (Xmax) | 0.8 mm |
| Surface Area of Cone (Sd) | 532.4 cm2 |
| Maximum Mechanical Limit (Xlim) | N/A |
| MOUNTING INFORMATION | |
| Recommended Enclosure Volume | |
| Sealed | Acceptable |
| Vented | Acceptable |
| Driver Volume Displaced | 0.079 cu.ft. / 2.25 liters |
| Overall Diameter | 12.03", 305.6 mm |
| Baffle Hole Diameter | 11.07", 281.2 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.25", 6.4mm |
| Mounting Holes B.C.D. | 11.59", 294.4mm |
| Depth | 5.2", 132.1 mm |
| Net Weight | 11.1 lbs, 5.03 kg |
| Shipping Weight | 12.8 lbs, 5.81 kgs |
| MATERIALS OF CONSTRUCTION | |
| Coil Construction | Copper voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Ferrite magnet |
| Core Details | Non-vented core |
| Basket Materials | Pressed steel basket |
| Cone Composition | Paper cone |
| Cone Edge Composition | Paper cone edge |
| Dust Cap Composition | Zurette dust cap |
| SKU | SWAMPTHANG |
| Brand | EMINENCE |
| Shipping Weight | 5.3500kg |
| Shipping Width | 0.340m |
| Shipping Height | 0.170m |
| Shipping Length | 0.340m |
| Shipping Cubic | 0.019652000m3 |
| Unit Of Measure | ea |
