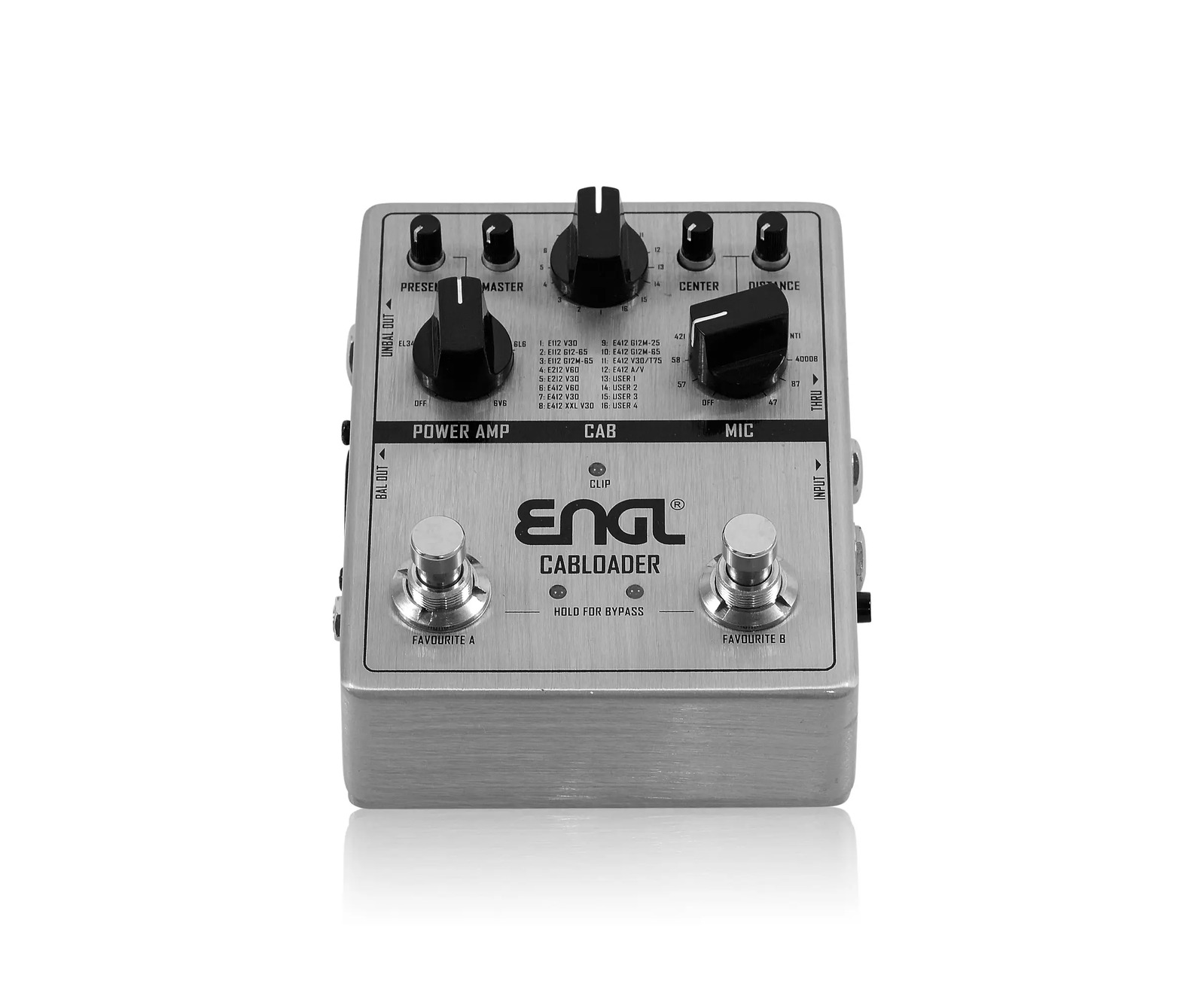

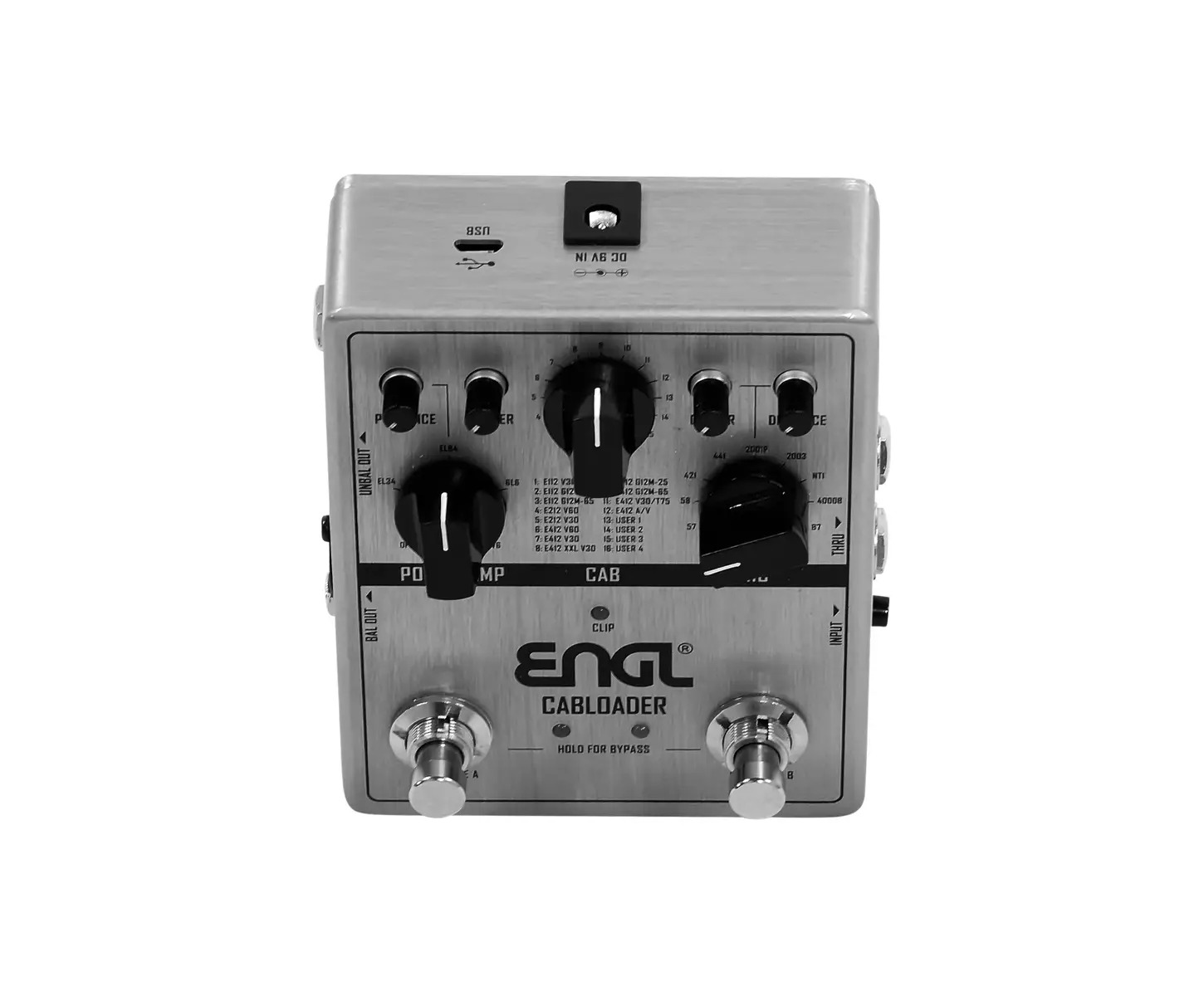

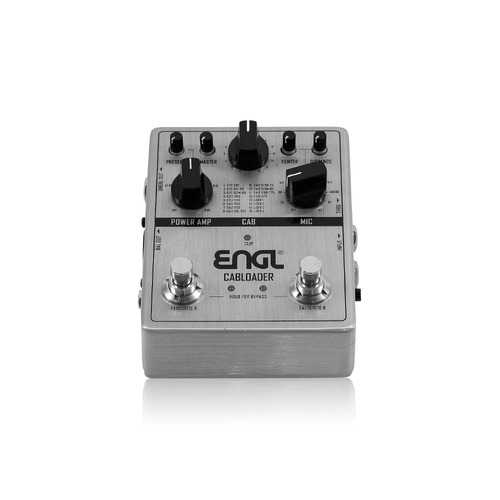

The ENGL CABLOADER is a fully-featured speaker cabinet simulator, IR Loader and DI box. This all-in-one solution can transform your pedalboard into a full DI rig, provide a perfect link from your amplifier to a recording interface, or even just give you a great way to hook up your pedals to your headphones for silent practice. The CABLOADER sports a whole host of IR-based digital cabinet simulation models, as well as various microphone and optional power amp emulations. These allow you to digitally recreate the sound and feel of a fully mic’d guitar speaker and experiment with cab models you may never be able to actually experience in real life. Third party IR loading is also supported via the proprietary software, so you can load .wav IR files from any of your favorite manufacturers or studios.

As complicated as all the digital wizardry that’s going on inside this little box is, the CABLOADER was designed with sheer simplicity and ease of use in mind! Even a if you’re a complete newcomer to the world of digital cab sims and IR loaders, you’ll be able to quickly set up an amazing sound thanks to the intuitive controls. The quality of the simulations and the extensive connection options make this the perfect tool for anyone from beginners to professionals.

Features
Impulse Response Cabinet Simulator
Microphone Simulator
Poweramp Simulator
Input Jack
Instrument / Line level adjustment switch
Thru Jack
Unbalanced Out Jack
Balanced Out Jack (XLR)
Ground Lift Switch
Headphones Out
9V DC power supply
Micro USB Port for IR loading (PC and MAC)
12 Built-in ENGL Cabinets
4 User / 3rd Party Slots (accessible via USB)
10 Microphone Models + Microphone Off
4 Poweramp Simulations + Poweramp Off
Favourite A Footswitch to save and recall Preset A
Favourite B Footswitch so save and recall Preset B
True Bypass
Controls
Microphone Section: MIC selector, Center and Distance control
CAB: CAB selector
Power Amp: POWER AMP Selector, Presence and Master Control
Sampling Rate
at least 44.1kHz
Sampling Accuracy
24bit
Signal to noise ratio
100dB
IR format
.wav
Sampling Length
1024 Samples (23.22ms)
Power Requirements
9V DC 300mA (negative center)
Dimensions
12 x 9.5 x 5.55 cm
Weight
0.405 kg
