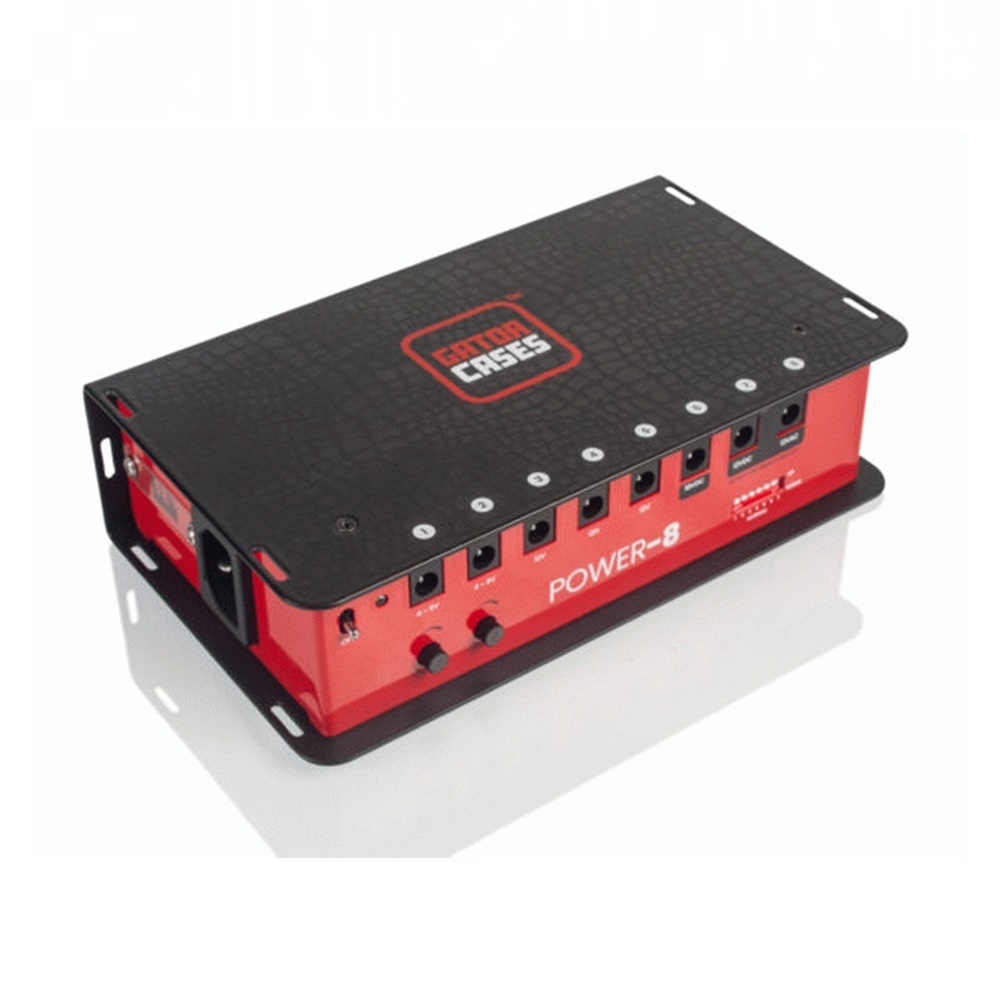

Versatile Power for Any Combination of Pedals

With eight DC-isolated 9V power outputs, the Gator GTR-PWR-8 is a smart solution for providing reliable, low-noise power to your effects pedalboard. The first two outlets offer a Sag control to adjust the voltage between 4V and 9V, perfect for starving fuzz pedals for creative effect. You’ll also find four more 9V/12V DC outputs, one 9V/18V DC output, and a 12V AC output — a comprehensive offering for any combination of analog and digital effects pedals. Its rugged metal enclosure is vented for superior heat dissipation, and integrated mounting slots allow for direct mounting to your pedalboard. If you’re running a mid-sized pedalboard and are searching for a better power solution, we can highly recommend the Gator GTR-PWR-8 pedalboard power supply.

Gator GTR-PWR-8 Pedalboard Power Supply Features:

• 8-outlet pedalboard power supply
• Isolated power outlets for low-noise performance
• Two 4V-9V outlets (120mA each) with variable voltage for starving your fuzz pedals
• Three 9V/12V outlets (120mA each)
• One 9V/18V DC outlet (250mA)
• One 9V/12V DC outlet (250mA)
• One 12V AC outlet (500mA)
• Total of 1,600mA power output

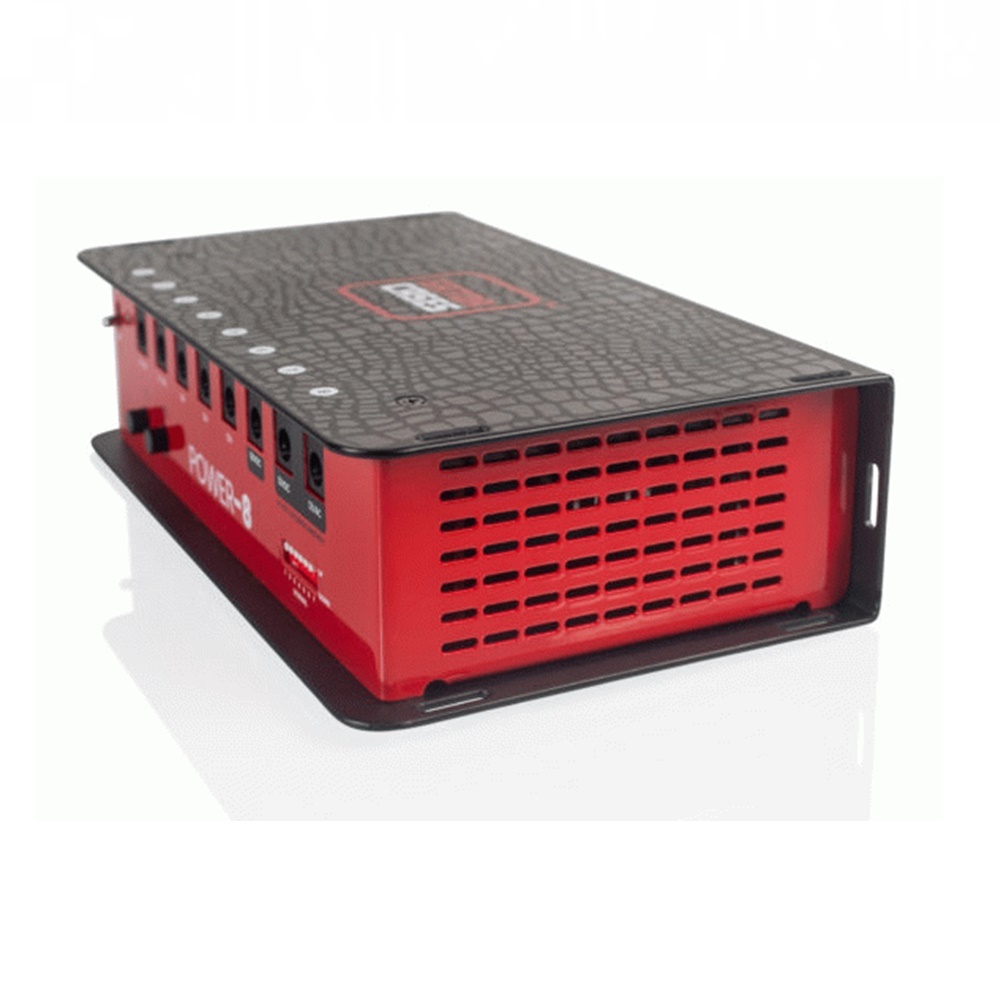

• Slotted vents for heat dissipation
• AC power input with switchable 115V/230V operation
• Mounts directly to your pedalboard
• Includes 8 DC power cables, 1 AC power cable, 1 voltage doubler cable, 1 mini jack cable, and 1 polarity inverter cable

Tech Specs

• Type:Pedalboard Power Supply
• Inputs:Switchable 115/240V AC (Standard IEC cable included)
• Outputs:2 x 4-9V DC 120mA, 3 x 9/12V DC 120mA, 1 x 9/18V DC 250mA, 1 x 9/12V DC 250mA, 1 x 12V AC 500mA
• Maximum Output Current:1600mA total
• Connectivity:2.1mm barrel connectors
• Features:Adjustable SAG Knobs, Adjustable Voltage Dip Switches
• Height:1.95"
• Width:7.3"
• Depth:4.25"
• Weight:3 lbs.
• Manufacturer Part Number:GTR-PWR-8
