Tune-o-matic Bridge For Archtop Guitar

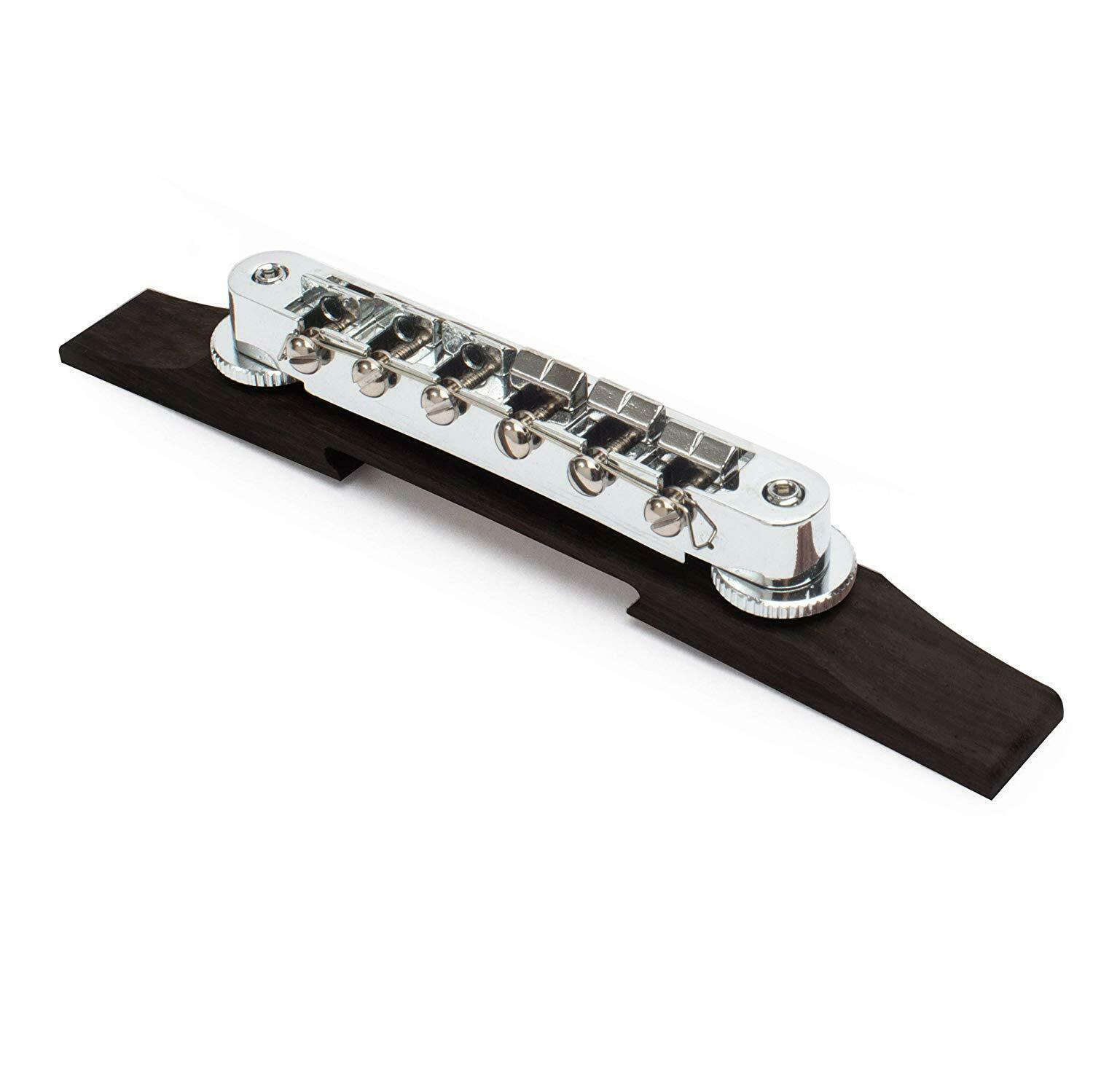

Tune-o-matic mounted on top of a tonewood base. The ideal upgrade for more accurate intonation on archtop and semi-hollow electrics.

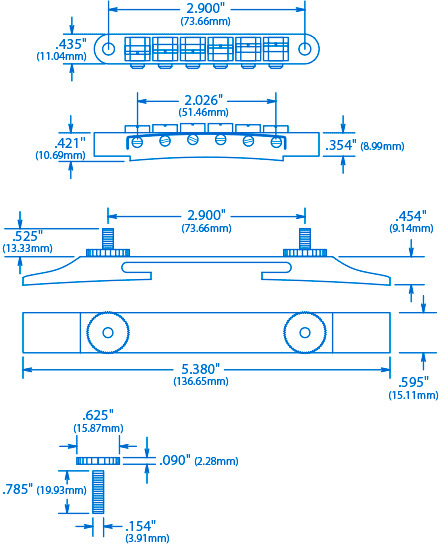

• String spread 2-1/32" (51.59mm)
• Saddle radius 14" (356mm)
• Post spacing 2-29/32" (73.82mm)
• Post threads M4 x 0.7

The height is thumbwheel-adjustable from approximately 7/8" to 1-1/4" (22.23mm to 31.75mm). Saddles are pre-slotted and adjustable to set accurate string intonation.
