iCON Pro Audio | ReoAmp 4 Channel Headphone Amp 8 outputs
SKU: ICO-REOAMP
$199.00
In Stock
Calculate Shipping :
Standard Shipping - FREE
Express Shipping - $88.00
Express International Shipping - $143.00
Pick-up from store - FREE
Free pickup from our Melbourne Store at 4 Drake Boulevard, Altona VIC 3018. Your order will typically be ready by the next business day. We recommend calling us on (03) 8360 7799 beforehand to check it's ready for collection.
Free pickup from our Melbourne Store at 4 Drake Boulevard, Altona VIC 3018. Your order will typically be ready by the next business day. We recommend calling us on (03) 8360 7799 beforehand to check it's ready for collection.
Share This Item :

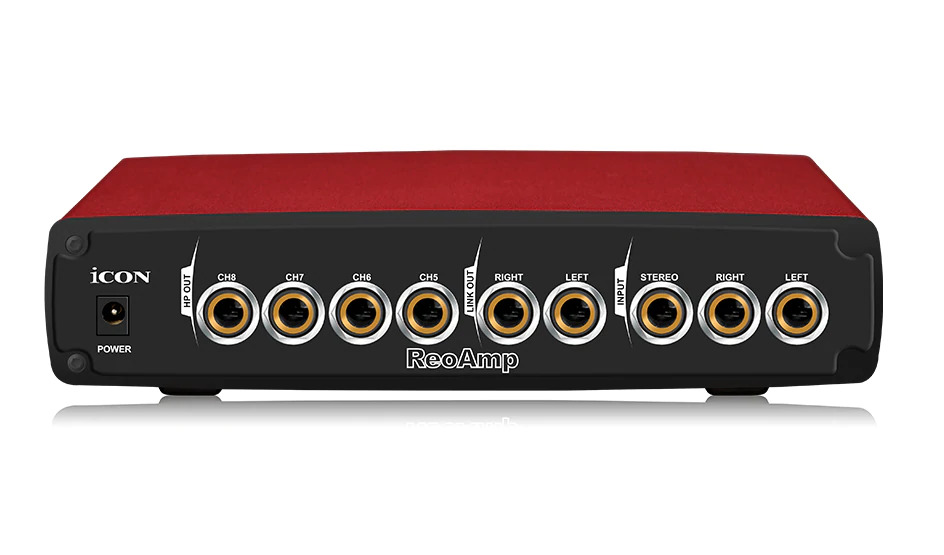

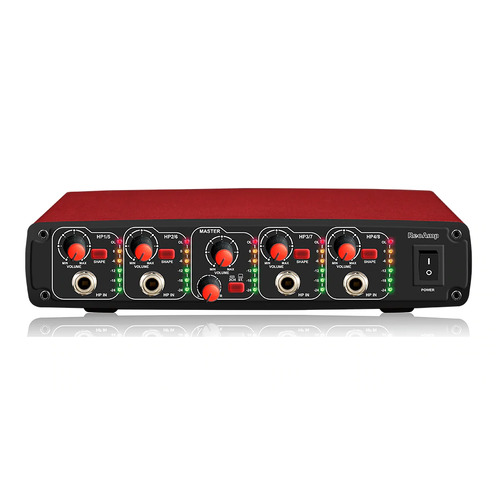

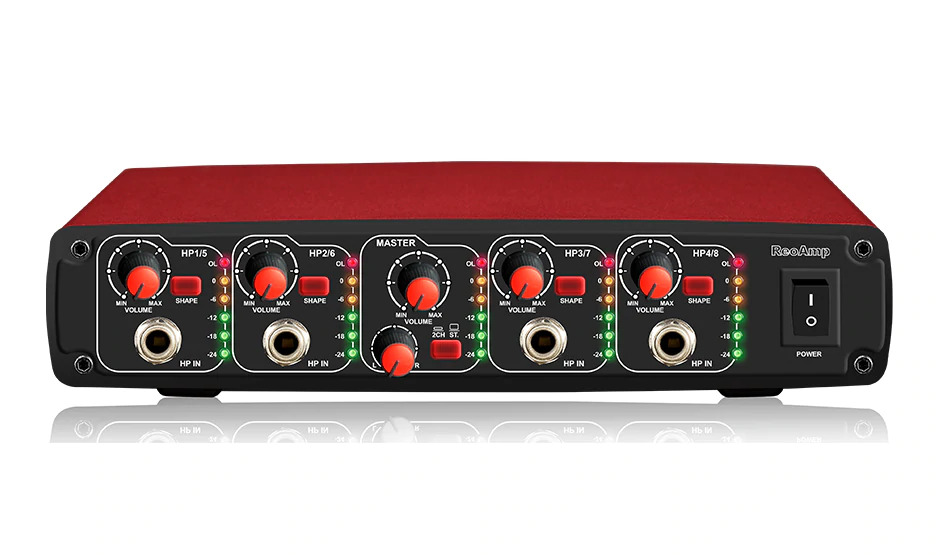

ReoAmp
- Compact 4-channels headphone amplifier with 8 outputs
- Powerful to drive high impedance headphone such as studio reference headphone
- Independent level control and “Shape Out” switch for each channel
- LED output meter for each channel for monitoring
- Master level control with LED metering and L/R pan adjustment
- 2 Channel and Stereo selection switch
- Rugged aluminum construction and adopted ICON’s Reo series racking system
Tech Specs:
| Master section (Front panel) | ||
| Master volume control | Min-Max | |
| Master level meters | 6-segment LED (-24 to OL) | |
| Controls | ST/2CH switch, volume control, balance control | |
| Master section (Rear panel) | ||
| Input | 2 TRS balanced 1/4” (Left-Right) or (Left mono) | |
| Impedance | 15k ohm balanced | |
| Maximum input level | +26dBu balanced | |
| CMRR | Min. 40dB, >55dB @1kHz | |
| Link output | ||
| Connectors | 2x1/4” TRS Balanced (Left-Right) parallel to main input | |
| Maximum output level | Matches main input | |
| Channels | ||
| Impedance | 10k ohm Unbalanced | |
| Maximum input level | +21dBu Unbalanced | |
| Level meters | 6-segment LED (-24 to OL) (load compensating) | |
| Output | 2x1/4” TRS (Left-Right) headphone output per channel | |
| Maximum output level | 240mW @32 ohm, 640mW @66 ohm | |
| Impedance minimum | 8 ohms | |
| Controls | EQ Shape switch, volume control | |
| System | ||
| Frequency response | 10Hz to 32kHz, (+/-3dB) | |
| Signal to noise | >90dB, un-weighted, 22Hz to 22kHz | |
| THD | 0.008% typical @+4dBu, 1kHz | |
| General | ||
| Power supply | ICON AC18v/700mA power adapter | |
| Power consumption | 29W max. | |
| Weight | 3.3kg (7.3lbs) | |
| Dimensions (WxDxH) | 224 x 170 x48 mm | |
| Dimensions (WxDxH) | 8.8” x 6.7” x 1.9” | |
| SKU | ICO-REOAMP |
| Barcode # | 4897022370978 |
| Brand | ICON |
| Unit Of Measure | ea |
