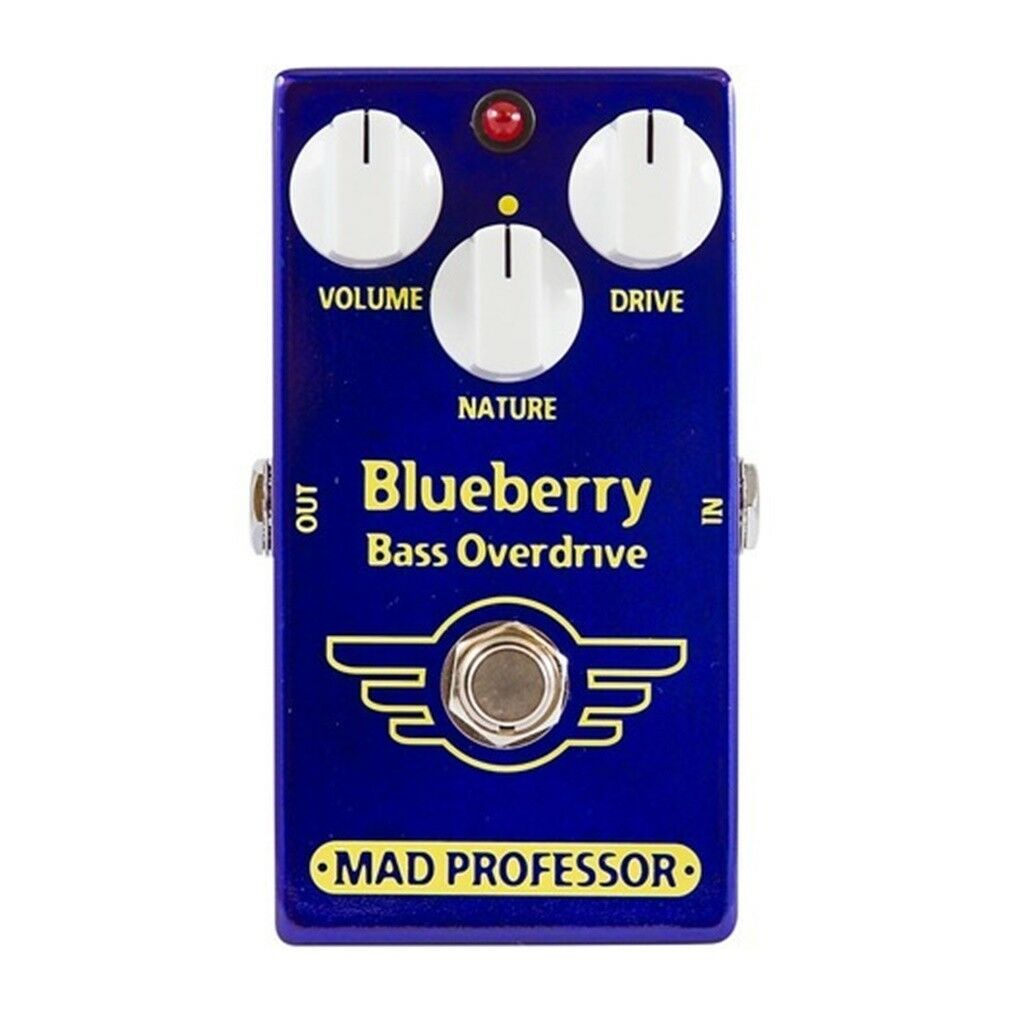

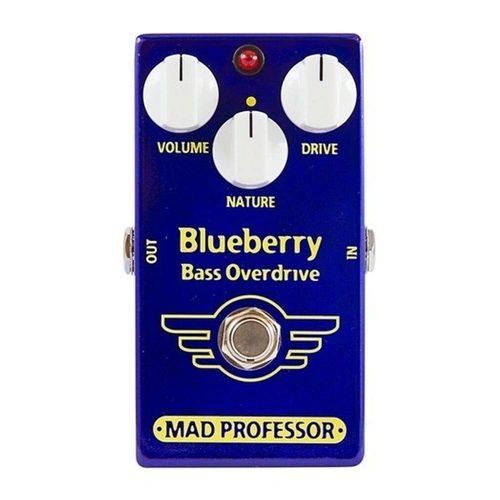

Mad Professor Blueberry Bass Overdrive Bass Guitar Effect Pedal



• Mainly designed for bass guitar

• BBBO can also be used with other instruments for low, dynamically controlled distortion.



Volume:

• Controls output



Drive:

• Sets the amount of distortion and sustain, as well as the type of distortion.

• Lower settings give dynamically controlled overdrive, the unit distorts more the harder you strike the strings and there is no definite clipping point, but rather different shades of distortion as the amplitude changes.

• Higher settings will give more compressed sounds.



Nature:

• A tone control for filtering and to control what register distorts.

• Turning CCW gives more low end and also distortion in the lower registers.

• Turning CW gives an emphasis in the upper midrange for more protruding solo bass tone.



Specifications



• Input impedance approximately 500K Ohms

• Recommended load 50K Ohms

• Current consumption at 9V approximately 4 mA

• Max gain at 1KHz approximately 50 dB

• Supply voltage range 8-12V’s

• True bypass

• 6F22 9V battery or DC eliminator

• 2.1 mm plug
