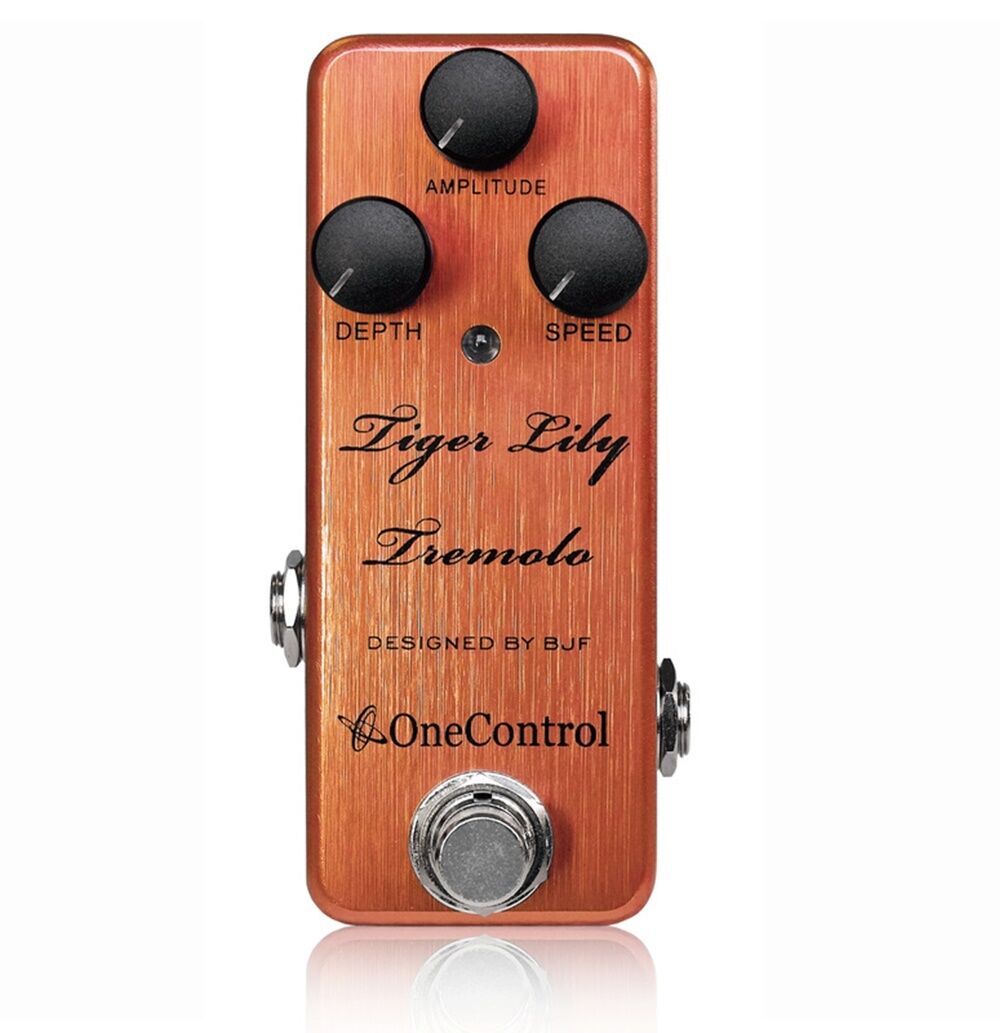

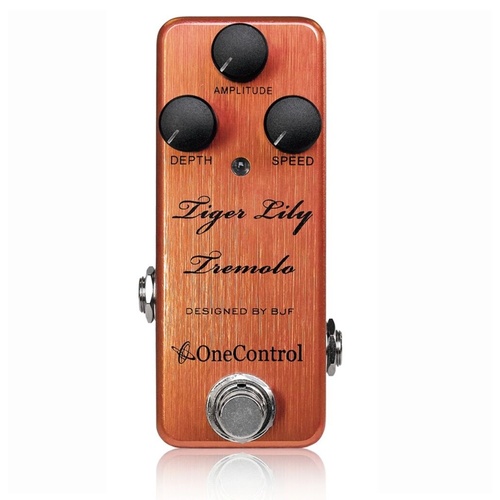

One Control Tiger Lily Tremolo BJF Series FX ​Tremolo Guitar Effects Pedal

Features
The Tiger Lily Tremolo is one of the most versatile tremolo pedals onthe market. This pedal sports a broad spectrum of tremolointensity which will not disappoint. BJFs tremolo design wasinspired by early Gibson and Premier amps, hence, a sine waveoscillator promises an authentic and smooth tremolo.


Specifications

• Input impedance: 180K
• Output impedance: 10K
• Drive voltage: 9V
• Current consumption: 1.5mA
• S/N ratio: -80dB
• Size: 39Wx100Dx31H mm (excluding protrudingparts)
• 47Wx100Dx48Hmm (including protruding parts)
• Weight: Approx. 160 grams
• True-Bypass Switching
• High Quality Aluminum Enclosure
• Power: 9V Battery or Standard DC Power Supply

​Bjorn's Description
​The Tiger Lily is a tremolo pedal that allows forthe mellowest of sounds to appear only at the tail of musical phrases.In order for the pedal to have a broad range, I included severalcontrols to give the user complete control. Amplitude control andDepth affects different parts of the circuit. This uniquecombination allows the player to alter the tremolo sound ever sosubtlety. Whether you want a predominant tremolo sound, or alighter presence, the controls on this pedal will help to make yourvision come to life.

To set a mild tremolo, use minimum depth and adjustthe Amplitude to where the tremolo begins to appear on the end ofphrases.

To set standard tremolo, place the Depth knobat 12 and adjust Amplitude to your liking.
​
To set a heavy tremolo, use maximum Depth and adjustAmplitude to your liking

Phase Switch
The intended use for this switch is to solve problems. Forexample, it allows you to bridge two channels on amplifier typeslike Twin Reverb, where channels are out of phase. How? Followthese steps:

• Plug your guitar into input #1 of one of the channels
• Connect input #2 to the input of TLT
• Connect the output of TLT to either #1 or #2 of the secondchannel on amp and you will hear when both channels have volume thatwhen TLT is set for -180° phase sound will become stronger since nowboth channels of amplifier now are in phase and added in phase.

When using TLT in parallel with another effect, the phase switch can beused to correct the phase so that both parallel chains are added inphase.
