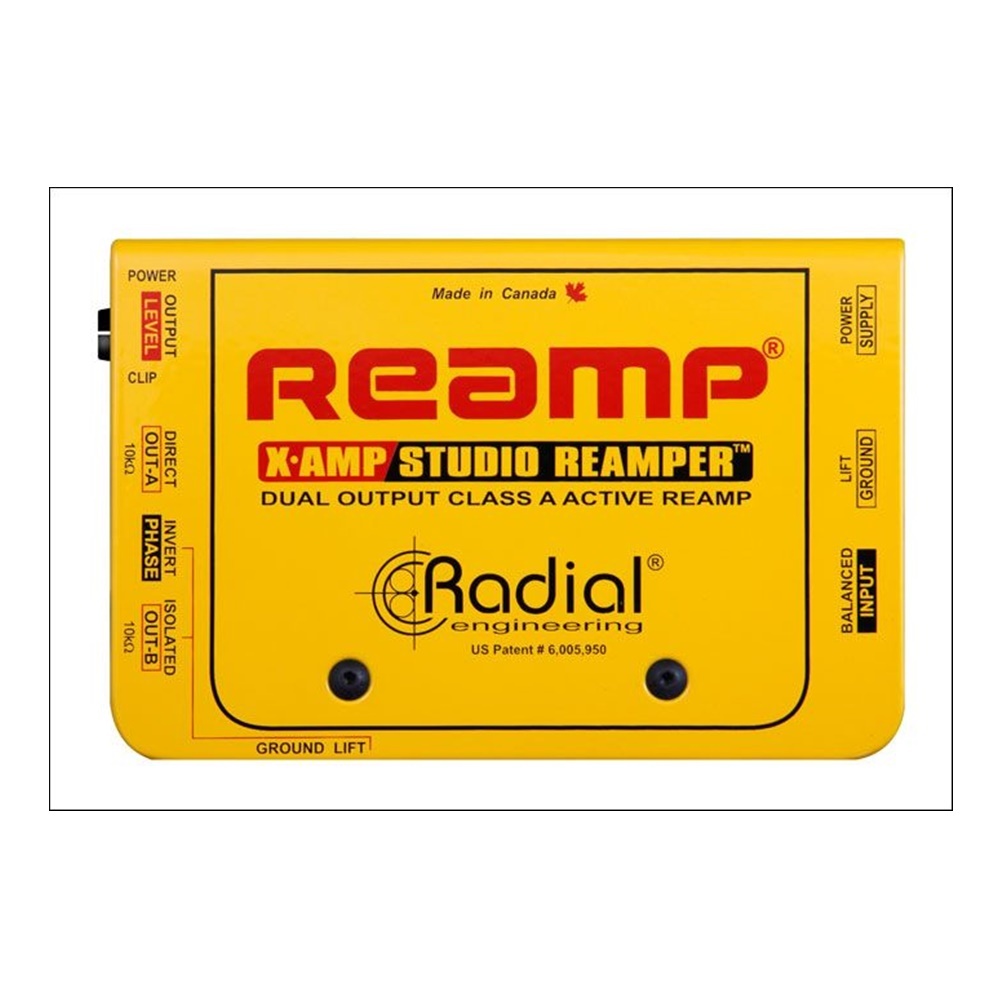

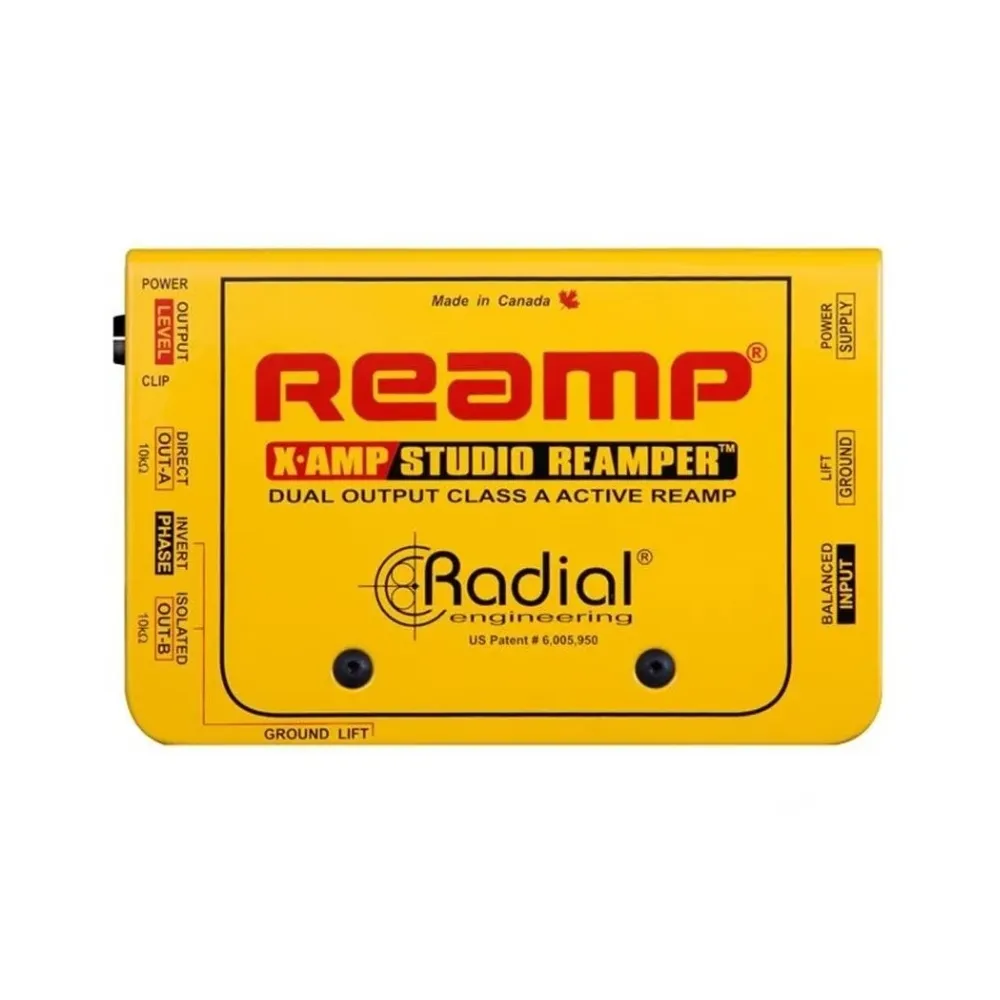

Radial X-Amp 2-channel Active Re-Amping Device Dual Output PSU Inc



An active re-amping device that lets you use a a pre-recorded track from a line level device to drive two guitar amplifiers or effect pedals simultaneously.



Features



• Active re-amping device

• 100% Class-A signal path

• Two outputs to drive two amps

• Input level overload LED indicator

• Isolated output eliminates ground loops

• Variable output level control

• 14-Gauge steel welded I-beam construction makes it impossible to torque the PC board.

• Class-A active circuit for transparency and lowest possible noise.

• Ground lift switch - recessed to prevent accidental use.

• Audio Transformer provides 100% isolation to eliminate hum and noise caused by ground loops.

• Heavy duty connectors and switches - high cycle for reliable performance.

• Military spec PC board with full surface ground plane to reduce RF noise susceptibility.

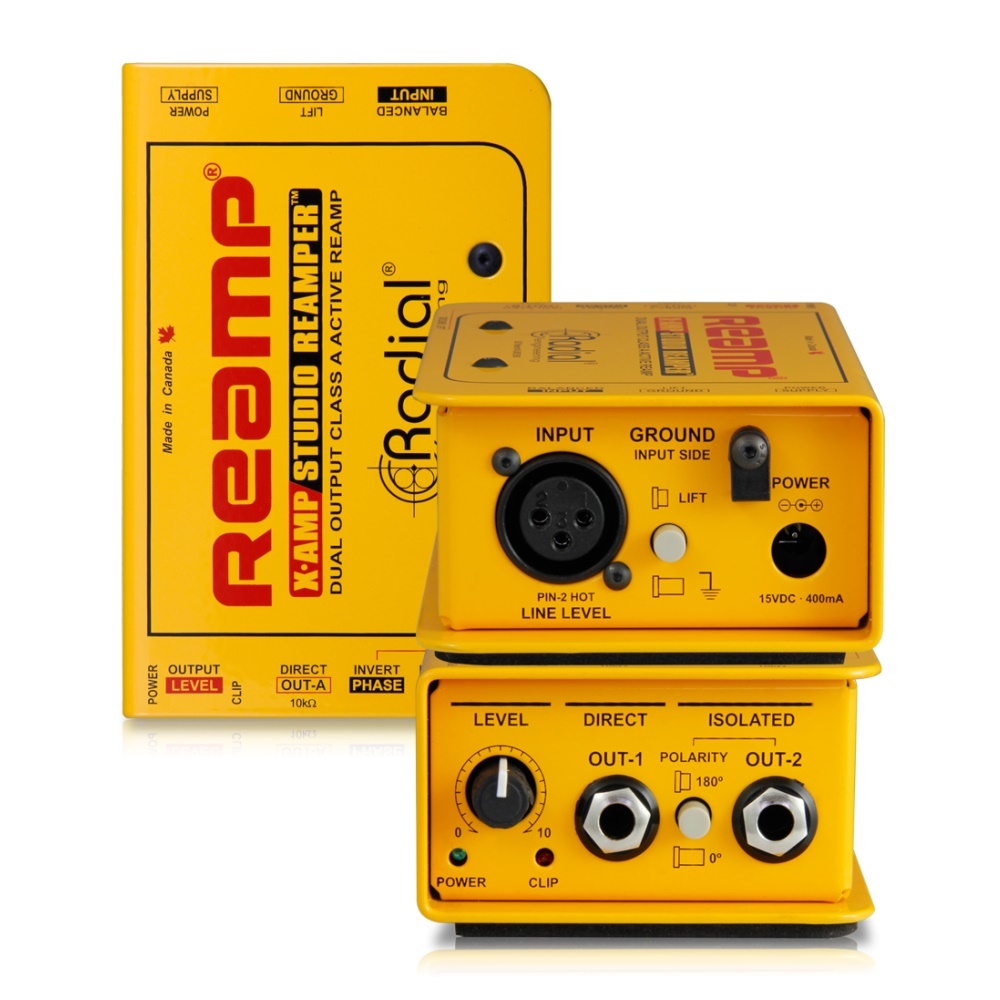

• INPUT - Balanced LINE LEVEL XLR input connector, normally connected to recorder output. A dry guitar track would be a typical source signal.

• GROUND - INPUT SIDE lifts pin-1 ground at the XLR-in to help eliminate ground loops that can cause buzz and hum in a sound system.

• POWER - X-Amp comes equipped with a 15VDC 400mA power supply. Optional 100V, 110V, 220V and 240V PSUs are available.

• Full bottom rubber pad - provides plenty of stay-put wherever you place the X-Amp. Also electrical isolation from amp handles etc.

• Book-cover design creates a protective zone around switches & connectors - Indestructible 14-gauge steel construction with baked enamel finish.

• Power LED - lets you know the X-amp is on and ready to use.

• LEVEL control - adjusts the X-Amp level going to your amp or effects to match that of your guitar; get the exact sound as plugging directly in!

• CLIP LED - provides visual cue of input signal overload.

• OUT-1-1/4" DIRECT feed from the X-Amp's Class-A circuit. This output should always be used to ensure proper grounding.

• POLARITY - 180-degree reverse on the isolated OUT-2 to correct the phase with an amp or device connected on OUT-1.

• OUT-2 - 1/4" ISOLATED 2nd output to another amp or effect(s). Transformer isolation eliminates the hum and buzz caused by ground loops.

• Ground Lift switch on output - lifts ground between OUT-2 and OUT-1. Side mounted switch is recessed to prevent accidental use.
