Key Features:
  • 3-channel (6×6 in/out) USB-C DVS interface for Serato DJ Pro
  • Convert any mixer into a professional digital vinyl system
  • Unlocks full version of Serato DJ Pro and Serato DVS
  • Studio-grade 24-bit / 96kHz sound card with crystal-clear audio and ultra-low latency response
  • 3x inputs for turntables, CD players or AUX-In for live feed signal, switchable in any combination via dedicated dip switches
  • Dedicated GND terminal for grounding turntables
  • Gold-plated, corrosion-resistant audio connections
  • 3x line outputs, including AUX-Out, assignable to the Sampler
  • Easy, accessible direct thru buttons for analogue deck playback
  • All terminals are visible from the top of the unit for easy installation in dark surroundings
  • Bus-powered with optional USB-C DC in port for external power supplycable connection for power and audio
  • 2-port USB hub with power delivery support for connecting further accessories
  • Signal-flow LEDs for all inputs and outputs (L/R) and thru indication for clear visibility
  • Rugged, heavy-duty metal housing with a scratch-resistant black finish for durability on the road and reliability in the club

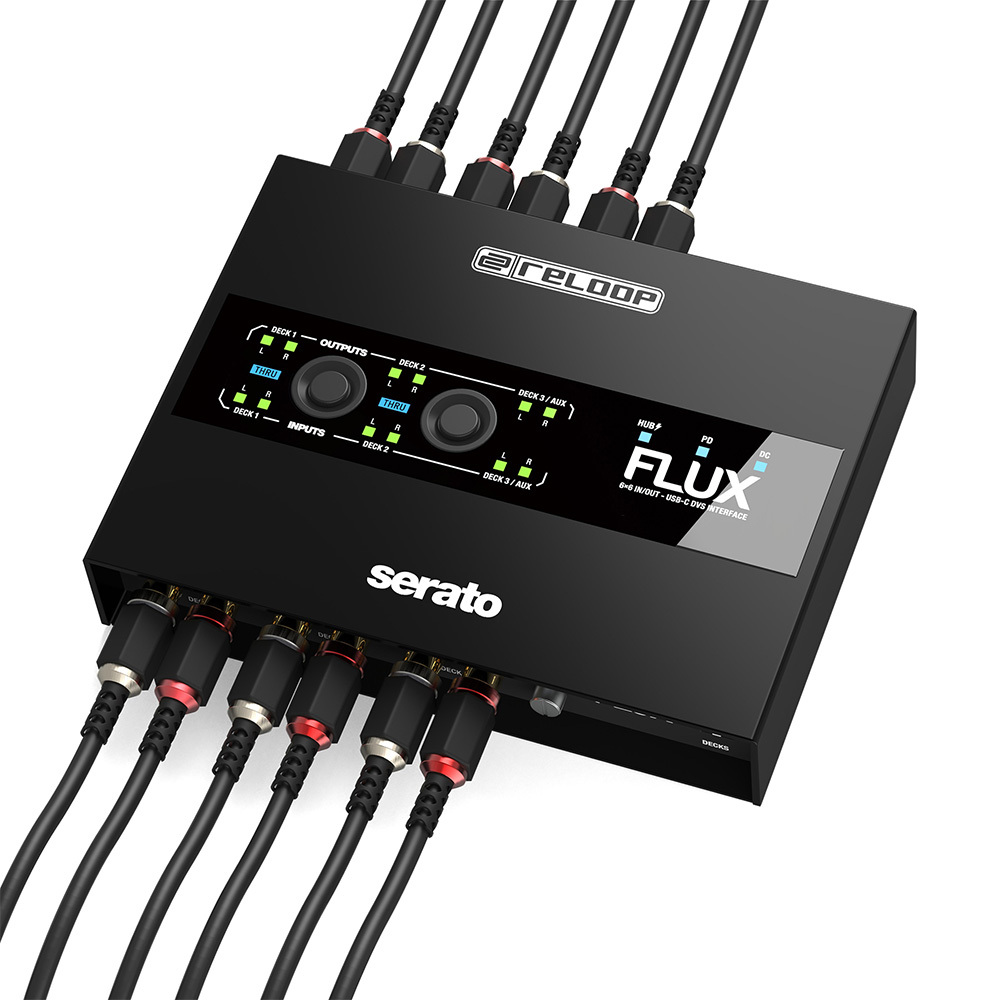

The Reloop Flux is a next-generation USB-C interface for using Serato DJ Pro with turntables, CDJs or other media players. The interface boasts superior audio qualities, a well-designed operating concept and a club-ready design. It can transform any conventional mixer into a professional digital vinyl system.

Maximum Flexibility

Three stereo inputs provide DJs with maximum flexibility. Turntables, CDJs and similar can be used in any combination. The settings are adjusted using discreet DIP switches, which virtually eliminates any chance of accidental switching in the club. The interface includes three stereo outputs, including an AUX out that can be routed to Serato DJ Pro´s internal sampler. Gold-plated, corrosion-resistant RCA jacks ensure high-quality audio transmission.

Full Control

The Flux provides the best possible routing overview thanks to clearly visible signal flow LEDs for all inputs and outputs and a Thru status indicator. Connection status (hub, PD, DC) LED indicators on the top of the interface provide additional control options. The Direct Thru buttons on the top of the interface enable you to quickly and easily activate and disable Thru mode, which allows connected turntables and CDJs to be used conventionally. Navigation through the Serato software is no longer necessary.

Hub Inside

The Flux includes a built-in 2-port USB-A hub for connecting MIDI controllers and other USB accessories. Aside from the expanded connection options, the hub reduces potential connection faults in a busy club environment by keeping the setup connected even without the laptop.

Studio Quality – Anytime, Anywhere

The Flux offers studio quality in the club and wherever it’s needed with 24-bit/96 kHz, high-quality digital/analogue converters and ultra-low latency. For this reason, it’s a superior DVS interface which could also be used as an audio interface in the studio.

Always Powered

The Flux is bus-powered by a computer, so there’s minimal wiring required for audio and power cables. The DVS interface can also be powered by external power sources through the USB-C DC input, allowing turntables and CDJs to be used in Thru mode even without a computer connected. The Flux’s second USB-C port provides Power Delivery support for other USB-C devices (max. 60 W), such as a MacBook.

Robust and Roadworthy

The interface has a durable metal housing with a scratch-resistant, black surface, ensuring a long service life even with heavy use. The extended edge design keeps the connections well-protected.

Plug & Play For Serato DJ Pro

The Reloop Flux unlocks the full version of Serato DJ Pro and Serato DVS. This means DJs can get up and running with the market-leading digital vinyl system in no time. Additional licences are not necessary.

Technical Data



Line:

Type: USB DVS Interface
Sound Card: 24-bit / 44.1kHz, 48kHz, 96kHz
THD+N: More than +7 dBV (Line)
More than -25 dBV (Phono)
Max Gain: +4 dB ± 2 dB (Line)
+36 dB ± 2 dB (Phono)
S/N Ratio: More than 83 dB (Line)
More than 73 dB (Phono)
Compatible Software: Serato DJ Pro and Serato DVS
*Supports Serato NoiseMap™ control vinyl (not included)

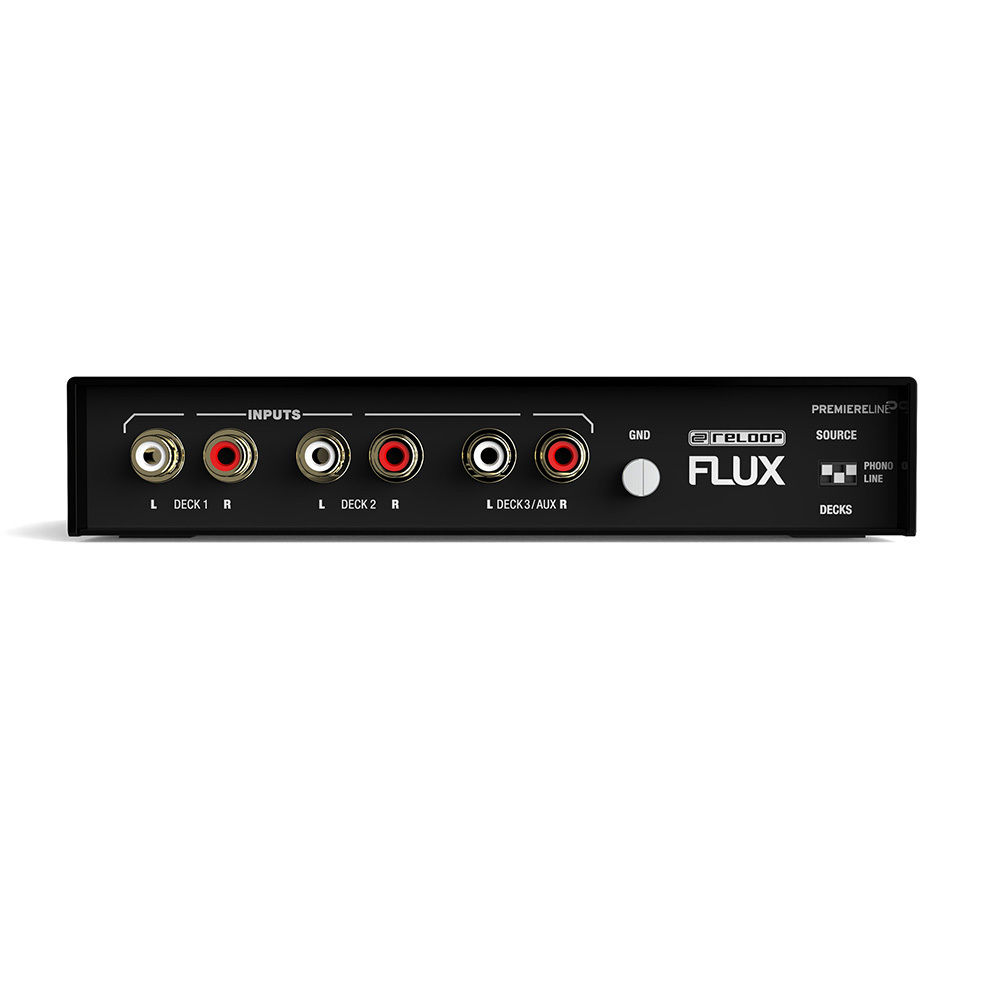

Inputs: 3x Stereo RCA (phono/line selectable)
Outputs: 3x Stereo RCA (line)
Controls: 3x dipswitches (phone/line), 2x Dedicated “Thru” buttons
Power Output: 2 x 0.8 A = 8 W
Power Supply: BUS Powered
*For external power a 5V / 1A – 20V / 3A is recommended
Maximum Power Throughput: 60W
Dimensions: 160 x 120 x 34 mm
Weight: 0.85 kg
SKU FLUX
Brand RELOOP
Unit Of Measure ea
