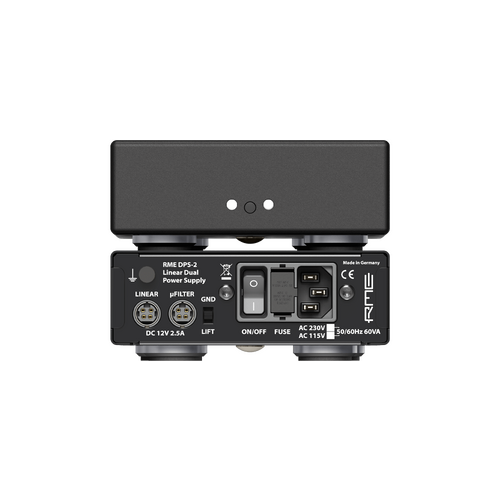

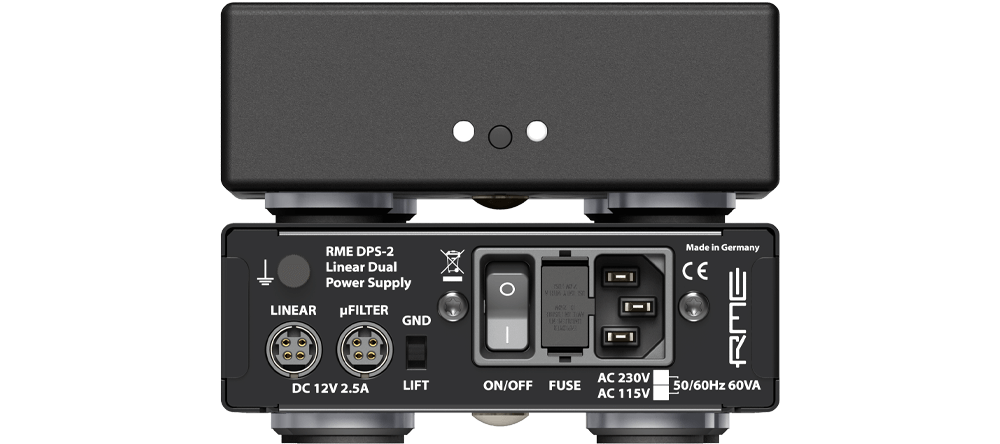

The new DPS-2 is an exceptional linear power supply that boasts not only impressive technical data but also a wide range of unique and highly useful features. For instance, the compact device features two differently filtered outputs. The housing and front panel of the DPS-2 are based on the ADI-2 series, accommodating RME's innovative circuitry design on only half rack width.

The output Linear is a traditional DC output but is equipped with multi-stage passive and active filtering including a 30,000 ?F capacitor bank, a ferrite choke as well as an active output filter with a hybrid voltage regulator.

The second output is based on RME's proprietary ?Filter technology. Here the signal from the pre-filtered Linear output is also processed by highly efficient active filters to achieve an exceptionally clean DC output with just a few µV (micro-volts) noise. In addition the output has sensor technology, which measures and adapts the output voltage directly at the DC connector of the supplied DC cable. Two DC Sensor connection cable with lockable & non-lockable DC plug 2.1 x 5.5 mm, (1 m) are included.

As a result the output impedance and load regulation are extremely low, thus ensuring a clean output voltage of +12.0 V at 2.5 A load, completely avoiding any load-dependent voltage drops. Please note: only one output is usable at a time.

The additional use of both a 2-stage HF filter and DC filter on the AC mains side enables the DPS-2 to deliver optimum performance without interference noise. This is also ensured by the 60 VA audio toroidal transformer with additional isolation winding and magnetic tape shielding, guaranteeing absolutely hum- and noise-free operation in any situation.

Features

• Dual Filtered Outputs: Includes a traditional DC output with multi-stage passive and active filtering, and a second output with RME's proprietary ?Filter technology for exceptionally clean DC output
• Advanced Filtering: Equipped with a 30,000 ?F capacitor bank, ferrite choke, and active output filter with a hybrid voltage regulator
• Low Noise Output: Delivers clean DC output with just a few µV (micro-volts) of noise
• Sensor Technology: Measures and adapts the output voltage directly at the DC connector of the supplied DC cable for stable voltage and low impedance
• High Output Performance: Provides a stable output voltage of +12.0 V at a 2.5 A load, avoiding load-dependent voltage drops
• AC Mains Filtering: Features a 2-stage HF filter and DC filter on the AC mains side to eliminate interference noise
• Toroidal Transformer: 60 VA audio toroidal transformer with additional isolation winding and magnetic tape shielding for hum- and noise-free operation
• GND Lift Switch: Disconnects DC ground from PE (protective earth) to eliminate ground loop noise without affecting safety
• Ground Terminal: Includes a ground terminal screw connection for alternative earthing options
• Status LEDs: Two status LEDs on the front panel provide a quick overview of operating modes and error conditions (power, thermal and power overload, undervoltage, short, active output)
• AutoDark Mode: Recessed push switch enables AutoDark mode, keeping LEDs off except during error states and power-up
• Comprehensive Manual: Comes with a detailed 24-page manual with technical data, measured values, diagrams, and background information on linear and switching power supplies
• Compact Design: Fits within a half-rack width, based on the ADI-2 series housing and front panel design
• Two DC Sensor Connection Cables Included: Lockable & non-lockable DC plug 2.1 x 5.5 mm, (1 m)
