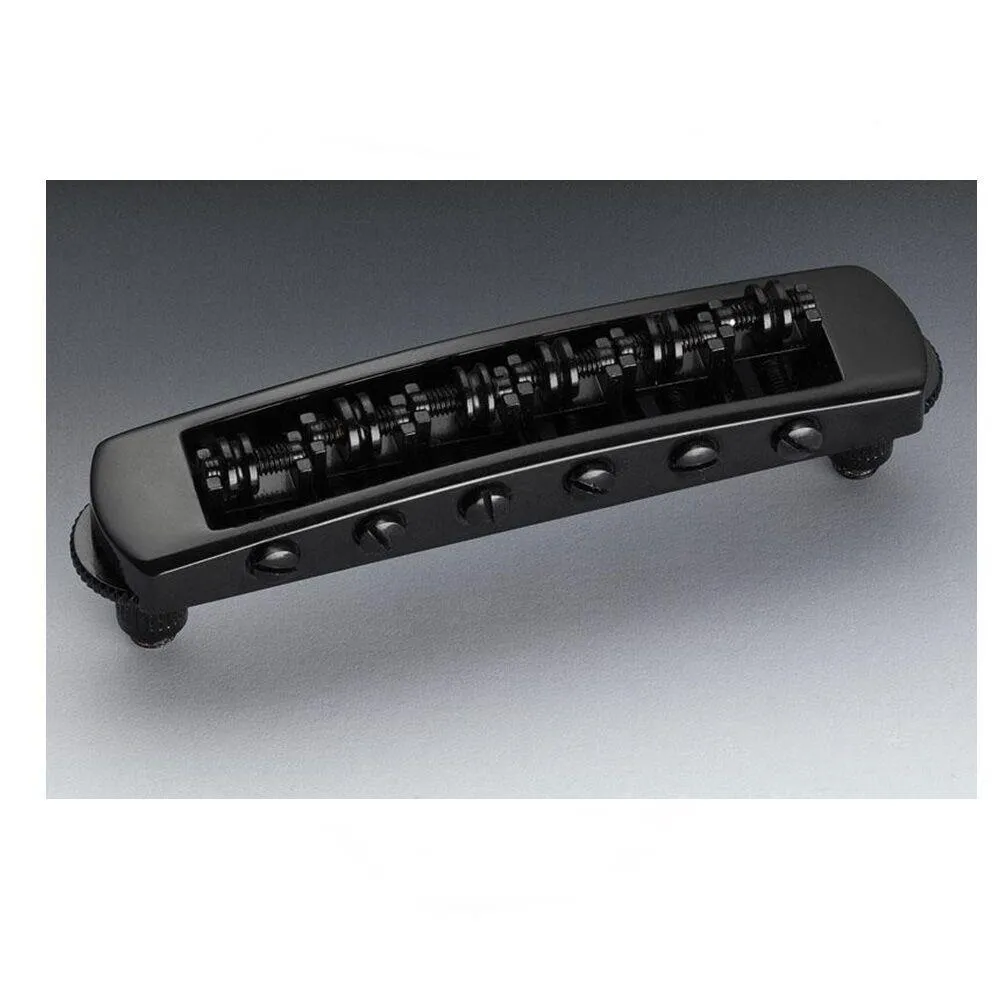

High-quality bridge for all Les Paul™* type guitars.

Compatible with post spacings from 74.0 – 74.5 mm

Adjustable for height, intonation and string spacing

Low-friction roller saddles for excellent tuning stability – perfect for Bigsby™* vibratos

Comes with 2 different type saddle rollers to suit tone and string bending requirements: V-shaped for high strings and U-shaped for low strings

Saddles are from brass

Optional: 2 rollers per space for 12-string guitar

Slant angle to be determined by guitarmaker based on scale length and string gauge.

(*Les Paul is a protected trademark owned by Gibson Musical Instruments Corporation

Bigsby is a protected trademark owned by Fred Gretsch Enterprises).

technical specification

distance height adjustment screws 74 – 74,5mm, string spacing E-e 48,5 – 57,5mm, string spacing individual 9,7 – 11,5mm, string radius 12“ (usable for fretboard 12-16 inch), minimal G/d string height above body 12,5mm, maximum string gauge 52, weight 58g (90g with accessories), for lefty: no
