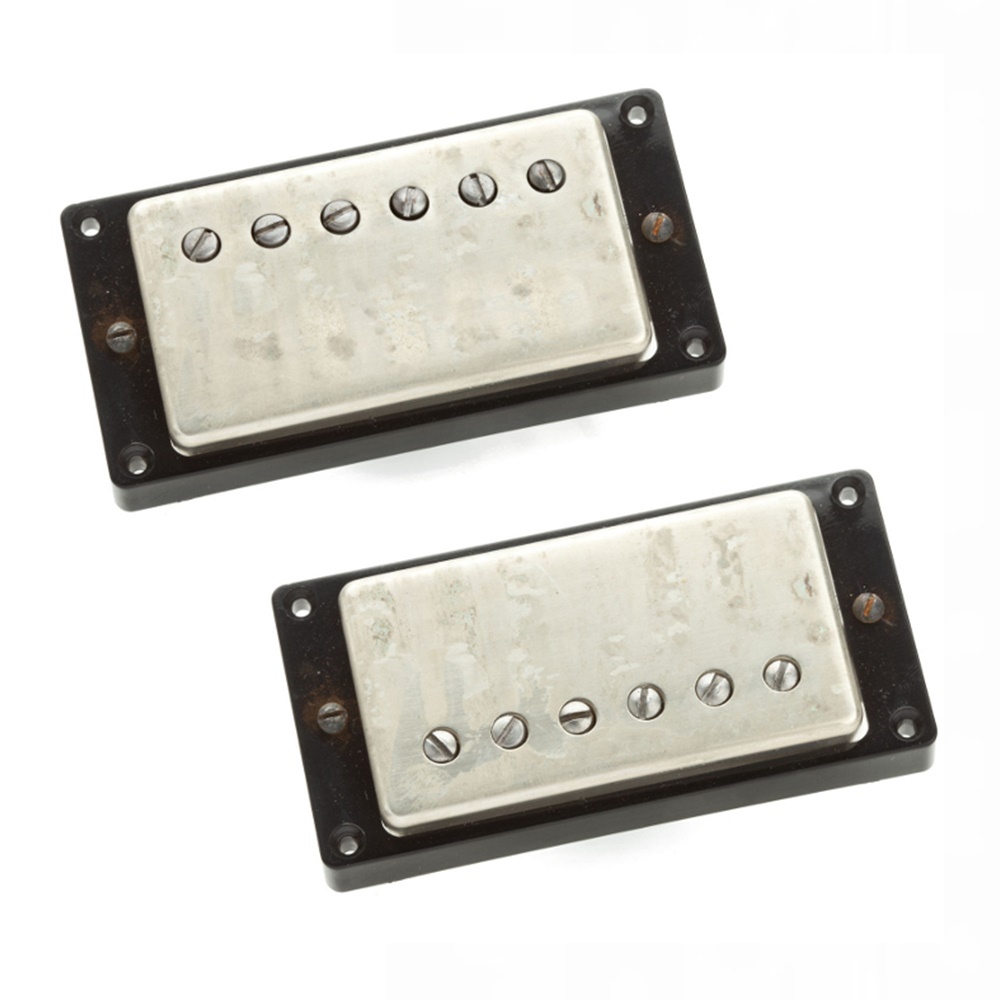

Seymour Duncan made thismodel to look and sound like a well-worn '50s humbucker as originallydesigned by Seth E. Lover. The pickups are built to traditionalstandards. Each has its own character and DC resistance, just like theoriginals. I wanted to give the player a pickup that looks like it'sbeen played regularly for 40 years, so I aged the nickel silver coverand the poles. Included is a front-tapered mounting ring and the screwsthat go with it. The pickup is not wax potted, which retains thevintage sound and appearance. Crafted by hand in my "Antiquity" room,each pickup is signed on the magnet and bottom plate to guarantee youare getting an original Seymour W. Duncan Antiquity™.
Antiquity™Humbuckers Neck
width: 1.494
length: 2.750
max height with leg: 1.095
mounting ring width: 1.756
mounting ring length: 3.537
mounting ring max height: .235
minimal height: .150
adjustable pole piece length: .750
height adj. screw height: 1.250
magnet calibration: S-adj. side
magnet gauss: 15-20 gauss
DC Ohms: 7.8K
inductance: 4.22 henries
Q: 2.29


Like the neck position model, the bridgeposition humbucker is a faithful replica of the great sounding "patentapplied for" humbuckers that Seth E. Lover designed in 1955. The pickupcomes with slight variations in DC resistance, just like the old ones.I decided to wind the bridge pickup a little hotter and better balancedfor its position. The mounting ring is slightly higher for theincreased pickup height. The pickup is not wax potted to retain thesound and appearance of the originals. Again, each pickup is built byhand in my "Antiquity" room and every magnet and bottom plate aresigned to guarantee that you are getting an original Seymour W. DuncanAntiquity. Hookup wire includes the classic braided "push back" clothbraid wire.

Antiquity™Humbuckers Bridge
width: 1.494
length: 2.750
max height with leg: 1.095
mounting ring width: 1.756
mounting ring length: 3.537
mounting ring max height: .420
minimal height: .350
adjustable pole piece length: .750
height adj. screw height: 1.250
magnet calibration: S-adj. side
magnet gauss: 15-20 gauss
DC Ohms: 8.52K
inductance: 5.12 henries
Q: 2.38



Angkor Music - Electronic upgrades.



Angkor Music - Guitar walkthrough.



SKU 11018-05-NC
Barcode # 800315040544
Brand Seymour Duncan
Shipping Weight 0.4190kg
Shipping Width 0.130m
Shipping Height 0.040m
Shipping Length 0.166m
Shipping Cubic 0.000863200m3
Unit Of Measure ea
