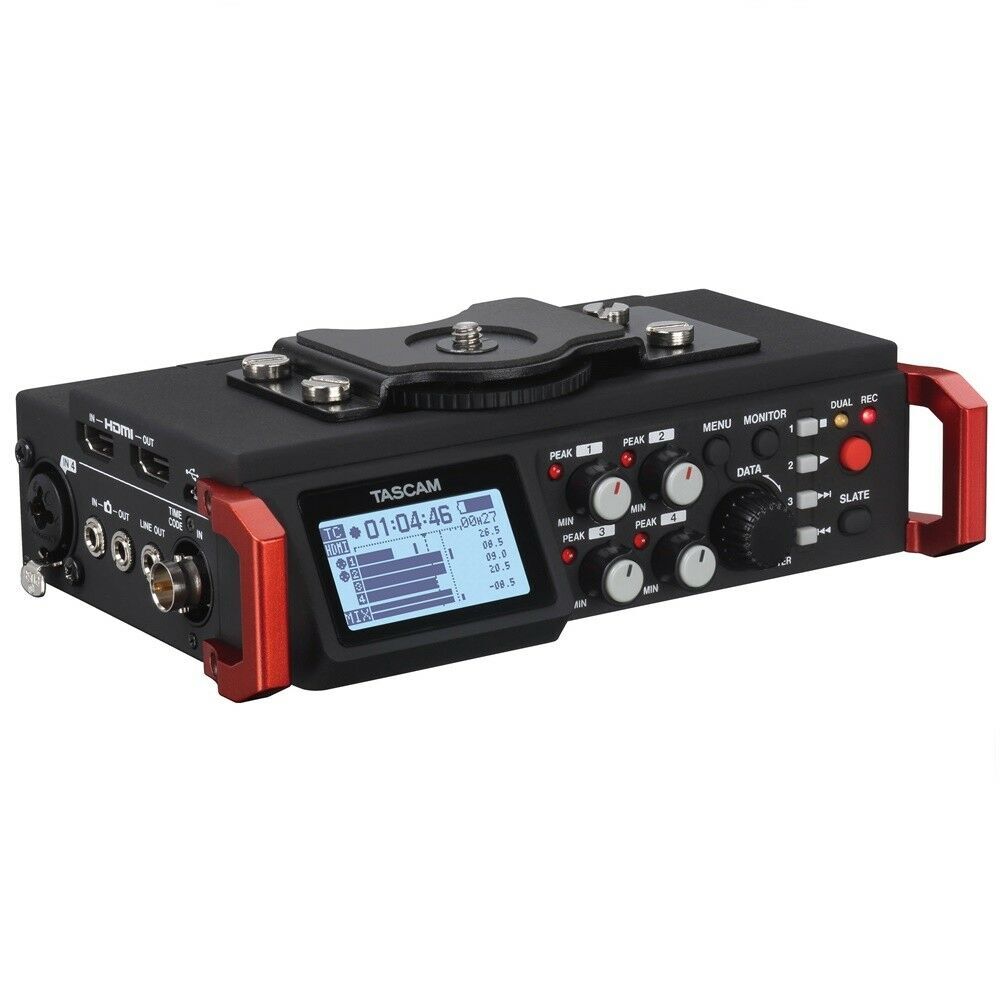

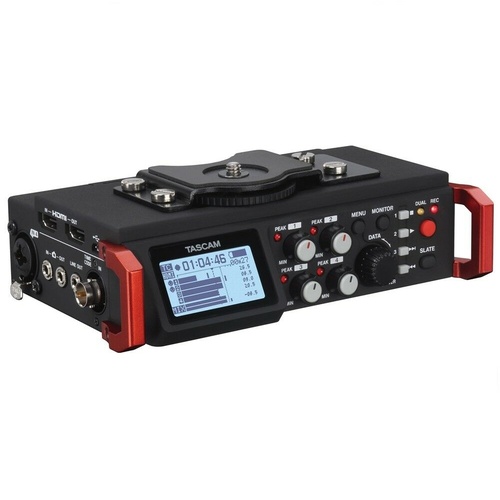

The DR-701D is TASCAM's flagship recorder for single-shooter video production. A timecode generator is included for location reference, which can be jam synced from a SMPTE generator, camera, or smart slate. The HDMI in and out allows a DSLR camera to start recording on both devices, and video clock prevents drift between sound and picture.

Four mic inputs can be individually recorded and mixed to a stereo track, for a total of six-track recording. For additional tracks, multiple units can be cascaded together. The lightweight yet rigid chassis is forged from a magnesium alloy. Tripod mounts on the top and bottom of the unit allow the unit to mount under a camera, attach to a follow-focus cage, or used stand-alone.

Designed for the needs of professional filmmakers, television producers, advertisers, and documentarians, the DR-701D packs high quality multitrack recording into a package compact enough for use with any camera.

FEATURES:

  • SD/SDHC/SDXC cards used for recording media.
  • 6 maximum simultaneous recording tracks
  • MONO, STEREO, 2MIX, DUAL MONO, DUAL ST and DUAL2MIX recording modes
  • Recording formats: 16/24-bit, 44.1/48/96/192kHz (WAV/BWF) (192kHz only for two-track recording)
  • Built-in original TASCAM HDDA mic preamps provide high audio quality
  • Input levels can be adjusted separately for each track

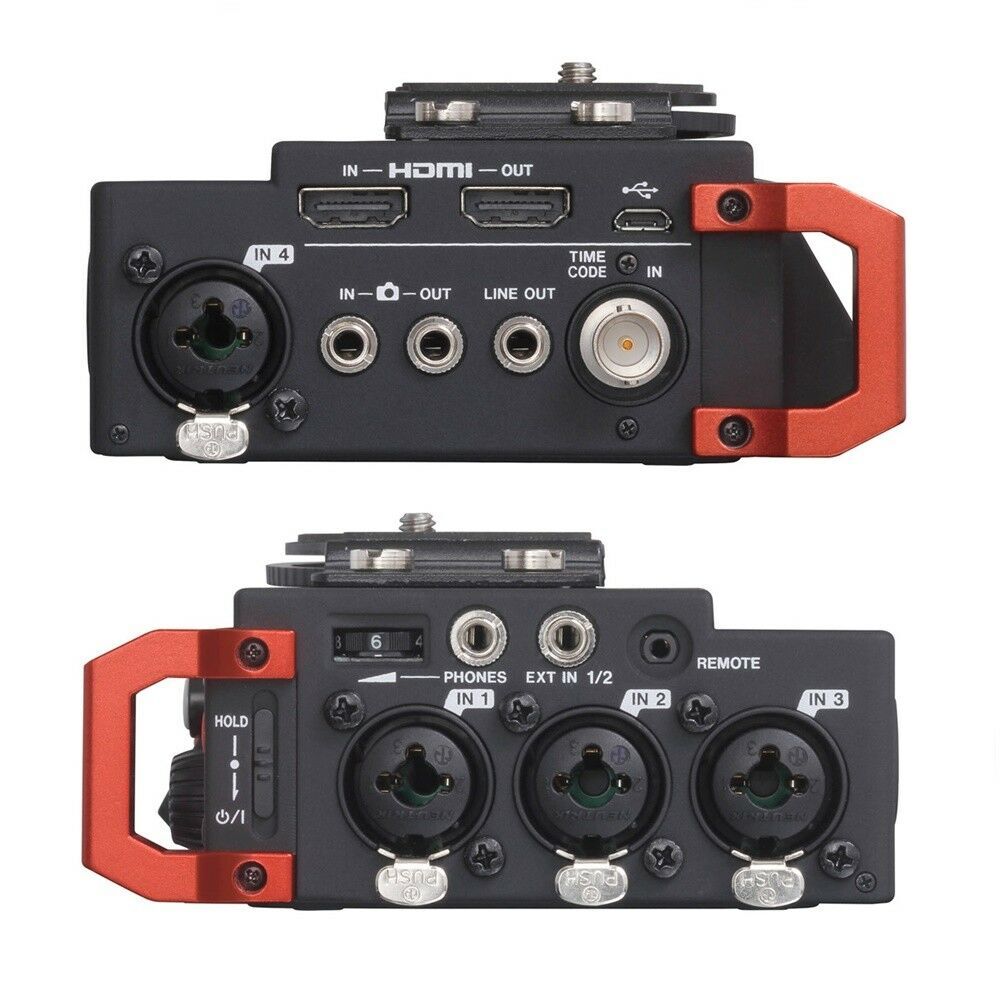

  • XLR/TRS inputs support +4dBu line level and 24/48V phantom power
  • Clock and record start/stop can be synchronized with a camera using the HDMI port
  • DR-701D audio signal can be output to an external camera or recorder from the HDMI OUT or line output
  • Cascade function using HDMI connections allows multiple DR-701D transport and monitoring operations
  • SMPTE Timecode can be input through the TC IN connector to add recording start times to files
  • Timecode generator (RTC) allows recording start times to be added to files even when there is no timecode input
  • Plug-in power mics and high output mics (EXT IN 1/2) supported
  • OUT (CAMERA OUT) connector can output audio mixed by the DR-701D to a DSLR camera
  • IN (CAMERA IN) connector enables monitoring the sound from a DSLR camera through the DR-701D
  • High quality audio output through a line output jack separate from the headphones jack
  • Headphones jack with 50mW+50mW maximum output
  • Tripod attachment threads (bottom), camera screw attachment that can be installed or removed with a coin (top) and shoe mount (top) included
  • Handles on the left and right sides of the front protect the control surface and also enable attachment of a shoulder strap
  • Transport and SLATE buttons made of rubber suppress noise during operation
  • HOLD switch prevents misoperation
  • 128×64-dot graphic LCD with backlight
  • LED lights have high visibility even in direct sunlight
  • High-speed transfer of files to computers possible using USB 2.0
  • Micro-B type USB cable included
  • Powered by 4 AA batteries, USB bus power or a PS-P515U AC adapter (sold separately)
  • BP-6AA external battery pack (sold separately) enables operation for even longer times
  • Optional RC-3F foot switch and RC-10 wireless remote control can be connected (both sold separately)
  • Built-in mixer enables pan and level adjustments as well as solo monitoring and can output a mix of 4 channels
  • GANG function allows the levels of multiple channels to be controlled simultaneously
  • Individual channel trim settings shown
  • 5-position low-cut filter (50/80/120/180/220 Hz) cuts unwanted low frequencies
  • Multiband limiter automatically adjusts input overloads (stereo-linking possible with 1/L and 2/R)
  • Delay function can compensate for distances between mics (+/-150 ms)
  • Mid-side decoder function enables use with mid-side stereo mics
  • Slate tone insertion functions (AUTO/MANUAL)
  • Slate tone insertion points can be selected (recording start or recording start and stop when slate AUTO function used)
Recording mediaSD card(64MB to 2GB), SDHC card(4GB to 32GB), SDXC card(48GB to 128GB)
Recording format
WAV44.1k/48k/96k/192k Hz, 16/24-bit
BWF44.1k/48k/96k/192k Hz, 16/24-bit
Number of input channels
44.1k/48k/96k Hz4 maximum
192kHz2 maximum
Number of recording tracks
44.1k/48k/96k Hz6 maximum
192kHz2 maximum
Analog audio inputs*The maximum input level the level that the input knob can be adjusted and a digital full-scale(0dBFS) signal can be input without distorting.
*The minimum input level is the level that the input knob can be adjusted and a -20dBFS signal can be input.
IN 1, IN 2, IN 3, IN 4XLR can provide phantom power
ConnectorsXLR-3-31 (1:GND, 2:HOT, 3:COLD)
6.3mm(1/4")standard TRS jacks(tip:HOT, Ring:COLD, Sleeve:GND)
Input gain”LOW”/”MID”/”HI”/”HI+”時
Input impedance2k ohms
Phantom power48V +/-4V(10mA/CH), 24V +/-4V(10mA/CH)
Maximum input level+4dBu
Minimum input level-72dBu
MIC input gainTRIM MAX
LOW+20dB
MID+40dB
HI+52dB
HI++64dB
Input gain"LINE"時
Input impedance10k ohms以上
Nominal input level+4dBu
Maximum input level+24dBu
EXT IN 1/2
Connector3.5mm(1/8")stereo mini jack (can provide plug-in power)
Input impedance10k ohms
Maximum input level+10dBV
Minimum input level-50dBV
MIC input gainTRIM MAX
LOW+3dB
MID+11dB
HI+26dB
HI++38dB
IN
Connector3.5mm(1/8")stereo mini jack
Input impedance10k ohms
Nominal input level-10dBV
Maximum input level+6dBV
Analog audio outputs
LINE OUT
Connector3.5mm(1/8")stereo mini jack
Output impedance200 ohms
Nominal output level-14dBV
Maximum output level+6dBV
OUT
Connector3.5mm(1/8")stereo mini jack
Output impedance200 ohms
Nominal output level-44dBV
Maximum output level+6dBV
PHONES
Connector3.5mm(1/8")stereo mini jack
Maximum output50mW + 50mW
Control inputs/outputs

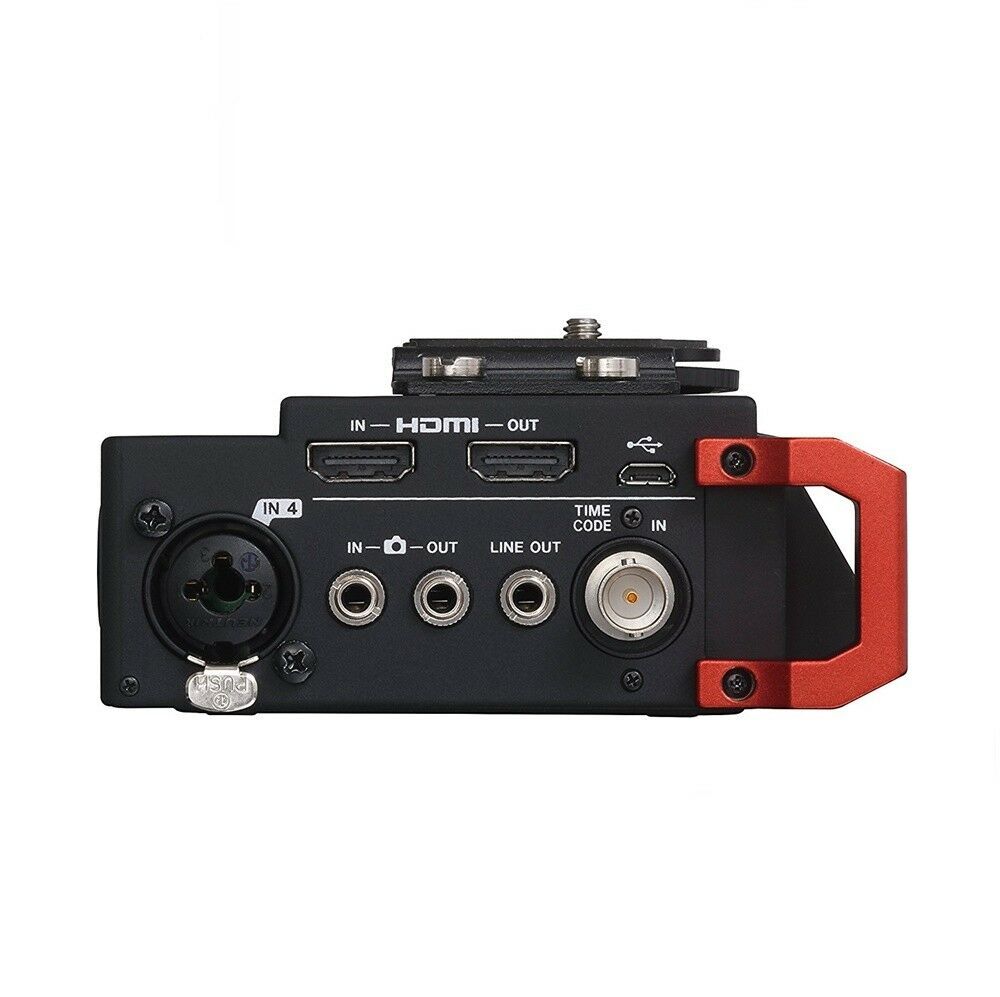

HDMI IN/OUT
ConnectorsType A receptacle
USB
ConnectorMicro-B
FormatUSB2.0 HIGH SPEED mass storage class
TIMECODE IN
ConnectorBNCConnector
Signal voltage amplitude0.5Vp-p to 5Vp-p
Input impedance10k ohms
FormatSMPTE 12M-1999 compliant
REMOTE
Connector2.5mm TRS jack
Power4 AA batteries(Alkaline, NI-MH or lithium),
AC adapter(TASCAM PS-P515U, sold separately),
External battery pack(TASCAM BP-6AA, sold separately)
Power consumption6.5W(maximum)
Current consumption (USB bus power)1.3A(maximum)
Battery operation time(continuous operation)2ch WAV, 48kHz, 16bit rec
*When using phantom power, the operation time might be reduced depending on the mic being used.
DR-701D
Lithium
(Energizer ULTIMATE LITHIUM)
About 7:30 : Built-in mic used for 3/4ch, Phantom power unused,HDMI not connected
About 6:30 : 1/2ch used, 3mA phantom power used for 2ch, HDMI not connected
About 3:30 : 1/2ch used, 3mA phantom power used for 2ch, HDMI input connected(1080/60i)
NI-MH batteries
(eneloop)
About 4:00 : Built-in mic used for 3/4ch, Phantom power unused,HDMI not connected
About 2:30 : 1/2ch used, 3mA phantom power used for 2ch, HDMI not connected
About 2:00 : 1/2ch used, 3mA phantom power used for 2ch, HDMI input connected(1080/60i)
Alkaline batteries
(EVOLTA)
About 3:45 : Built-in mic used for 3/4ch, Phantom power unused,HDMI not connected
About 2:00 : 1/2ch used, 3mA phantom power used for 2ch, HDMI not connected
About 1:30 : 1/2ch used, 3mA phantom power used for 2ch, HDMI input connected(1080/60i)
DR-701D + BP-6AA*BP-6AA is using the alkaline batteries (EVOLTA).
Lithium batteries
(Energizer ULTIMATE LITHIUM)
About 12:30 : Built-in mic used for 3/4ch, Phantom power unused,HDMI not connected
About 7:30 : 1/2ch used, 3mA phantom power used for 2ch, HDMI not connected
About 5:30 : 1/2ch used, 3mA phantom power used for 2ch, HDMI input connected(1080/60i)
NI-MH batteries
(eneloop)
About 9:30 : Built-in mic used for 3/4ch, Phantom power unused,HDMI not connected
About 7:00 : 1/2ch used, 3mA phantom power used for 2ch, HDMI not connected
About 4:00 : 1/2ch used, 3mA phantom power used for 2ch, HDMI input connected(1080/60i)
Alkaline batteries
(EVOLTA)
About 9:00 : Built-in mic used for 3/4ch, Phantom power unused,HDMI not connected
About 6:30 : 1/2ch used, 3mA phantom power used for 2ch, HDMI not connected
About 3:45 : 1/2ch used, 3mA phantom power used for 2ch, HDMI input connected(1080/60i)
Dimensions169(W)×57.3(H)×113.5(D)mm (with the top adapter attached)
Weight654g (including batteries) / 567g (without batteries)
Operating temperature0˚C to 40˚C
Standard accessoriesUSB cable, Camera attachment bracket screw hole covers × 6 Owner's Manual (including warranty)
Audio performance
Frequency response20-20kHz +0.5/-1dB(LINE IN to LINE OUT, Fs48kHz, JEITA)
20-40kHz +0.5/-1dB(LINE IN to LINE OUT, Fs96kHz, JEITA)
20-80kHz +0.5/-5dB(LINE IN to LINE OUT, Fs192kHz, JEITA)
Distortion0.007% or less(MIC IN to LINE OUT Fs44.1k/48k/96k/192k Hz, JEITA)
S/N ratio100dB or more
(MIC IN to LINE OUT, -10dBu入力, 1kHz, Fs44.1k/48k/96k/192k Hz, JEITA)
Equivalent input noise-124dBu or less
