Upgrade your bridge and stop tailpiece with TonePros. One of the electric guitar's easiest upgrades, TonePros' locking functionality instantly improves any stock bridge system. For most guitars, it's a drop in replacement. The TonePros LPM02 set is designed for "fat post", metric-style and import guitars and comes with a notched bridge saddles ready for instant installation.

What's the easiest, most simple way to improve any electric guitar? Upgrading to top-quality hardware! Increasing sustain and improving tuning stability, TonePros' patented locking functionality makes guitars come alive with rich, vibrant harmonics, transferring more resonance from strings to hardware to guitar, causing superior overall tone. Simply put, TonePros' locking hardware makes the entire guitar ring as one solid piece.

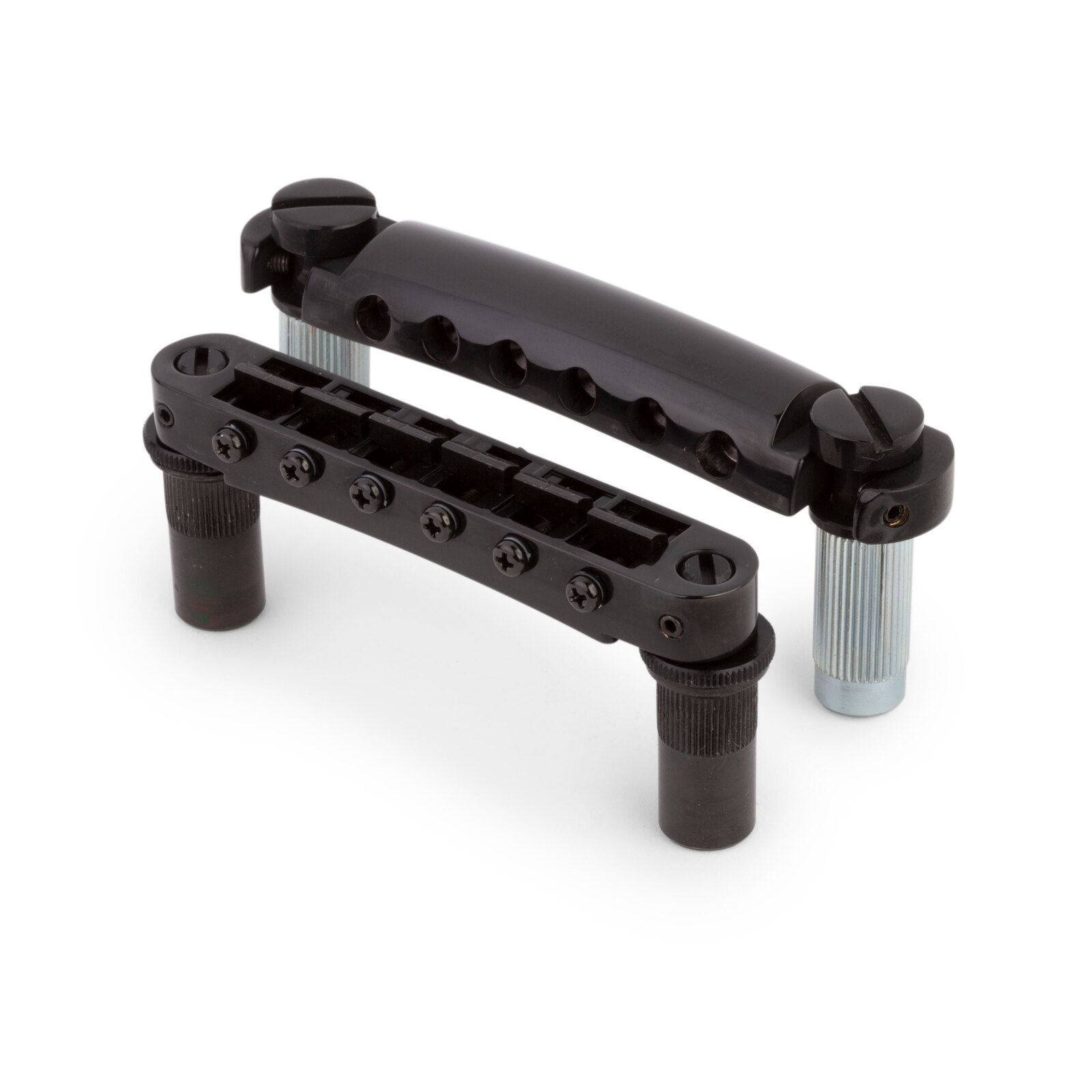

Includes the TonePros T3BT Tune-o-matic bridge and T1Z stop tailpiece, posts and bushings.

  • String spread2-1/16"
    (52mm)
  • Saddle radius12"
    (304.80mm)
  • Post spacing2-29/32"
    (73.5mm)
  • Post threadsM8 x 1.25
  • TonePros T3BT features:
  • Notched saddles
  • Closed-bottom construction
  • Includes posts and bushings
  • Zamak body with brass saddles and posts for deep, rich tone
  • Adjustable with Philips head screwdriver

T1Z Stop Tailpiece specs:

  • Stud spacing3-7/32"
    (82mm)
  • Post threads5/16-24
  • TonePros T1Z Stop tailpiece features:
  • Zamak body with brass studs for deep, rich tone.



About bridge & tailpiece measurements

Bridge and Tailpiece reference image

String spread is the distance between the centers of the outer strings on a bridge or tailpiece.

Saddle radius determines the arc formed by all the individual saddle heights, and is similar to the measurement of a fretboard.

Stud/post spacing is the distance between the centers of the mounting posts of a bridge or 'stop' tailpiece.

SKU LPM02-B
Barcode # 877262000099
Brand TONEPROS
Shipping Weight 0.2200kg
Shipping Width 0.130m
Shipping Height 0.020m
Shipping Length 0.150m
Shipping Cubic 0.000390000m3
Unit Of Measure ea
