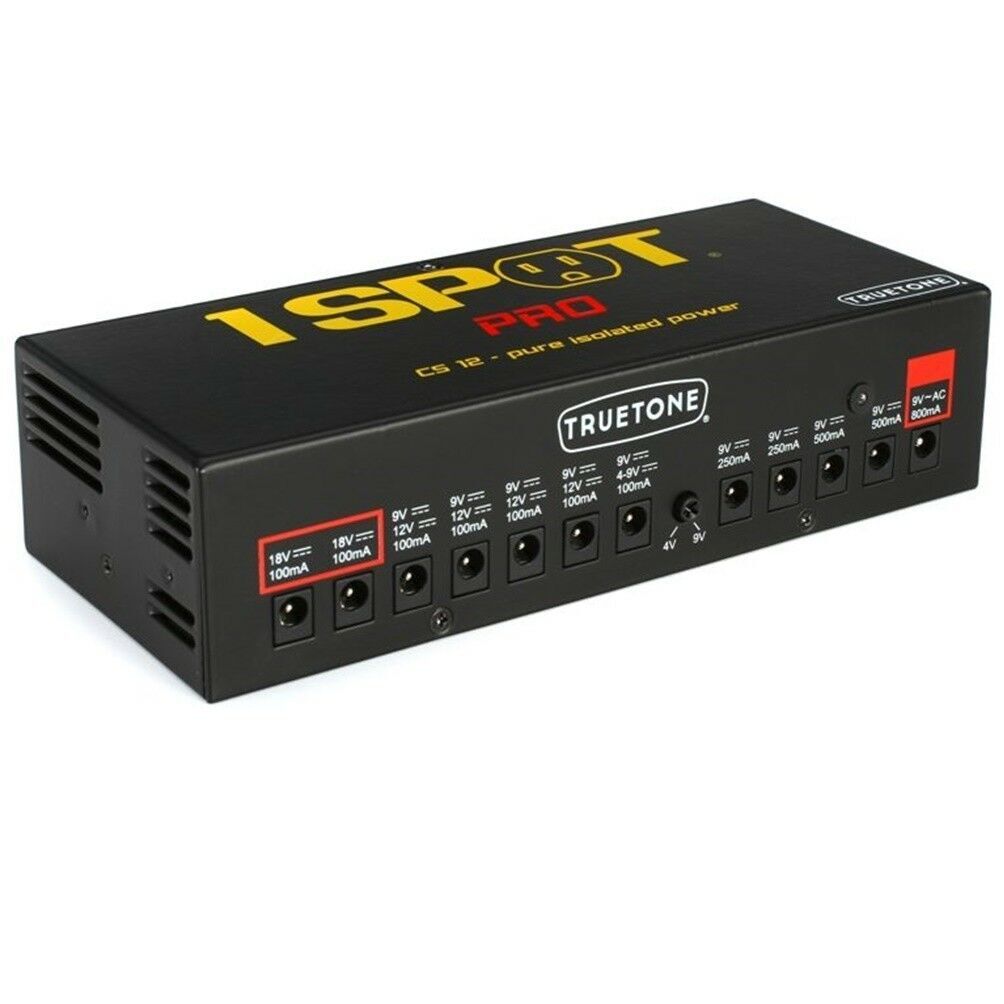

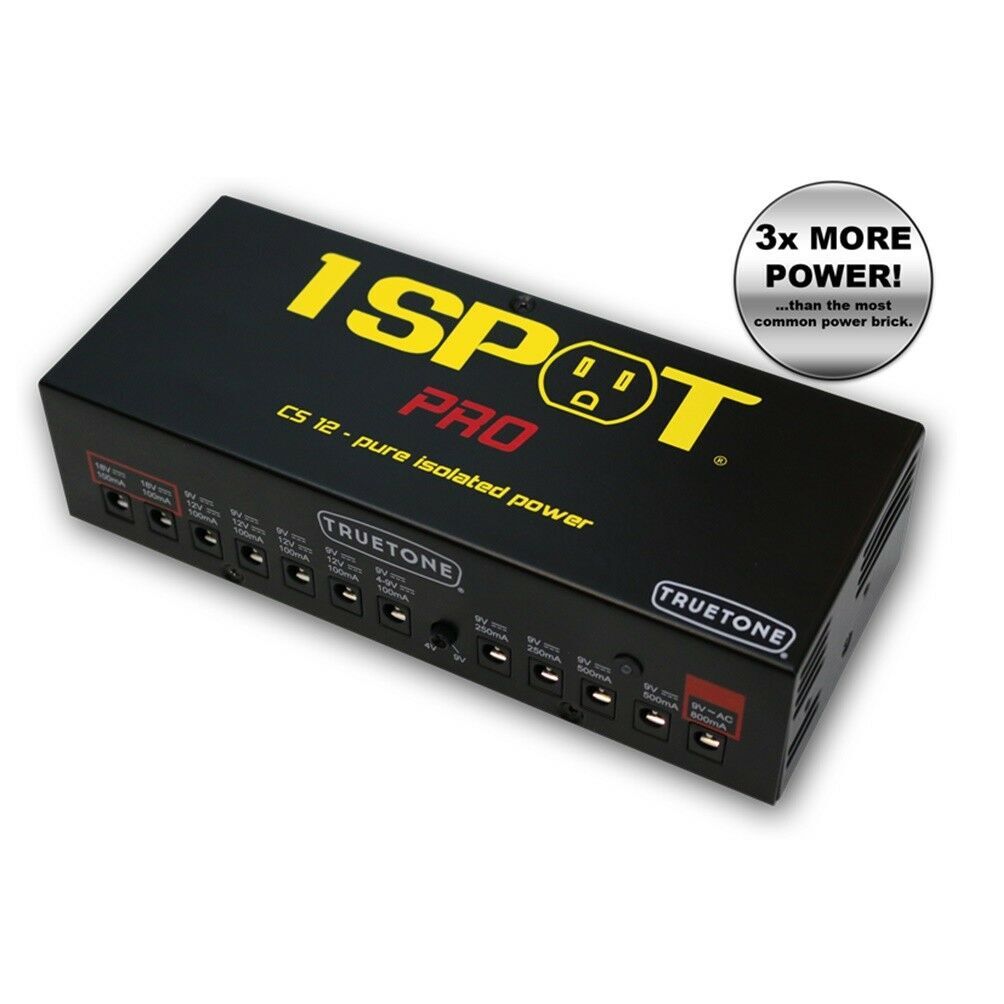

1 SPOT PRO CS12 Power Supply with 12 Isolated Outputs



Features



• Power brick for effects pedals

• Cables and converter plugs included for compatibility with virtually any effects pedals

• Mounting brackets for Pedaltrain pedalboards included

• Outputs are fully isolated to minimize noise

• Switchable input voltage for worldwide use

• Variable power helps you dial in the perfect tone with certain pedals

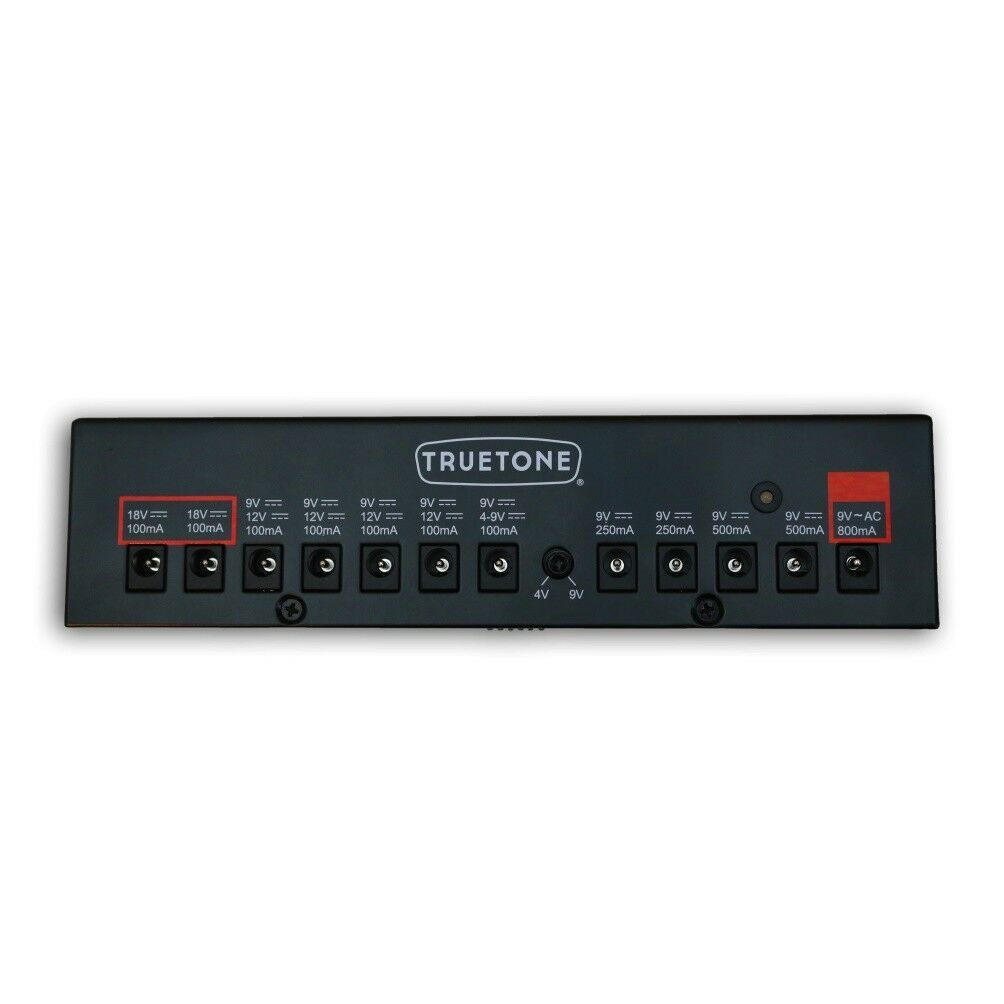

12 outlets total:

• 2 x 18-volt DC

• 4 x 9-volt DC

• 4 switchable 9-volt DC/12-volt DC

• 1 variable 4-volt DC to 9-volt DC

• 1 x 9-volt AC



Includes



Power Cables:

• 2 DC26 (5.5x2.1mm barrel plugs; 26" (660mm) - Purple

• 2 DC22 (5.5x2.1mm barrel plugs; 22" (559mm) - Blue

• 4 DC18 (5.5x2.1mm barrel plugs; 18" (457mm) - White

• 3 DC12 (5.5x2.1mm barrel plugs; 12" (305mm) - Yellow

• 1 AC21 (5.5x2.5mm barrel plugs; 21" (533mm) – Red



Please Note: All power cables are center pin negative polarity.



Converter Plugs:

• 1 CL6 - (5.5x2.1mm barrel input, 5.5x2.5 barrel output; reverse polarity) - Green (Line 6 DL4/M9 and some Eventide)

• 1 CYR - (5.5x2.1mm barrel input, 5.5x2.1 barrel output; reverse polarity) - Red (reverse polarity converter)

• 2 C35 - (5.5x2.1mm barrel input, 3.5mm male output; tip positive) - Black (3.5mm / 1/8" plug converter)

• 1 CBAT - (5.5x2.1mm barrel input, black battery clip output) (connects to batter clip wires inside pedals that do not have DC jacks)



Please Note: Do NOT connect to a battery.
