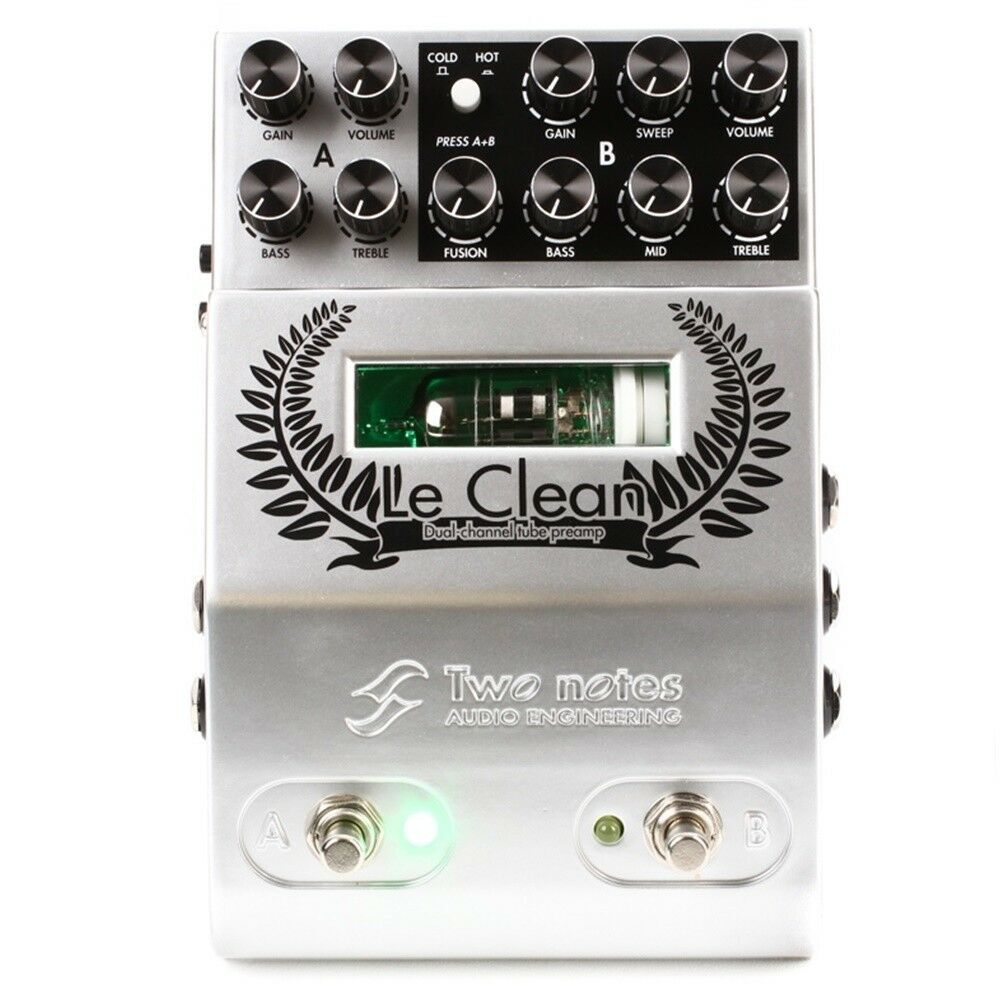

Two Notes Audio Engineering Le Clean Dual Channel Tube Clean Preamp Pedal



Features



• Two channels plus Fusion mode

• Cold Fusion

• Hot Fusion

• Switching & Multi-channel mode

• High-quality electronic design

• Integrated speaker simulation

• Comes with a 16 cabs license for Wall of Sound III

• Inspired from the classic amps of southern California in all shades of brown, black and silver.



Two channels plus Fusion mode

• A and B channels are totally independent.

• Each with their own voicing and eq section.



Channel A

• Bass and Treble on A.

• Lower gain tube stage with a pre-gain EQ using a more vintage design approach.

• Pure ultra clean texture.



Channel B

• Bass, Mid with Mid Sweep and Treble for B

• Offers more gain and a very powerful post-EQ (with mid sweep).

• Lets you bring in classic sweet overdrive of a dark desert highway.



Cold Fusion

• Two channels are in parallel, meaning you can blend the cleaner sound from A and your more distorted sound in B to gain clarity and articulation.

• Gets right to the heart of Texas.



Hot Fusion

• A and B are cascaded, meaning A can be used as a boost for B with both A and B EQ’s available to shape the result.

• Takes you out of the blue and into the gnarliest Tweed tones.



Switching & Multi-channel Mode

• Each preamp features 2 channel footswitches, A and B.

• Simultaneously pressing A and B will activate the Fusion mode.

• Pressing A, B or A and B will also send a specific Midi Program Change command, that can be used to select a preset on your Midi multi effects and/or Torpedo C.A.B..

• In addition, the preamplifier may respond to a Program Change sent from another Midi device allowing a seamless integration into any pedalboard switching system.



Connected via Midi, each preamp will listen to the others.

• They can be configured in Multi-channel mode: pressing A on preamp 1 will by- pass preamp 2, like the channels of an amplifier.

• Traditional on/off switching for all preamps, a preamp can be a boost/overdrive for the one that follows.



Integrated speaker simulation

• This analog speaker simulation is specifically voiced for your Le Preamp Model, and based on our Torpedo simulator.

• This speaker simulation affects the DI output and the Headphones output.



Connections

Le Preamp can be used in various configurations: as a traditional preamplifier, it can be connected to a power amplifier and cabinet, or in the Return input (or Power Amp In) of a guitar or bass amplifier. Placed before an amplifier, it acts as a boost, overdrive or distortion pedal. Alone or with the Torpedo C.A.B., it can also be an autonomous system, light and small, ready to be directly connected to a mixing board on stage as well as in the studio. By simply plugging your headphones, you can play silently. Connect it to your sound interface for perfect recordings using the Wall of Sound III.



5 basic functions can be accessed through MIDI Program Changes (PC) sent by an external MIDI device :

• Canal A

• Canal B

• Cold Fusion

• Hot Fusion

• Bypass



Le Clean comes with a 16 cabs license for Wall of Sound III

• WoS III is a speaker and miking simulation plugin.

• You can load on a track of your sequencer, such as Cubase, Logic, Pro Tools, Reaper, inside your Digital Audio Workstation.

• With your Le Preamp, Two notes gives you access to 16 virtual cabinets you can load in our award winning Wall of Sound III plugin.

• To download your 16 cabinets, register your product on the Two notes Website, download and install the Wall of Sound III (WoS III) plugin. You will be guided step by step through the process.



Tone control

• A channel : Passive Bass/Treble tonestack

• B channel : Passive Bass/Treble tonestack – Active Mid/Sweep control – Gain : -18 to +6 dB – Freq : 300Hz à 1.5kHz

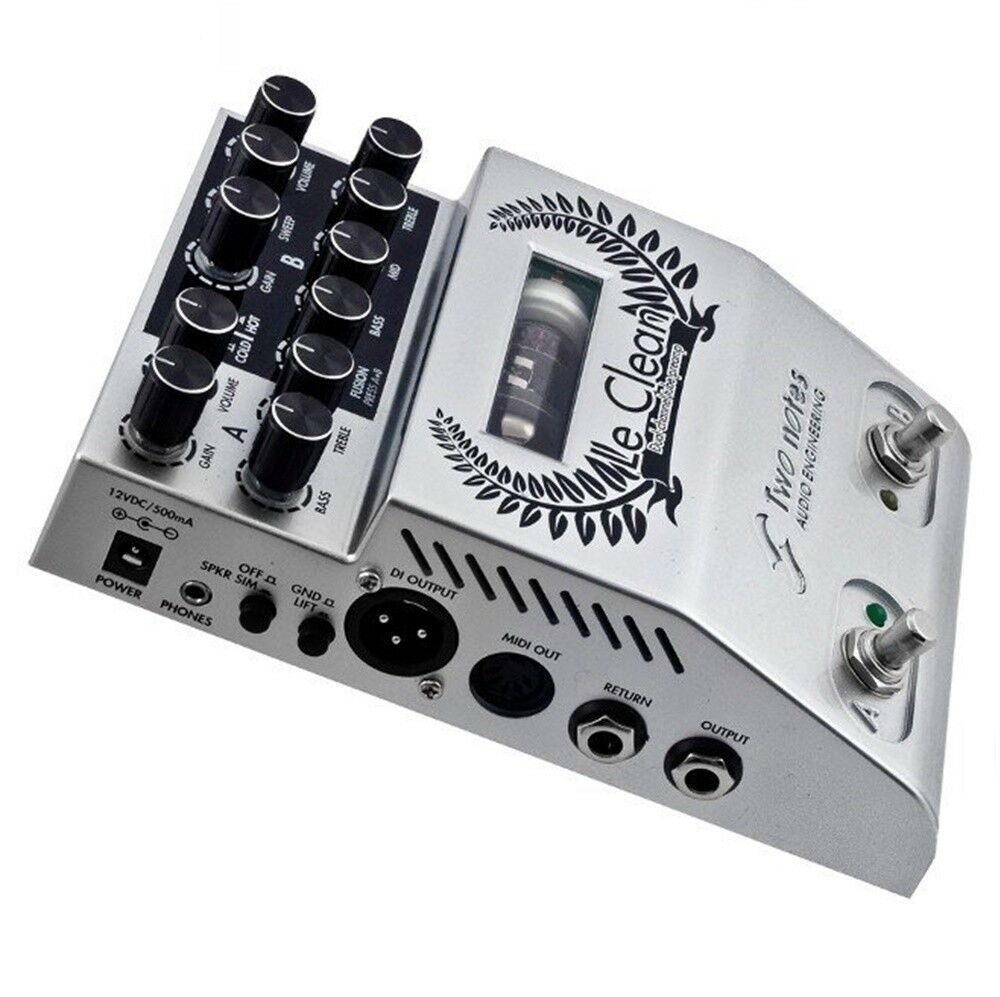

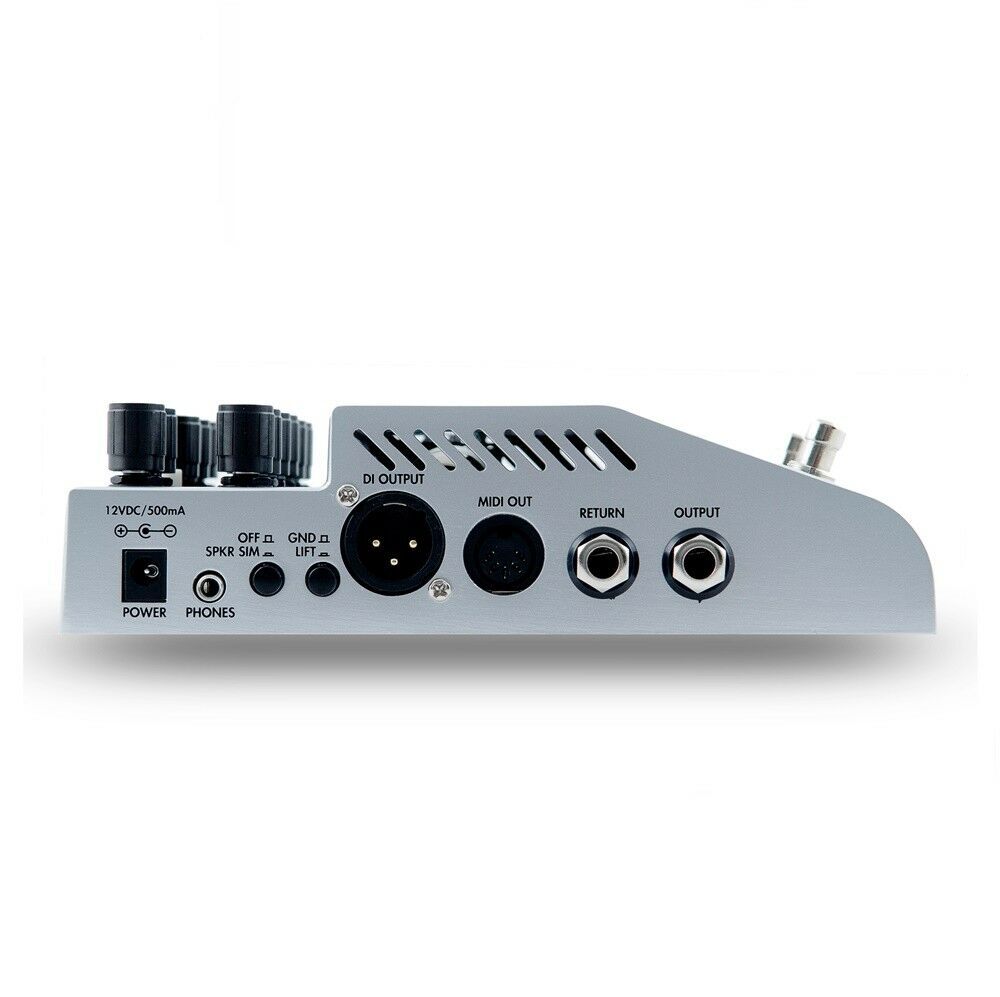

Input / Output

• Input : Jack 6.35 mm unbalanced (TS, Tip/Sleeve) – Impedance : 1 MOhms

• Return : Jack 6.35mm unbalanced (TS) – Max input level : 17 dBu – Impedance : 2,2 MOhms – Unbuffered, directly connected to Output when active

• Output : Jack 6.35 mm unbalanced (TS) – Max output level : 11 dBu – Impedance : 300 Ohms

• Thru : Jack 6.35 mm unbalanced (TS) – Unbuffered, directly connected to Inpu

• Send : Jack 6.35 mm unbalanced (TS) – Max output level : 11 dBu – Impedance : 300 Ohms

• DI Output : XLR, balanced – Impedance : 600 Ohms – Max output level : 10 dBu

• Phones : Jack 3.5 mm stereo (TRS, Tip/Ring/Sleeve)



Power

• Mains power adaptor DC Jack 2.1mm, negative center

• Input voltage : 12V DC

• Power consumption : approx. 6W

• Current draw : 500mA
