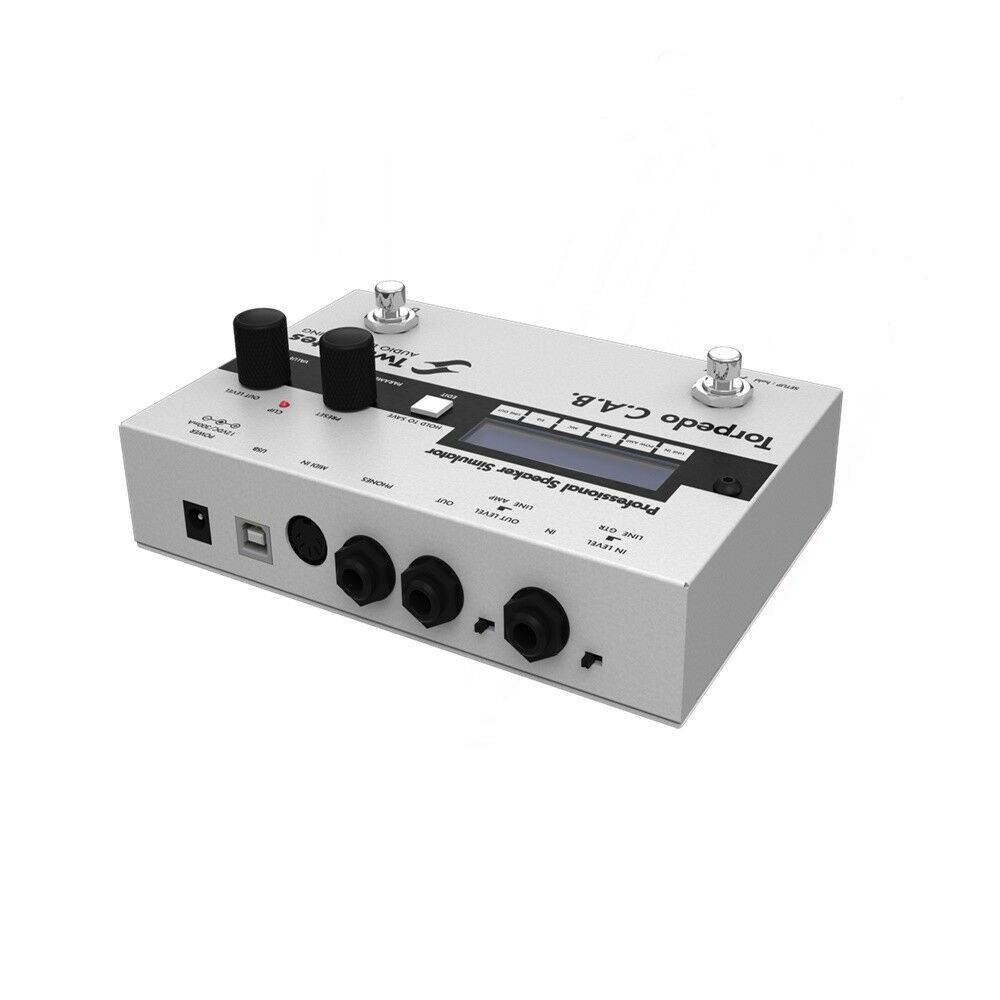

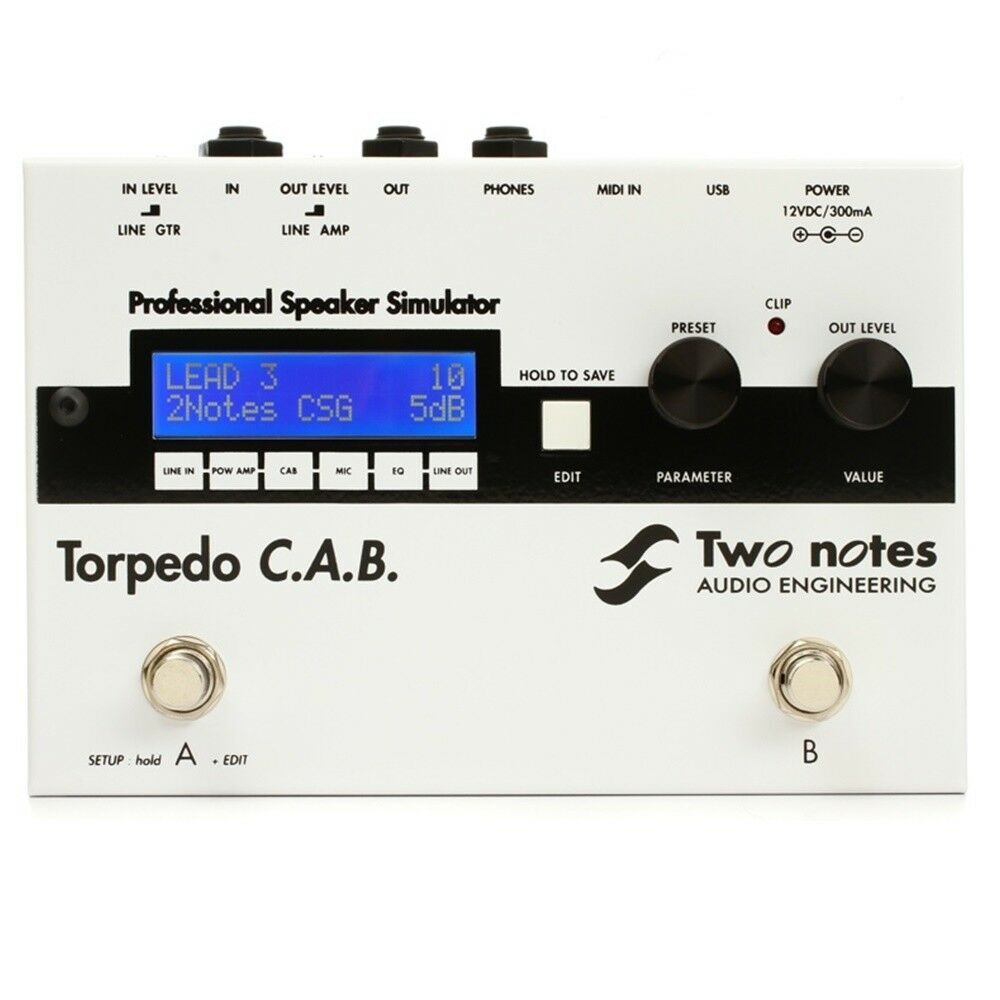

Audio Engineering Torpedo C.A.B. Speaker Simulator Guitar Amp Pedal



• High-end cabinet simulator in a stompbox format.

• Includes all the great features of the Torpedo Live, without the loadbox but with an input stage specifically tailored to accept pedal-level signals.

• Exclusive Torpedo technology

• Stompbox-style Torpedo

• 2 User-assignable footswitches

• Arcade or Simulation mode



Exclusive Torpedo Technology

• Highly realistic speaker simulation is achieved by use of convolution.

• Two notes started from that technology and brought it much further, to accurately reproduce the characteristics of the whole miking chain (speaker, microphone, preamplifier, studio room acoustic).

• Reproduces the tiniest variations of a cabinet behaviour (such as its frequency response).

• Move the microphone in the virtual studio room thanks to the Torpedo IR synthesis.



Stompbox-style Torpedo

• Place it at the end of your effect chain and all need to carry your amp will be gone.

• Plug it into the PA and you will be ready to go with a great sound.

• Torpedo C.A.B. is the very first stompbox-style Impulse-Response Loader.



2 Assignable Footswitches

• User-assignable footswitches.

• Assignable functions include Preset selection, Bypass, Mute, EQ On/Off and more.



Power Amp Simulation

• Connect your preamplifier directly to the Torpedo C.A.B. and take advantage of our exclusive tube power amp simulation.

• Select a type of amplifier and its characteristics, a tube model, and make your preamp sing.



Applications

• Control your Torpedo & access the Two notes Boutique.

• Torpedo Remote will give you access to all parameters on your Torpedo, including loading and saving presets, loading new IRs, and updating the unit’s firmware.

• You can pick any speaker cabinets from the Two notes Store, preview them on your own tracks in real time, and choose to buy the ones you prefer.



Arcade or Simulation mode

• Arcade - Start with the Arcade preset mode to get more familiar with the concept of virtual miking.

• Simulation - Not for beginners and requires more experience, Gains access to the full list of parameter, to fine tune your sound and make it perfect to your ears.



Connections

• Takes place on a pedalboard, after a preamp, among your usual stompboxes.

• Best results are achieved by placing it before the time-based and modulation effects (chorus, delay, reverb…), which then become brighter and clearer.

• This position also allows to take advantage of the possible stereo of these effects.



Input / Output



• GTR/LINE Input: 1/4″ Jack balanced (TRS, Tip/Ring/Sleeve)

• Max level: 4,7 dBu (GTR) / 10,3 dBu (LINE)

• Impedance : 100 KOhms (GTR) / 10 KOhms



• (LINE)AMP/LINE Output: 1/4″ Jack balanced (TRS)

• Max level: 10 dBu (AMP) / 16 dBu (LINE)

• Impedance : 470 OhmsPhones: 1/4″ Jack stereo (TRS)MIDI input USB connector



Digital audio

• 24 bits / 96 kHz converters

• Bandwidth (-1dB): 12Hz – 19 kHz

• Signal/Noise ratio: > 95 dB

• Internal processing at 32 bits

• Latency: 1.7 ms (Line Input to Line Output)



Power

• Mains power adapter: DC Jack 2.1mm, negative center

• Input voltage: 12V DC

• Power consumption: approx. 3.6W

• Current consumption: 300mA



Dimensions & weight

• Width x depth x height: 178 x 127,8 x 58,3 (mm)

• Weight: 750 g
