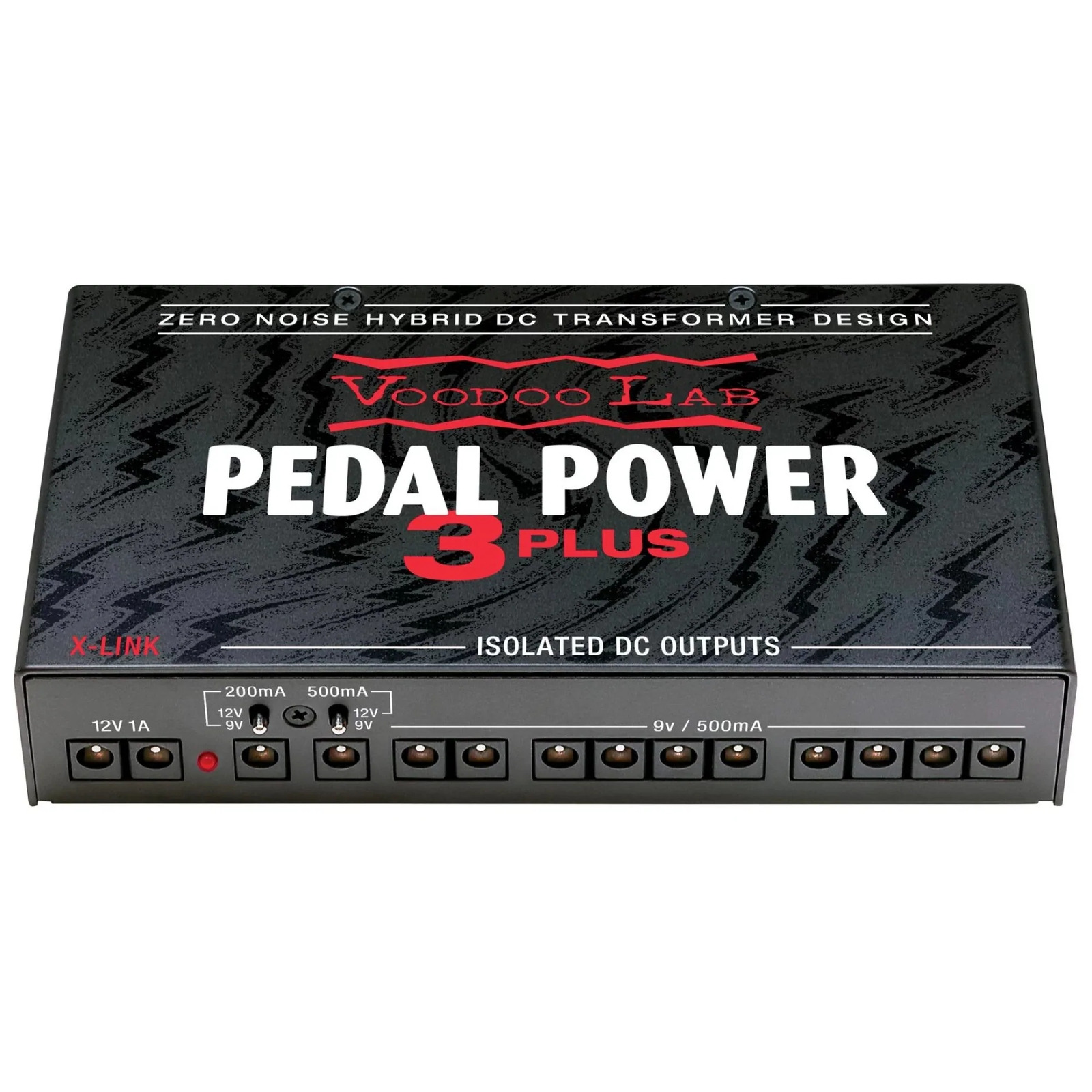

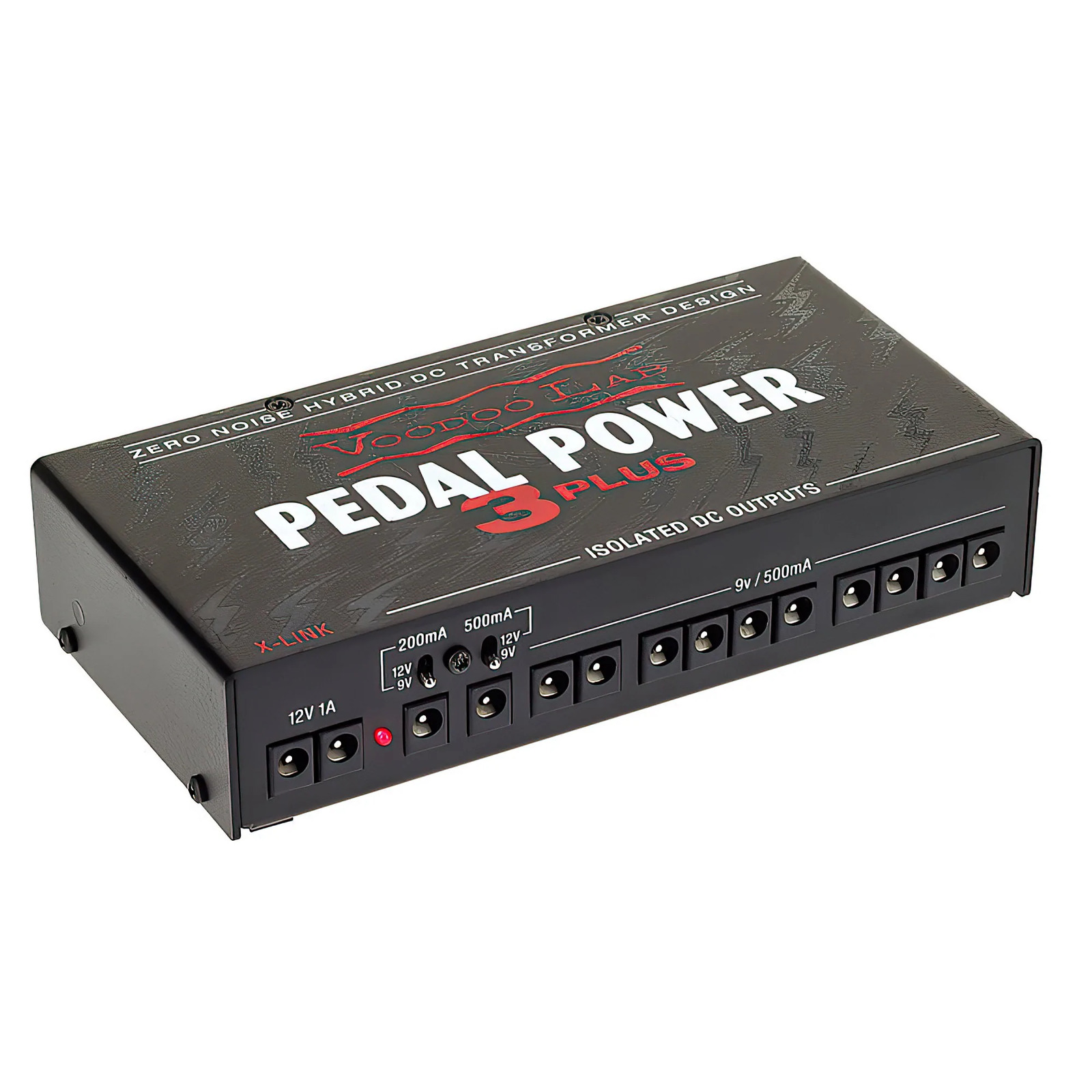

Hybrid Pedalboard Power Supply with 12x Isolated 500mA Outputs

The Voodoo Lab Pedal Power 3 PLUS fuses noise-free linear regulation with advanced hybrid DC transformer topology to bring you 12 isolated DC outputs of extremely quiet, high-current pedal tonic — expandable to 28 outputs using VL's X-Series expansion modules*. The Pedal Power 3 PLUS comes in at a reduced size and lighter weight than previous models and boasts lower noise and a more linear response than the competition. What's more, the Pedal Power 3 PLUS's international switching gives you rock-solid performance on stages all over the world; as long as your input voltage stays between 100V and 240V, this pedalboard power supply has you covered. You also get two outputs of switchable, linkable 9V/12V operation — so whether you're running standard 9V stomps, a modern 18V compressor, or a vintage 24V delay**, you're on your way to building the board of your dreams with the Voodoo Lab Pedal Power 3 PLUS.

Zero-Noise Hybrid Design

The Voodoo Lab Pedal Power 3 PLUS sets new benchmarks for noise, current, and weight. The secret lies in Voodoo Lab's hybrid DC transformer design. It outputs an extremely linear DC charge that, thanks to its 80-nanosecond polarity reversal, is nearly noise-free out of the gate. And that's before its advanced computer-optimized filtering. A premium analog signal path comprised of large ceramic capacitors and organic polymer filters ensures you get top performance from all your stomps: your high-draw digidelays to your old-school fuzz boxes.

High-Current 500mA Outputs

Yesterday's pedal power supplies won't cut it for today's current-hungry modern digital stomps and modeling FX. That's why every outputs on your Pedal Power 3 PLUS is rated to deliver up to 500mA of current. So even if you've got a board full of Strymon and Source Audio stomps, the Pedal Power 3 PLUS won't buckle under pressure. Play vintage stomps? No problem. Each outputs only serves your pedals the current they need, so there's no risk of overloading.

X-LINK Expansion Ports

Right out of the box, the Pedal Power 3 PLUS gives you 12 isolated DC outputs. That's plenty for most travel and stage boards. But even if down the road you expand and need more outputs, the Pedal Power 3 PLUS has you covered. Two X-LINK outputs allow you to connect X-Series expansion modules, such as the X4 and X8, without plugging in additional wall power. Add two X8s, and you've got 28 outputs to feed the hungriest full-service boards!

9V–24V Operation

By combining the onboard 9V and 12V DC outputs, you've got the voltage you need to support standard 9V stomps as well as less-common 12V, 18V, and 24V FX.

Worldwide compatibility

Even better, the Pedal Power 3 PLUS gives you fuss-free performance anywhere you're likely to play out. Touring domestically or rockin' across the pond, the latest Voodoo Lab Pedal Power has you covered for any performance application.

  • The smallest, lightest, and most capable Pedal Power so far
  • Hybrid DC transformer design supplies 12x galvanically isolated 500mA DC outputs
  • 2x voltage selector outputs give you 500mA @ 12V or 200mA @ 9V
  • Extremely quiet — virtually zero noise
  • Lightweight Low profile — perfect for pedalboard mounting
  • Serves 9V, 12V, 18V, and 24V pedals
  • Universal switching (100V–240V) delivers international performance
  • X-LINK expansion ports let you add additional outputs via the Pedal Power X4 and X8
  • Each unit handmade in the USA
  • Backed by a 5-year manufacturer warranty
  • Includes DC power cable kit and detachable IEC
  • Dimensions: 7"W x 3.4"L x 1.5"H
  • Weight: 1 lb.
SKU VLPP3P
Barcode # 813140001321
Brand Voodoo Lab
Shipping Weight 1.3300kg
Shipping Width 0.230m
Shipping Height 0.050m
Shipping Length 0.270m
Shipping Cubic 0.003105000m3
Unit Of Measure ea
