Value-packed Recorder for Filmmakers and Sound Designers

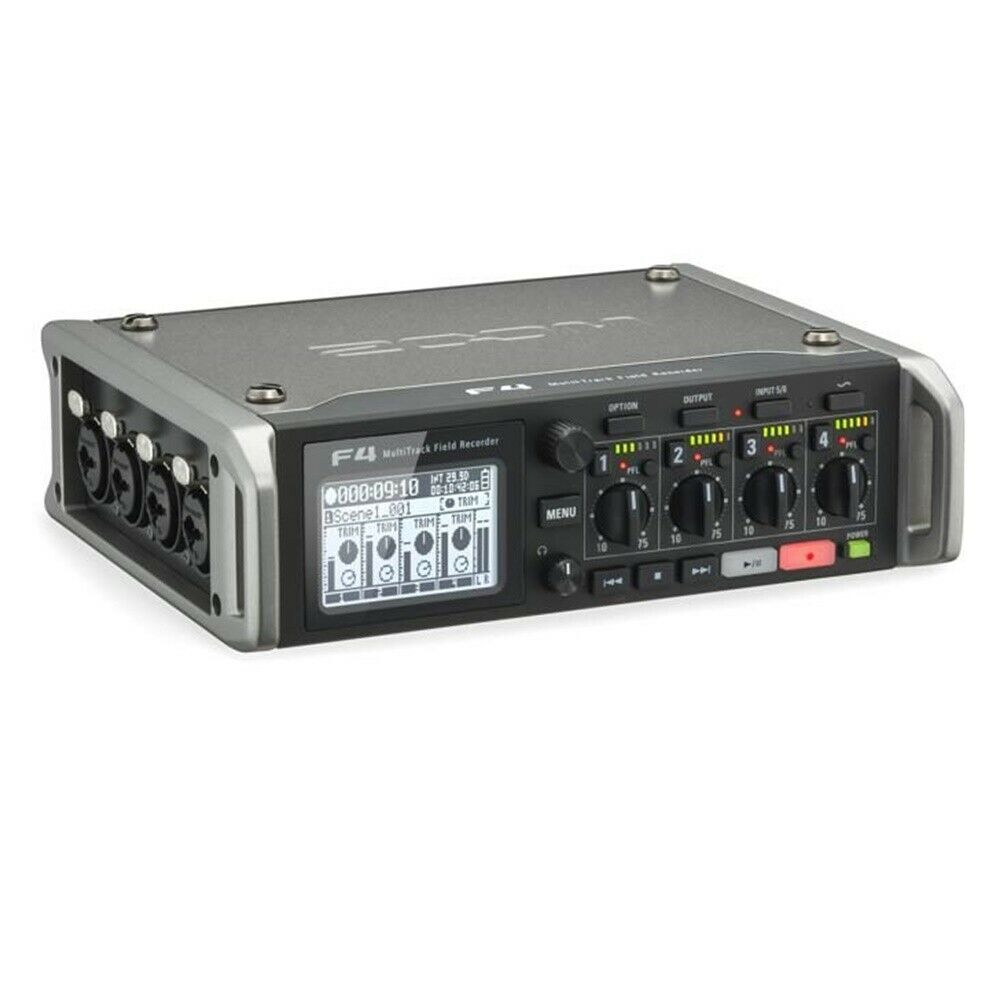

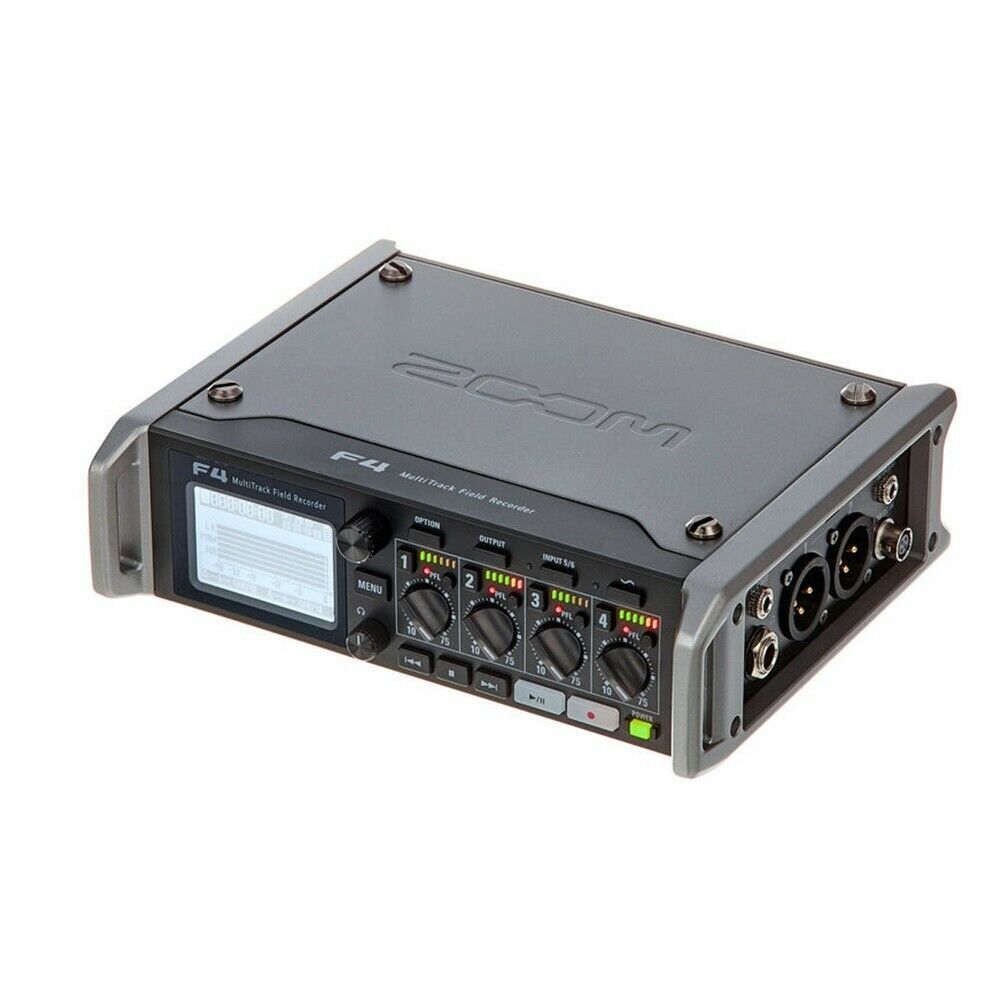

The Zoom F4 Multitrack Field Recorder is an outstanding portable recorder on a budget, ideal for serious filmmakers and sound designers. Four super low-noise preamps record at up to 24-bit/192kHz resolution to give you the highest-quality audio for any project, with precision audio/video synching thanks to ultra-precise Temperature Compensated Crystal Oscillator (TCXO) clocking. A large LCD display and dedicated gain knobs and PFL/Solo switches for each channel make the F4 easy to operate in any situation. This compact unit also boasts BNC Time Code I/O, onboard limiters, and much more. You'll be able to capture world-class audio with Zoom's powerful F4 Multitrack Field Recorder.

Zoom F4 Multitrack Field Recorder at a Glance:

  • Flexible input and output options for any situation
  • Capture takes with confidence, with dual-channel recording mode
  • Monitor your audio your way

Flexible input and output options for any situation

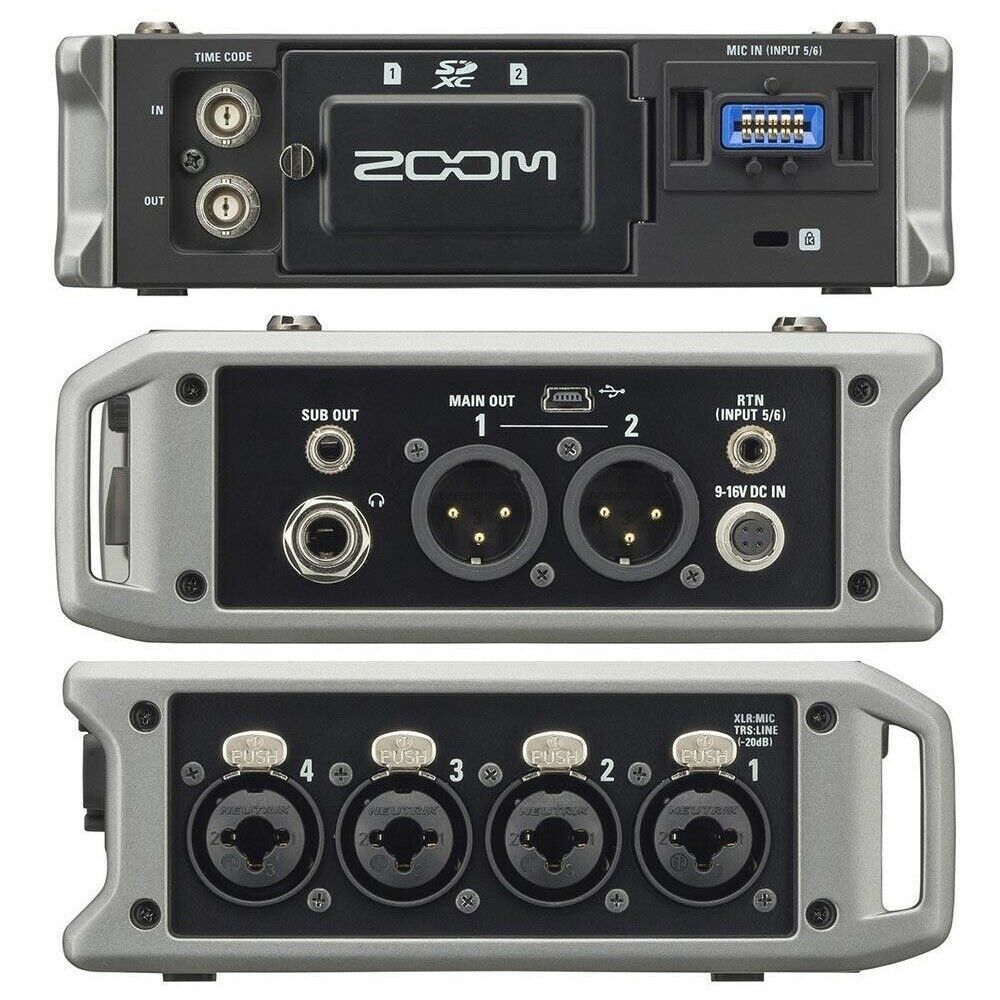

One of the things that makes the Zoom F4 Multitrack Field Recorder a field-recording workhorse is its extensive I/O designed with filmmakers and sound designers in mind. On the body of the F4 alone, you'll find four locking Neutrik XLR/TRS combo jacks, each with its own gain control, 6-segment LED level meter, and PFL/Solo button. These inputs let you connect anything from phantom-powered condenser microphones to line-level sources. Cooler still is the F4's modular expansion port, which lets you connect any of Zoom's acclaimed mic capsules. Read all about them in our Zoom Capsule Buying Guide. As for monitoring, the F4 offers both a line and a headphone out. We can confirm the Zoom F4 Multitrack Field Recorder has the functionality and I/O you need for a wide range of field recording applications.

Capture takes with confidence, with dual-channel recording mode

Enable dual-channel recording mode on the Zoom F4 to create "safety tracks" for inputs 1 and 2. These safety tracks can have their own settings for level, limiting, delay, phase inversion, and highpass filtering. When capturing a take is absolutely crucial, you need to know without question that you're recording quality audio, and the Zoom F4's dual-channel recording mode makes that possible.

Monitor your audio your way

When you need to hear your audio in the field, you'll appreciate the powerful and flexible monitor section of the Zoom F4 Multitrack Field Recorder. It's important to check your levels on the fly when you're filming or sampling audio. You can easily monitor single tracks or multiple tracks via easy-to-use front-panel controls and a convenient 1/4" headphone output. Menu controls let you route audio to your left or right headphone channel, pre- or post-fader, or even mono. The powerful 100mW headphone amp has enough volume for even the noisiest situations. There is also a set of XLR outputs for sending audio to your studio monitors. The Zoom F4 Multitrack Field Recorder will help you make the most of your recording time with its comprehensive monitoring solutions.

Zoom F4 Multitrack Field Recorder Features:

  • A professional 6-in/4-out field recorder
  • 4 XLR/TRS combination inputs with microphone preamps and phantom power (+24/+48V) accommodate most analog connections
  • Gain knobs and PFL buttons for each input make setting levels fast and easy
  • Track professional Broadcast Wave Format (BWF) multitrack audio at up to 24-bit/192kHz
  • Records onto 2 SD/SDHC/SDXC storage media cards with up to 512GB capacity
  • Headphone and line-level outputs provide stereo sound for monitoring and playback
  • Compatible with all of Zoom's mic capsules
  • Large LCD display makes navigation and setup extremely easy
  • Runs on either 8 AA batteries, 12-volt adapter, or DC battery packs via 4-pin Hirose connector
  • Includes camera mount adapter, 12-volt power adapter, DHC-1 DC-HIROSE cable, and Cubase LE/WaveLab LE download codes

Tech Specs

  • Audio Interface:Yes
  • A/D Resolution:Up to 24-bit/192kHz
  • Simultaneous Rec Tracks:6
  • Simultaneous Play Tracks:4
  • Analog Inputs:4 x XLR-1/4" combo, 1 x 1/8" (line in/camera return), 10-pin Zoom capsule input
  • Analog Outputs:2 x XLR, 1 x 1/8" (sub out)
  • Headphones:1 x 1/4"
  • Memory (removable):2 x SD card slots (SD, SDHC, SDXC)
  • USB:1 x Type Mini-B
  • Power Supply:8 x AA batteries / External DC battery pack / 12V AC adapter with Hirose cable
  • Battery Life:2 trk @ 16/48kHz (9.5 hours Alkaline, 17.5 hours Lithium); 8 trk 24/192kHz (2 hours Alkaline, 3.5 hours NiMH, 6 hours Lithium)
  • Stand Mountable:Built-in tripod mount
  • Height:2.1"
  • Width:7.0"
  • Depth:5.5"
  • Weight:2.27 lbs.
  • Manufacturer Part Number:ZF4



SKU ZF4
Barcode # 4515260016952
Brand Zoom
Unit Of Measure ea
